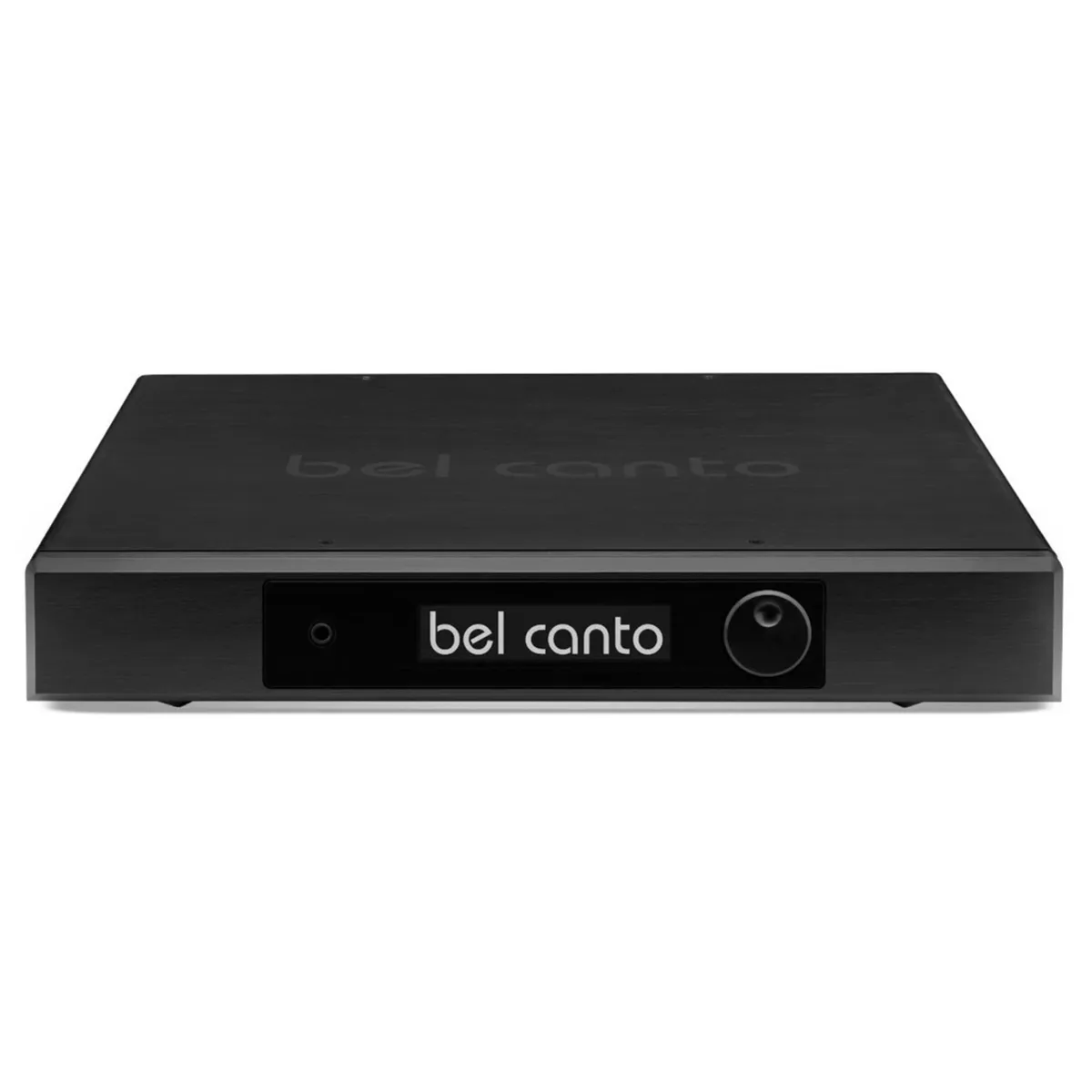

E1X DAC / Control Preamplifier
The E1X DAC / Control Preamplifier is a high-performance digital and analogue hub designed to deliver uncompromised sound from every source. Built on Bel Canto’s Advanced Integrated Platform (AIP), it combines cutting-edge DAC technology, flexible connectivity, and precise control—making it the centrepiece of a modern high-end system.
At its core is the proprietary HDR-II DAC and AMiP (Asynchronous Multi Input Platform), ensuring every input is optimised, re-clocked, and processed with ultra-low noise and exceptional accuracy. Whether streaming, playing CDs, or connecting analogue sources, the E1X preserves detail, clarity, and dynamic impact.
With full system control, streaming capability, and an integrated phono stage, the E1X offers a complete solution for both digital and analogue playback.
Key Features:
- HDR-II DAC core with 126dB dynamic range and ultra-low distortion (<0.001%)
- Asynchronous Multi Input Platform (AMiP) for optimal signal handling
- Full system control preamplifier with precision volume adjustment
- Roon Ready network streaming capability
- Built-in MM/MC phono stage with programmable settings
- High-quality headphone amplifier (32 ohm capable)
- Custom time-optimised filters for improved clarity and dynamics
- Ultra-low noise master clock to eliminate jitter
- App control via SEEK (iOS) or MConnect (Android)
- Fully programmable display with auto-off function

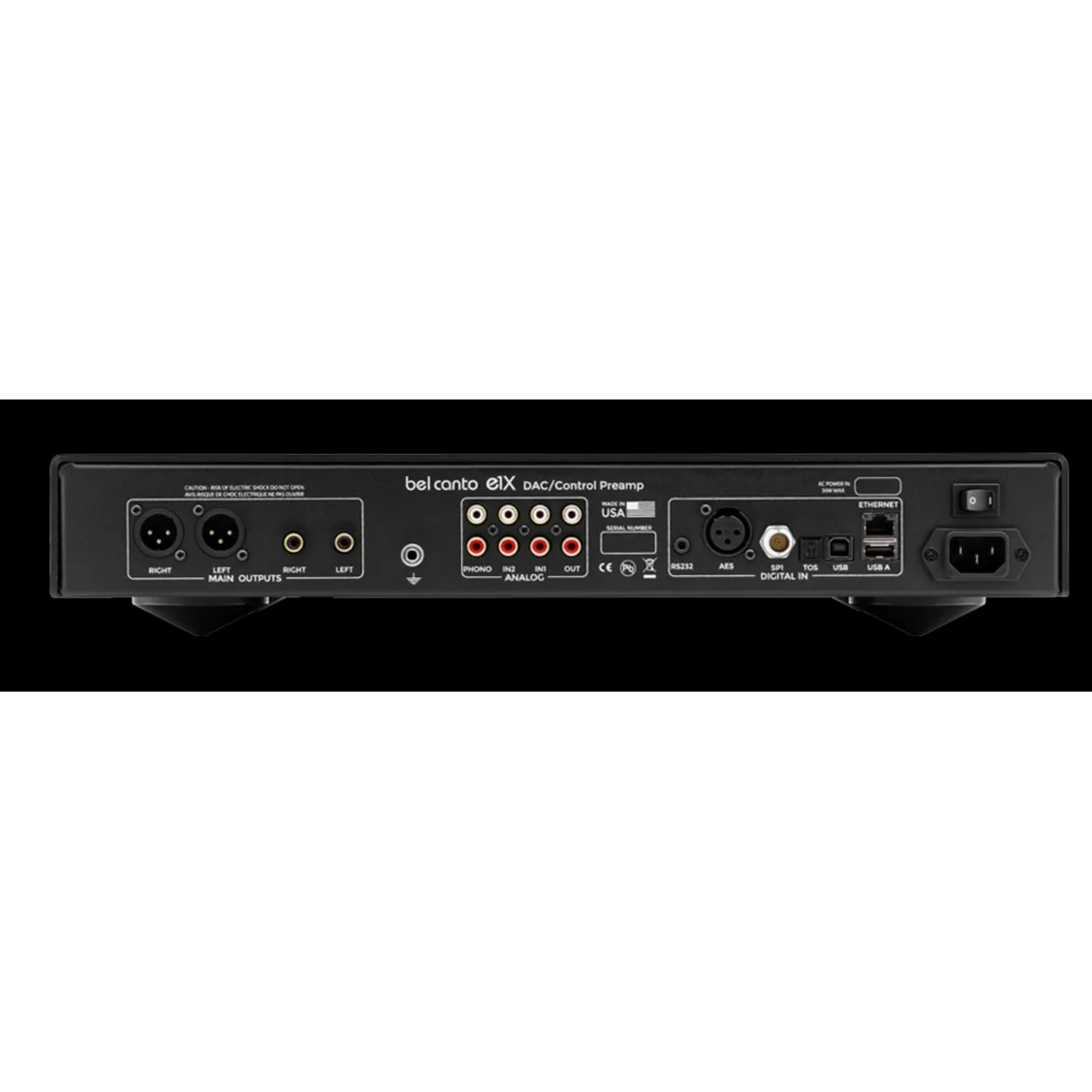

Connections:
- Digital Inputs: Ethernet, USB-A, USB-B, AES, Coaxial (RCA), Optical
- Analogue Inputs: Line-level + MM/MC phono input
- Outputs: Balanced and unbalanced line outputs, subwoofer output
- Headphone Output: Front-mounted 6.3mm jack
- Control: IR remote, RS232 for system integration
Format Support:
- High-resolution audio up to 24-bit/192kHz (network/USB-A)
- USB-B: up to 24-bit/384kHz, DSD128 (DoP)
- SPDIF inputs: up to 24-bit/192kHz
- Supports MQA, DSD, and a wide range of PCM formats
Performance & Design:
- Fully balanced DAC architecture with asynchronous re-clocking
- Ultra-low noise power and clock design for maximum signal purity
- Programmable gain matching for analogue inputs
- Stable, precise signal processing for all connected sources
What’s Included:
- E1X DAC / Control Preamplifier
- Remote control
- Power cable
- Manufacturer packaging
Note: Designed as a central control hub for both digital and analogue systems. Compatible with a wide range of sources and streaming platforms for maximum flexibility.
