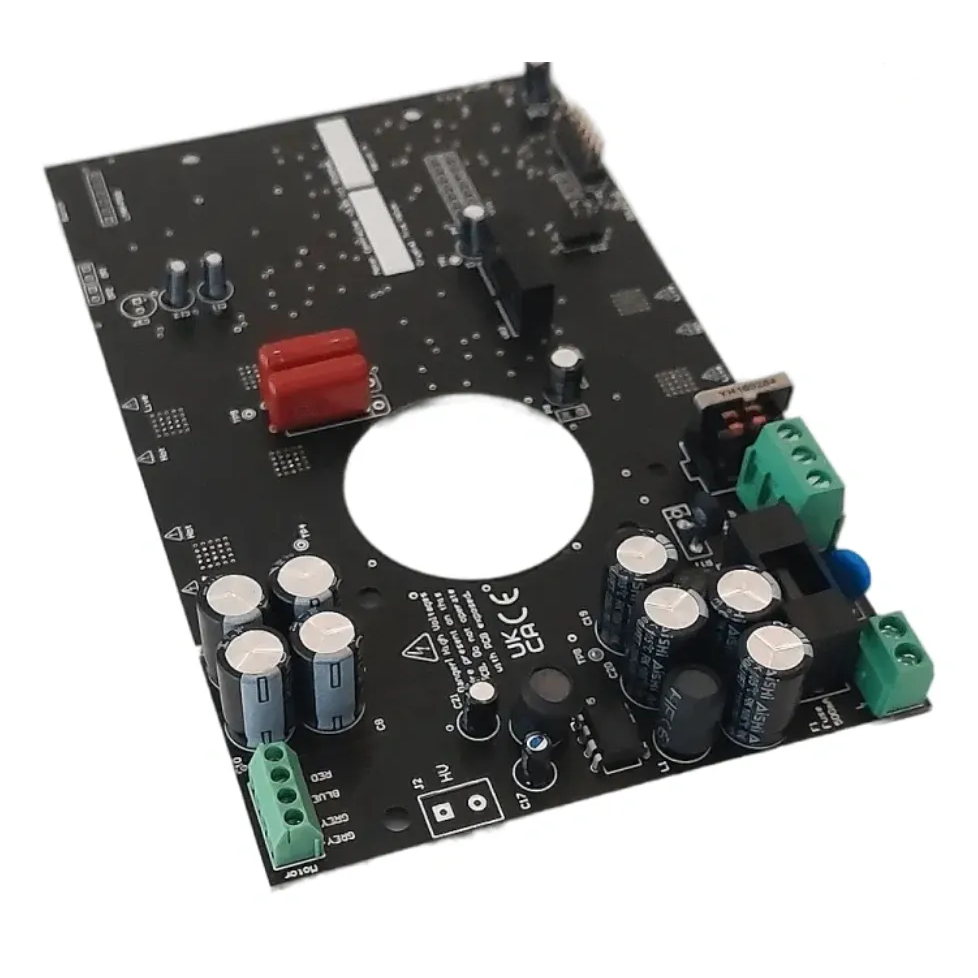

Minos Turntable Speed Controller
The Minos Turntable Speed Controller is a precision upgrade designed for turntables using motor control boards such as Linn Valhalla, Hercules, Lingo, and Mose. It can also power single motor asynchronous 110V turntables, delivering improved speed stability and overall performance.
Many turntables do not run accurately at 33.33 rpm, often drifting significantly. The Minos controller corrects these variations, resulting in tighter timing, improved rhythm, and a more stable soundstage.
Designed, assembled, and tested in the UK, the Minos is microprocessor-controlled and fully CE and UKCA approved. It generates a highly accurate pure sine wave output, ensuring smooth and consistent motor drive.
The unit allows adjustment of key motor parameters such as frequency, phase angle, and voltage amplitude via a USB serial interface. These settings can be fine-tuned for optimal performance and stored in EEPROM.
The Minos is designed to fit directly onto the original Linn Valhalla mounting and is compatible with upgrades such as the Linn Karousel bearing. It can also be installed in other turntables such as the Linn Axis (soldering required).
Key Features:
• Turntable speed controller upgrade for Linn Valhalla, Hercules, Lingo, Mose
• Compatible with single motor asynchronous 110V turntables
• Microprocessor-controlled operation
• Electronic switching between 33.3 rpm and 45 rpm
• High-efficiency, low power consumption design
• Upgradeable to Zeus controller
• Designed, assembled, and tested in the UK
• CE and UKCA approved
• Fits original Linn Valhalla mounting
• Compatible with Linn Karousel bearing
• Installation service available
Technical Highlights:
• Frequency accuracy controlled to 0.001 Hz
• Stable and consistent motor drive
• Adjustable motor parameters via USB serial interface
• EEPROM storage for saved configuration
• Reduced motor noise and vibration
• Configurable auto start and sleep functions
• Class A motor drive circuitry with reduced heat output
Specification:
• Motor Compatibility:
– 110V synchronous motors (Linn, Premotec, Philips, Airpax etc)
• Frequency Output: 50 Hz or 67.5 Hz
• Frequency Accuracy: 0.001 Hz
• Power Supply: 110V – 230V, 50/60 Hz
• Mounting: Linn Valhalla compatible
What’s Included:
• Minos Turntable Speed Controller
• Documentation
Note:
220V version supplied as standard unless otherwise specified.
Installation service available at the Spinning Room showroom in Leeds for £99.
This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the Minos controller in person.
