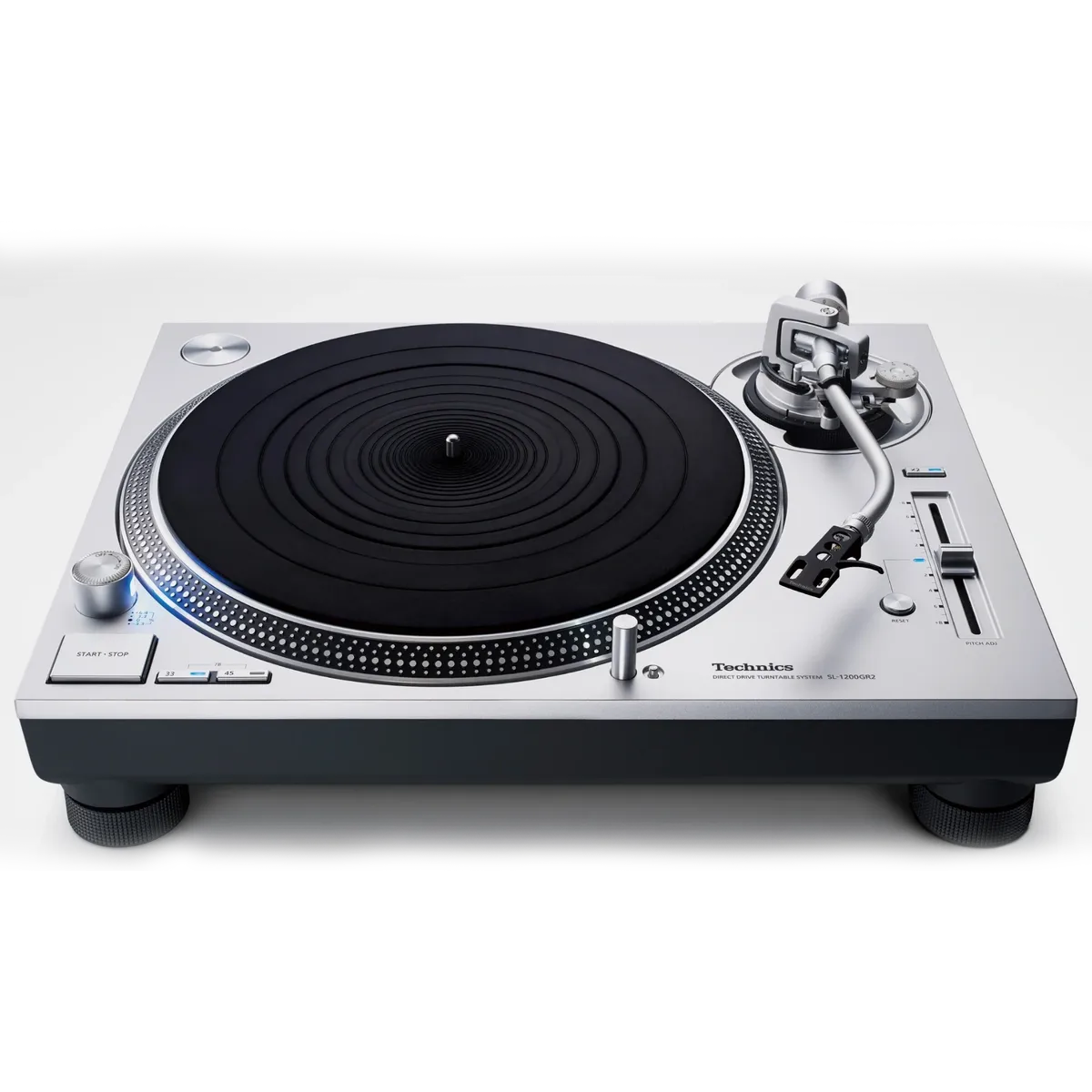

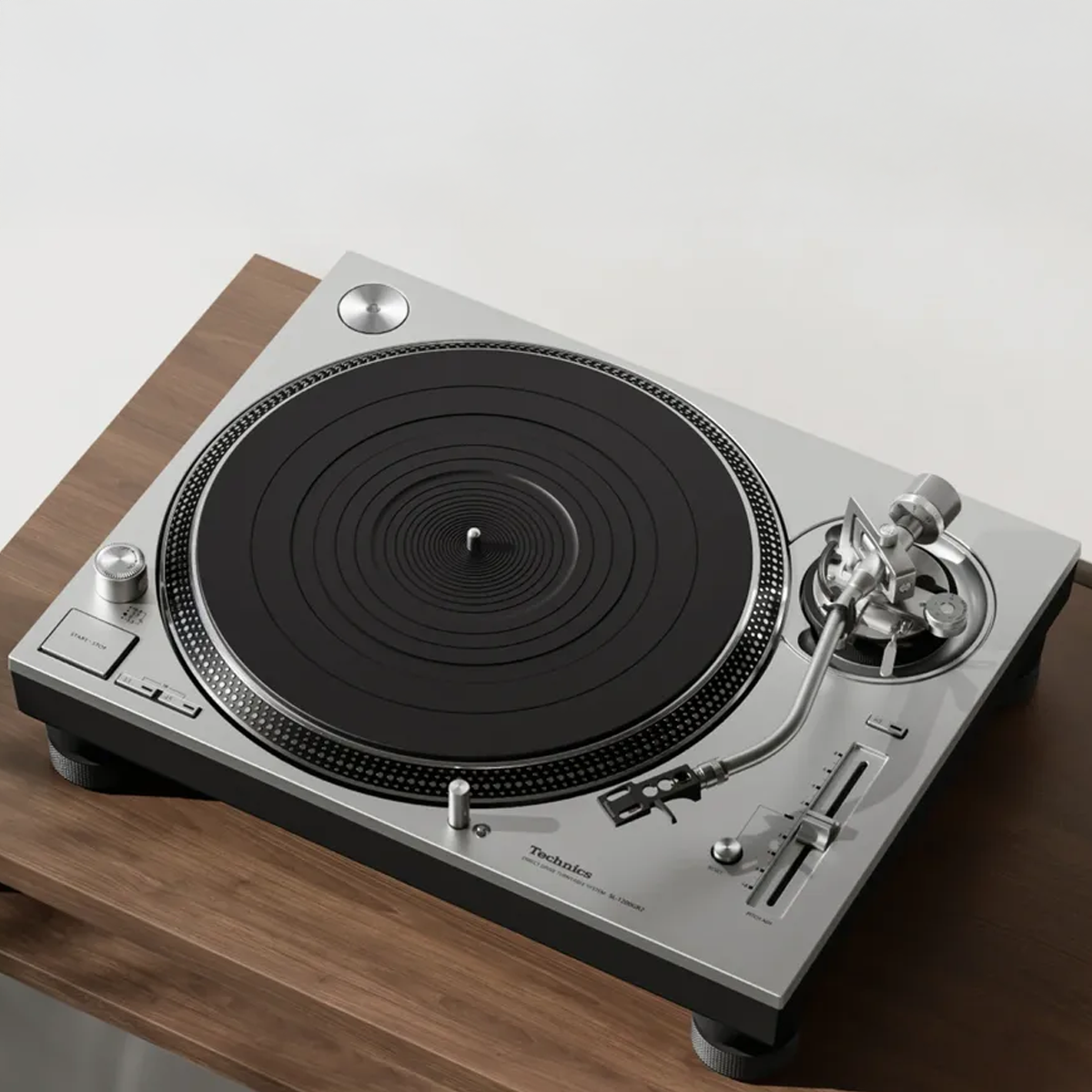

Technics SL-1200 GR2 direct drive turntable

Technics SL-1200GR2 Direct Drive Turntable

The Technics SL-1200GR2 continues a legacy that began in 1970 with the introduction of the world’s first direct drive turntable. Building on decades of innovation, this latest model incorporates advanced motor technology and precision engineering to deliver exceptional rotational stability, reduced vibration, and outstanding analogue performance.

At its core is a single-rotor, surface-facing, coreless direct drive motor, evolved from designs used in models such as the Technics SL-1200GR turntable. This eliminates cogging and ensures smooth, accurate rotation for precise playback.

A major advancement is the introduction of the ΔΣ-Drive (Delta Sigma Drive), a breakthrough motor-drive system that uses advanced PWM signal processing to suppress high-frequency harmonics and reduce motor-induced vibrations. This results in quieter operation and a more refined, stable musical presentation.

The high-speed switching power supply further enhances performance by minimising ripple and electrical noise, maintaining signal purity without the need for bulky transformers.

The platter features a two-layer construction with an aluminium die-cast base and full-surface damping rubber, increasing rigidity and reducing resonance. At approximately 2.5 kg, it offers greater inertial mass than previous models, contributing to improved rotational stability and reduced vibration.

The classic Technics S-shaped tonearm is retained, constructed from lightweight, rigid aluminium and mounted using a high-precision gimbal bearing system. Hand assembly and adjustment ensure extremely high initial-motion sensitivity, allowing accurate tracking of record grooves.

The chassis uses a two-layer construction combining aluminium die-cast and BMC materials for enhanced rigidity, while high-damping silicon insulators reduce external vibrations and improve long-term reliability.

Key Features:

• Coreless direct drive motor for precise, stable rotation

• ΔΣ-Drive system to reduce motor vibrations and noise

• High-speed switching power supply for clean, stable power

• Two-layer platter with increased mass and damping

• Classic S-shaped tonearm with high-precision gimbal bearings

• Hand-assembled tonearm for high sensitivity and accuracy

• Rigid two-layer chassis construction

• High-damping silicon insulators for vibration isolation

• Wide cartridge compatibility with included auxiliary weight

Technical Specifications:

• Type: Direct Drive Turntable

• Motor: Brushless DC motor

• Speeds: 33⅓, 45, 78 rpm

• Pitch Adjustment: ±8% / ±16%

• Starting Torque: 2.2 kg·cm

• Start-Up Time: 0.7 seconds to 33⅓ rpm

• Wow and Flutter: 0.025% W.R.M.S.

• Platter:

  • Aluminium die-cast

  • Diameter: 332 mm

  • Weight: Approx. 2.5 kg (including rubber mat)

• Tonearm:

  • Type: Static balance

  • Effective Length: 230 mm

  • Overhang: 15 mm

  • Offset Angle: 22°

  • Tracking Force Range: 0 – 4 g

• Cartridge Compatibility:

  • Without auxiliary weight: 5.6 – 12.0 g

  • With auxiliary weight: 10.0 – 16.4 g

• Outputs:

  • PHONO x1

  • Earth terminal

• Power Supply: AC 220 – 240 V, 50/60 Hz

• Power Consumption: 11 W (0.3 W standby)

• Dimensions (W x H x D): 453 x 173 x 372 mm

• Weight: Approx. 11.5 kg

What’s Included:

• Technics SL-1200GR2 turntable

• Turntable sheet

• Dust cover

• EP adaptor

• Balance weight and auxiliary weight

• Cartridge spacer

• Head shell

• Overhang gauge

• Cartridge mounting hardware

• PHONO cable and earth lead

• Power cable

• User manual

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the SL-1200GR2 in person.
