Technics SL 1000R Reference Class Turntable

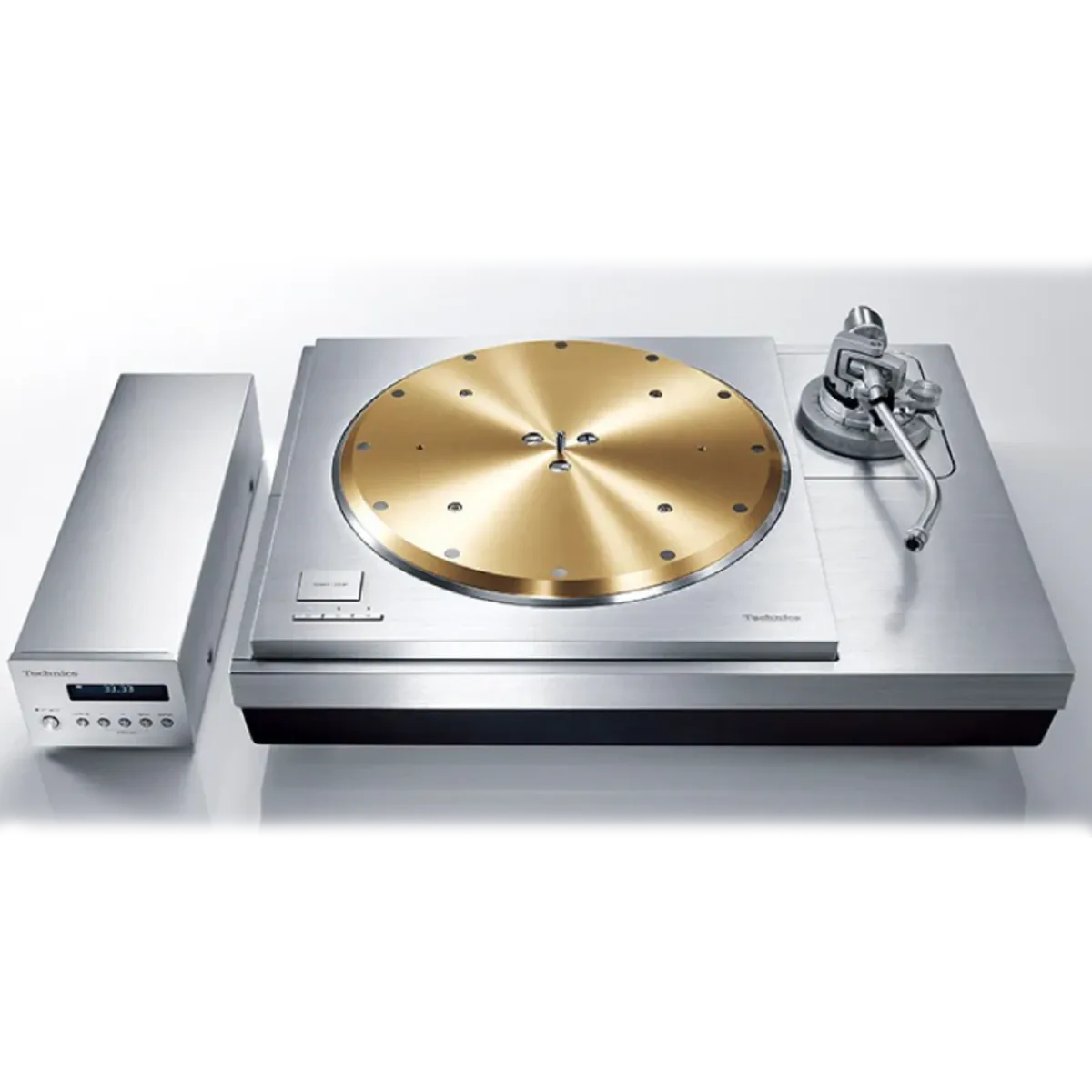

Technics SL-1000R Direct Drive Turntable System

The Technics SL-1000R is a flagship reference-class turntable system, engineered to deliver ultimate precision, stability, and sonic performance. Combining extreme mass, advanced motor technology, and meticulous craftsmanship, it represents the pinnacle of Technics analogue design.

At its core is a double coil, twin-rotor coreless direct drive motor, evolved from the design introduced in the Technics SL-1200G turntable. Featuring a 12-pole, 18-coil configuration, the motor delivers exceptional torque to drive the heavyweight platter while eliminating cogging. By offsetting coils by 60 degrees, vibration and self-inductance are reduced, achieving ultra-stable rotation with wow and flutter as low as 0.015%.

Motor vibration is further suppressed through reinforced thrust bearings, a rigid chassis, and a low centre of gravity design. Stainless steel weights positioned at the base enhance stability and minimise unwanted resonance, resulting in exceptional rotational precision and a very high signal-to-noise ratio.

The heavyweight three-layer platter combines aluminium die-cast, a 10 mm brass layer, and tungsten weights placed around the outer edge. With a total weight of approximately 7.9 kg, it provides enormous inertial mass and outstanding vibration damping, ensuring smooth and accurate playback.

A separate control unit isolates power and control circuitry from the main turntable, significantly reducing electrical noise. The high-performance switching power supply incorporates advanced noise reduction technology to deliver clean, stable voltage with minimal interference.

Precision control is enhanced with adjustable rotation speed down to two decimal places, displayed clearly on an OLED screen for accurate visual feedback.

The SL-1000R includes a high-sensitivity S-shaped tonearm constructed from lightweight magnesium. Featuring a high-precision gimbal bearing system and hand assembly by skilled craftsmen, it achieves exceptional tracking accuracy. OFC internal wiring preserves signal integrity for vivid, detailed sound reproduction.

The tonearm base is rigidly integrated with the turntable structure, maintaining consistent geometry and minimising the impact of vibration. Optional tonearm bases allow additional arms from SME or Ortofon to be mounted, supporting highly customised setups.

A gold-plated 5-pin DIN output ensures optimal signal transfer, while the high-rigidity multi-layer cabinet and silicon insulators provide exceptional vibration isolation and long-term stability.

Key Features:

• Twin-rotor coreless direct drive motor with 12-pole, 18-coil design

• Ultra-low wow and flutter (0.015%) for reference-level accuracy

• Heavyweight 3-layer platter with brass and tungsten construction

• Separate control unit for reduced electrical noise

• Precision speed adjustment with OLED display

• Magnesium S-shaped tonearm with high-precision gimbal bearings

• Hand-assembled tonearm for maximum tracking accuracy

• Optional multi-tonearm support for custom setups

• Gold-plated 5-pin DIN output for high signal integrity

• Multi-layer high-rigidity cabinet with advanced vibration damping

Technical Specifications:

• Type: Direct Drive Turntable System

• Motor: Brushless DC motor

• Speeds: 33⅓, 45, 78 rpm

• Speed Adjustment: ±16%

• Starting Torque: 0.39 N·m

• Wow and Flutter: 0.015% W.R.M.S.

• Platter:

  • Brass and aluminium die-cast with tungsten weights

  • Diameter: 323 mm

  • Weight: Approx. 7.9 kg

• Tonearm:

  • Type: Universal static balance

  • Effective Length: 254 mm

  • Overhang: 15 mm

  • Offset Angle: 21°

  • Tracking Force Range: 0 – 4 g

• Cartridge Compatibility (including headshell):

  • 15.9 – 19.7 g (no auxiliary weight)

  • 18.8 – 23.6 g (small weight)

  • 22.5 – 26.3 g (middle weight)

  • 26.0 – 31.0 g (large weight)

• Output:

  • PHONO (5-pin DIN) x1

• Power Supply: AC 110 – 240 V, 50/60 Hz

• Power Consumption: 10 W (0.05 W standby)

• Dimensions:

  • Main Unit: 531 x 188 x 399 mm

  • Control Unit: 110 x 84 x 350 mm

• Weight:

  • Main Unit: Approx. 40.2 kg

  • Control Unit: Approx. 2.1 kg

What’s Included:

• Technics SL-1000R main unit

• Separate control unit

• Turntable mat

• EP adaptor

• Balance weight and auxiliary weights (small, medium, large)

• Overhang gauge

• Mounting hardware

• Detachable handle

• Insulator attachments

• Dust cover

• Power cables

• User manual

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the SL-1000R in person.
