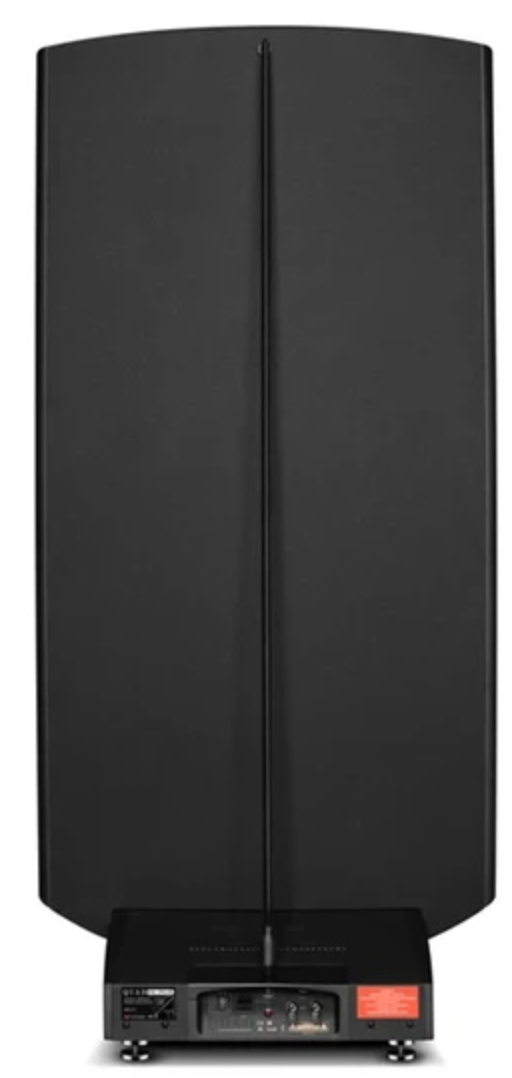

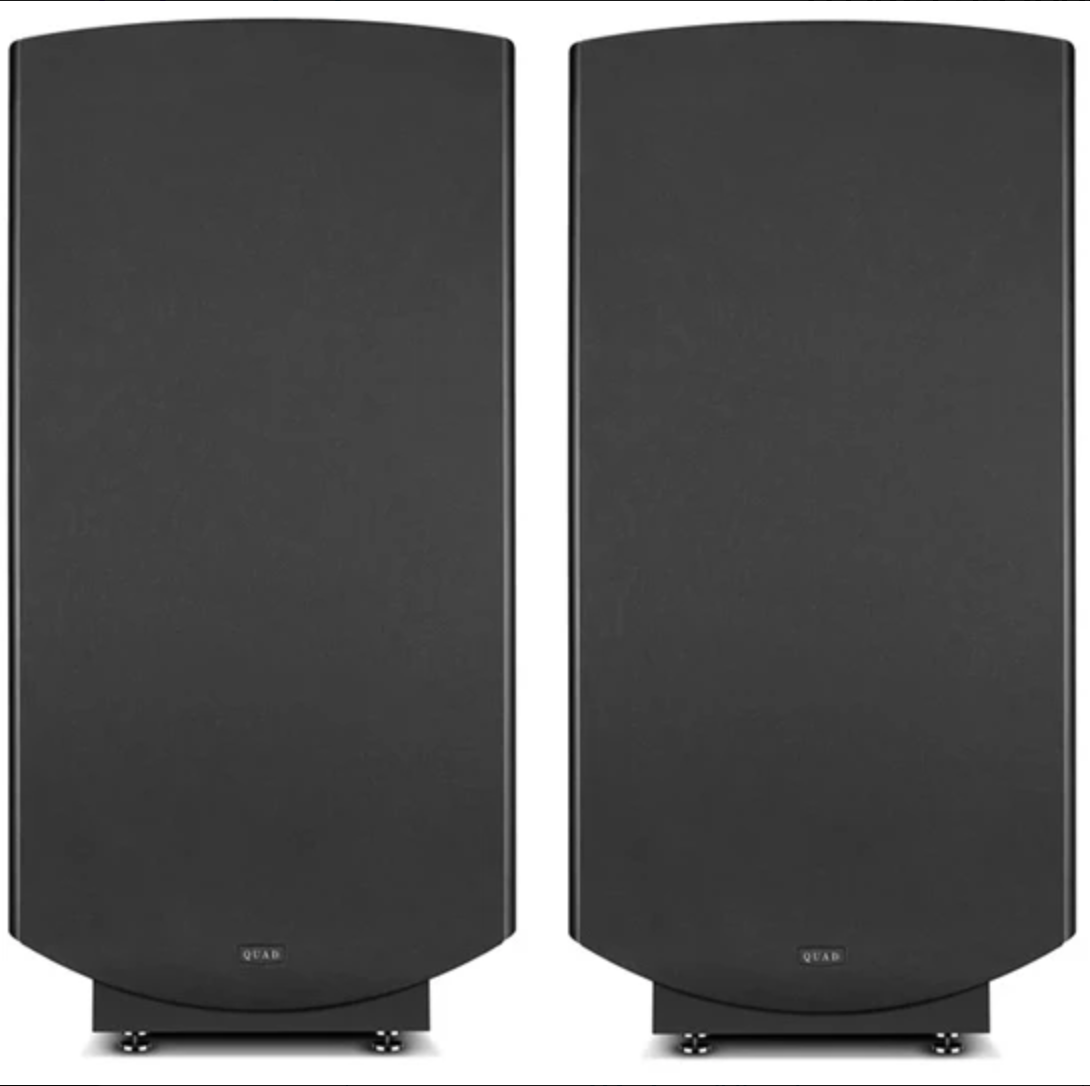

Quad ESL 2912X Electrostatic Speakers

The Quad ESL 2912X represents the most advanced refinement of QUAD’s legendary electrostatic loudspeaker design to date. Building on the acclaimed ESL 2912 platform, the 2912X introduces precision-engineered upgrades throughout its construction, electronics, and transformers—delivering enhanced clarity, greater dynamic expression, lower distortion, and a more immersive listening experience while preserving the unmistakable QUAD ESL sound.

Precision Engineering from the Ground Up

Every aspect of the Quad ESL 2912X has been re-evaluated through a comprehensive internal engineering audit. Using advanced laser-precision metrology, QUAD engineers refined the electrostatic architecture with improvements to diaphragm spraying, stator etching, diaphragm tensioning, transformer integration, and final assembly. These changes result in tighter tolerances, improved consistency, and increased transparency across the frequency range.

Why the ESL 2912 Became the ESL 2912X

The cumulative impact of these engineering upgrades justified a new model designation. Rather than a minor revision, the Quad ESL 2912X represents a meaningful performance leap, offering a purer, more dynamic, and more controlled presentation that firmly places it at the top of QUAD’s modern electrostatic loudspeaker range.

QUAD Electrostatic Heritage

The ESL 2912X continues a lineage that began in 1957 with Peter Walker’s original full-range electrostatic loudspeaker. From the ESL-63 through to the ESL 2912, each generation has advanced transparency, coherence, and musical realism. The ESL 2912X retains the hallmark open midrange, absence of cabinet coloration, and effortless presentation for which QUAD ESLs are renowned.

Ultra-Lightweight Mylar Diaphragm

At the heart of the Quad ESL 2912X is an ultra-lightweight Mylar diaphragm. Its exceptionally low mass enables outstanding transient response, high accuracy, and vanishingly low distortion, allowing music to be reproduced with remarkable speed, detail, and realism.

Advanced Point-Source Electrostatic Design

The Quad ESL 2912X employs QUAD’s concentric ring stator geometry and delay-line system, derived from the legendary ESL-63 point-source principle. Charged to over 5.2kV DC and driven uniformly across its surface, the diaphragm moves precisely in sync with the music, producing stable phase coherence, pinpoint imaging, and a deeply immersive three-dimensional soundstage.

British-Built Audio Transformers

A major upgrade in the ESL 2912X is the reintroduction of UK-manufactured audio transformers, developed under the supervision of QUAD’s specialist service team. These bespoke transformers improve linearity, reduce flux modulation at high sound pressure levels, and extend high-frequency performance beyond 18kHz for cleaner transients and greater dynamic expression.

Revised Electronic Architecture

Internally, the Quad ESL 2912X features a newly segmented electronic layout, separating high-voltage multiplication, control and protection, and low-voltage signal handling into individual modules. This design significantly reduces electromagnetic interference and crosstalk, lowering the noise floor and delivering greater stability, finesse, and realism across all listening levels.

• Type: Multiple electrostatic drive membranes
• Point Source Time Delay: Progressive concentric rings
• Frequency Response: 32Hz – 21kHz (-6dB), 28Hz – 23kHz (useable)
• Distortion: Above 1000Hz <0.15%, Above 100Hz <0.5%, Above 50Hz <1.0% (100dB @ 1m)
• Sensitivity: 1.5 mbar per volt referred to 1m (86dB / 2.83V rms equivalent)
• Nominal Impedance: 8 Ohms
• Impedance Variation: 4 – 20 Ohms
• Maximum Output: 2 N / m² at 2m on axis
• Panel Elements: 6
• Format: Floor standing dipole with 3° fixed tilt
• Chassis Structure: Heavy duty composite aluminium / steel
• Maximum Input: Continuous input voltage (rms) 10V, Programme Peak for undistorted output 40V, Permitted peak input 55V
• Directivity Index: See polar diagrams
• Dimensions (H x W x D): 1470 x 690 x 380 mm
• Net Weight: 44kg
• Power Consumption: 8W
• AC Input: 220 – 240V, 100 – 120V
• Power Fuse: 100mA anti-surge (200–240V), 200mA anti-surge (100–120V)
• Model: ESL 2912X
