QUAD 3 Integrated Amplifier – “A Modern Classic”
The QUAD 3 is a completely new integrated amplifier that blends classic British hi-fi heritage with cutting-edge modern performance. Inspired by the iconic QUAD 33 and 303, it retains unmistakable design cues while introducing advanced digital and analogue technologies for today’s listener.
Designed as the central hub of a modern system, the QUAD 3 combines powerful amplification, high-resolution digital decoding, and versatile connectivity in a compact, beautifully engineered chassis. From vinyl to streaming, TV audio to high-resolution files, it delivers a refined, detailed and immersive listening experience.
Despite its modern functionality, the QUAD 3 remains true to QUAD’s philosophy of simplicity and musicality. Its analogue signal path is preserved where it matters most, ensuring a natural, uncoloured sound that stays faithful to the original recording.
Key Features:
- Fully integrated amplifier with built-in DAC, phono stage and headphone amplifier
- Classic QUAD-inspired design with modern build quality and finish
- ES9038Q2M Sabre DAC with HyperStream II and jitter elimination
- High-resolution support up to 32-bit/768kHz PCM and DSD512
- HDMI ARC, USB, Bluetooth 5.1 (aptX HD), optical and coaxial inputs
- Analogue tilt tone control for precise sound shaping
- Class AB amplification with Complementary Feedback topology
- 65W per channel (8Ω) / 100W per channel (4Ω)
- Dedicated low-noise MM phono stage for vinyl playback
- Built-in high-quality headphone amplifier
Connections:

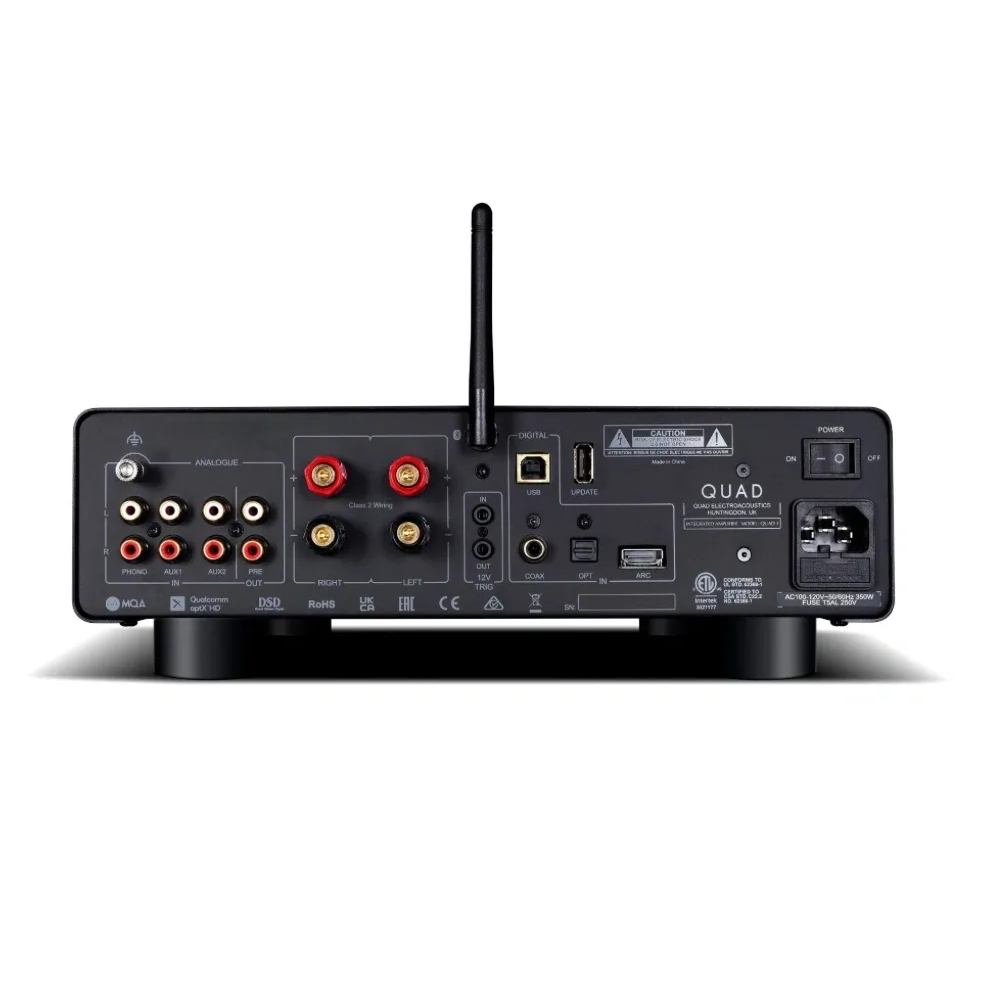

- Inputs: 1 x USB Type B, 1 x HDMI ARC, 1 x Optical, 1 x Coaxial, 3 x RCA (including MM phono), Bluetooth 5.1, 1 x USB Type A (firmware), 1 x 12V trigger
- Outputs: Speaker binding posts, 1 x 6.35mm headphone output, 1 x RCA pre-out, 1 x 12V trigger
Technical Specifications:
- Power Output: 2 x 65W (8Ω), 2 x 100W (4Ω)
- Amplifier Type: Class AB with Complementary Feedback
- DAC: ESS ES9038Q2M Sabre
- Supported Formats: Up to 32-bit/768kHz PCM, DSD512
- Distortion (THD): <0.003% (1kHz @ 30W/8Ω)
- Maximum Current Delivery: 10A per channel
- User Controls (Analogue): Tilt control, bass adjustment, balance
- User Controls (Digital): Upsampling options, selectable DAC filters
- Dimensions: 300 x 101 x 332 mm (W x H x D)
What’s Included:
- QUAD 3 Integrated Amplifier
- Remote control
- Power cable
- Manufacturer packaging
Note: This product is available for in-store demonstration. Visit the Spinning Room showroom to experience the QUAD 3 in person.
