Puresound T10 MC step up transformer

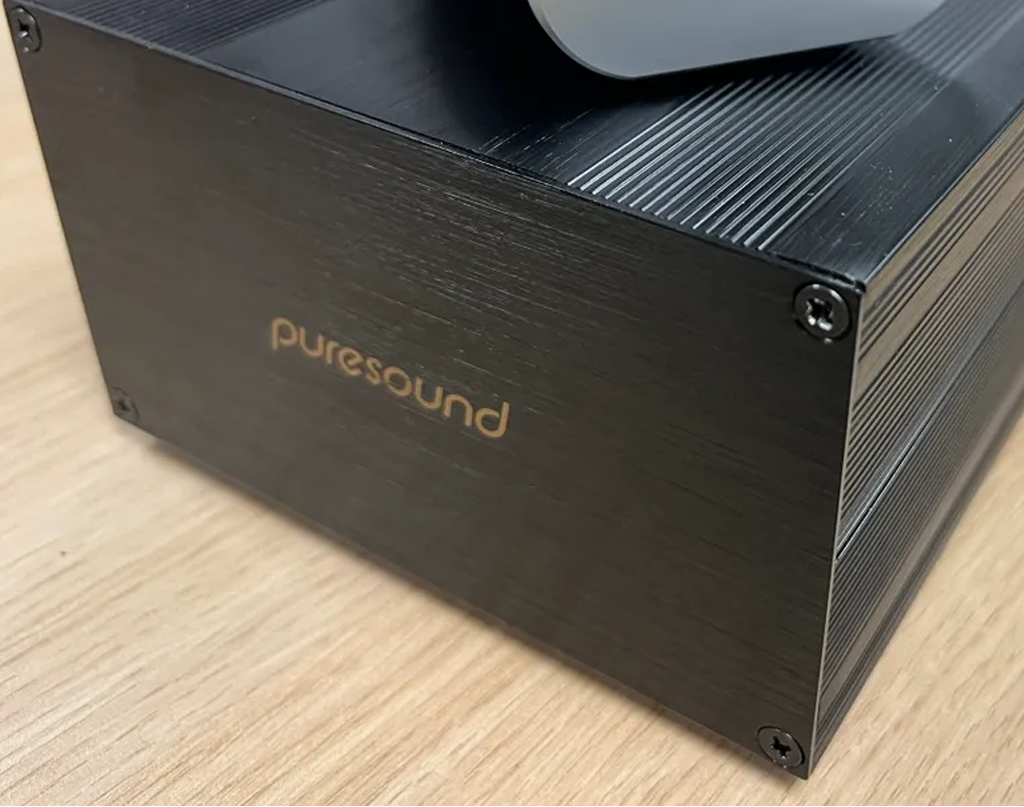

Puresound T10 MC Step-Up Transformer

The T10 is a moving coil step-up transformer designed to optimise the performance of low-output MC cartridges when used with MM phono stages. Built around custom wideband transformers, it provides flexible loading and high signal integrity without the need for active circuitry.

Key features:

• step-up transformer (MC to MM)
• dual custom wideband transformers
• Mu-metal core construction
• selectable step-up ratio (1:18 / 1:36)
• adjustable cartridge loading
• passive design – no active electronics

Design and performance:

The T10 uses two custom-manufactured wideband transformers with Mu-metal cores, chosen for their ability to provide high permeability and low distortion. This ensures efficient signal transfer while preserving the tonal characteristics of the cartridge.

Two selectable gain ratios allow the transformer to be matched to different cartridges:

• 1:18 ratio
• 1:36 ratio

These options provide flexibility in cartridge loading, enabling adjustment between approximately 36 and 144 ohms for optimal performance.

Materials and construction:

• custom wideband transformers
• Mu-metal cores for low noise and high linearity
• precision internal construction for consistent performance

The use of Mu-metal helps reduce electromagnetic interference while maintaining bandwidth and signal accuracy.

Sound characteristics:

• natural and uncoloured presentation
• improved signal level without added noise
• strong preservation of cartridge character
• stable and controlled frequency response

As a passive device, the T10 introduces no additional active circuitry into the signal path, helping maintain purity and low noise.

Build and usability:

The T10 is designed to sit between the turntable and a MM phono stage, providing a straightforward upgrade path for MC cartridge users. The selectable ratios make it adaptable to a range of cartridge outputs and system requirements.

Specifications:

• step-up ratios: 1:18 / 1:36
• cartridge loading: approx. 36 – 144 ohms
• transformer type: wideband, Mu-metal core
• configuration: dual transformer (stereo)

Note:

Correct matching of step-up ratio and cartridge impedance is important to achieve the best performance from the T10 within a given system.
