Ortofon ST-80 Step-up transformer SUT

Ortofon ST-80 Special Edition Moving Coil Transformer

The Ortofon ST-80 Special Edition is a high-performance step-up transformer designed to unlock the full potential of moving coil cartridges. Built for serious analogue systems, it enhances signal gain while preserving detail, tonal balance, and musical integrity.

At its core, the ST-80 SE features an upgraded transformer design with a larger bobbin, increased coil windings, and a multi-layer permalloy core. These enhancements deliver a more detailed, full-bodied sound with improved warmth and clarity, while maintaining excellent signal purity.

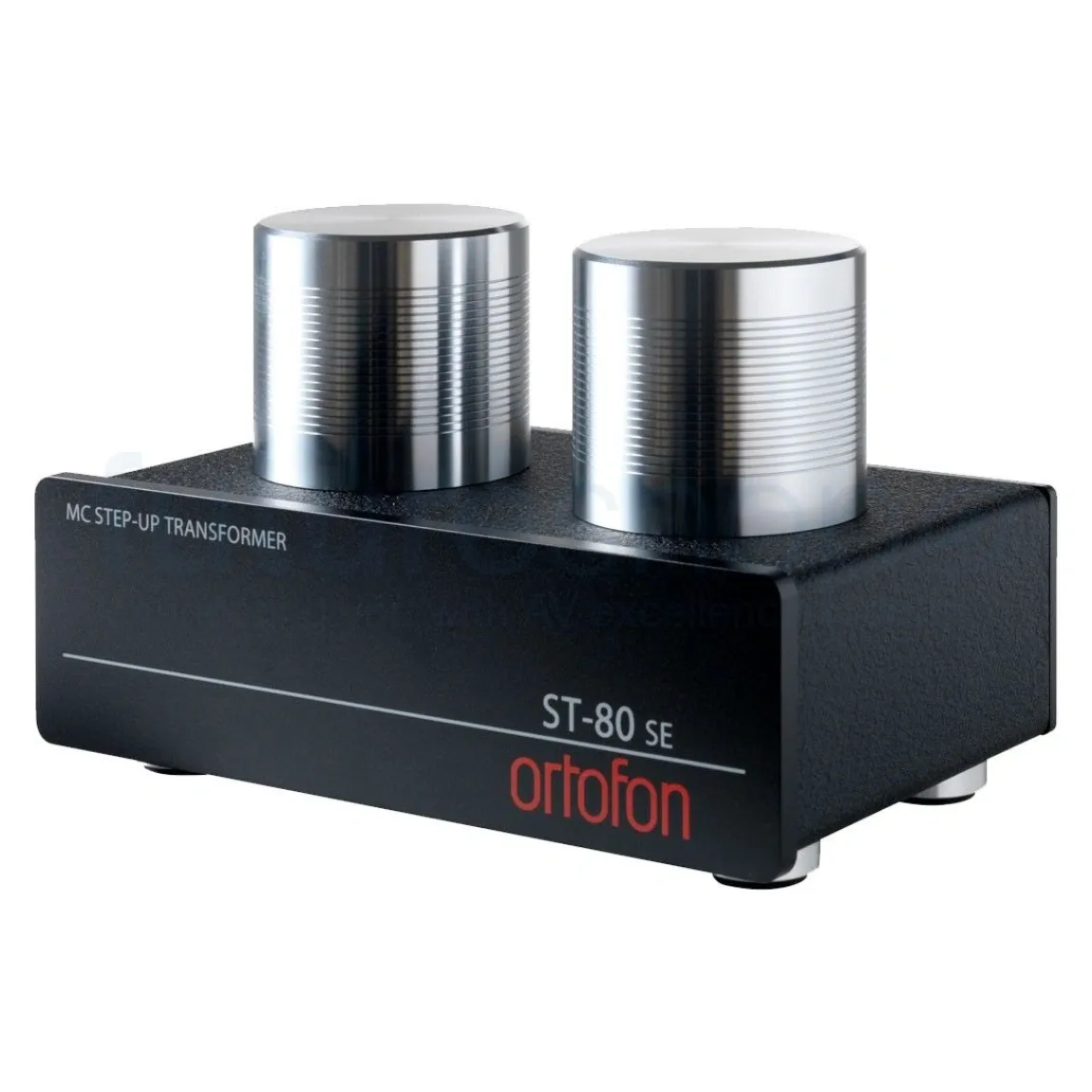

The transformer is housed within a magnetically shielded permalloy case and encased in a solid 10mm thick aluminium cylinder. This construction provides exceptional isolation from external interference, ensuring a low noise floor and stable performance. Its substantial weight further improves stability, preventing movement once installed.

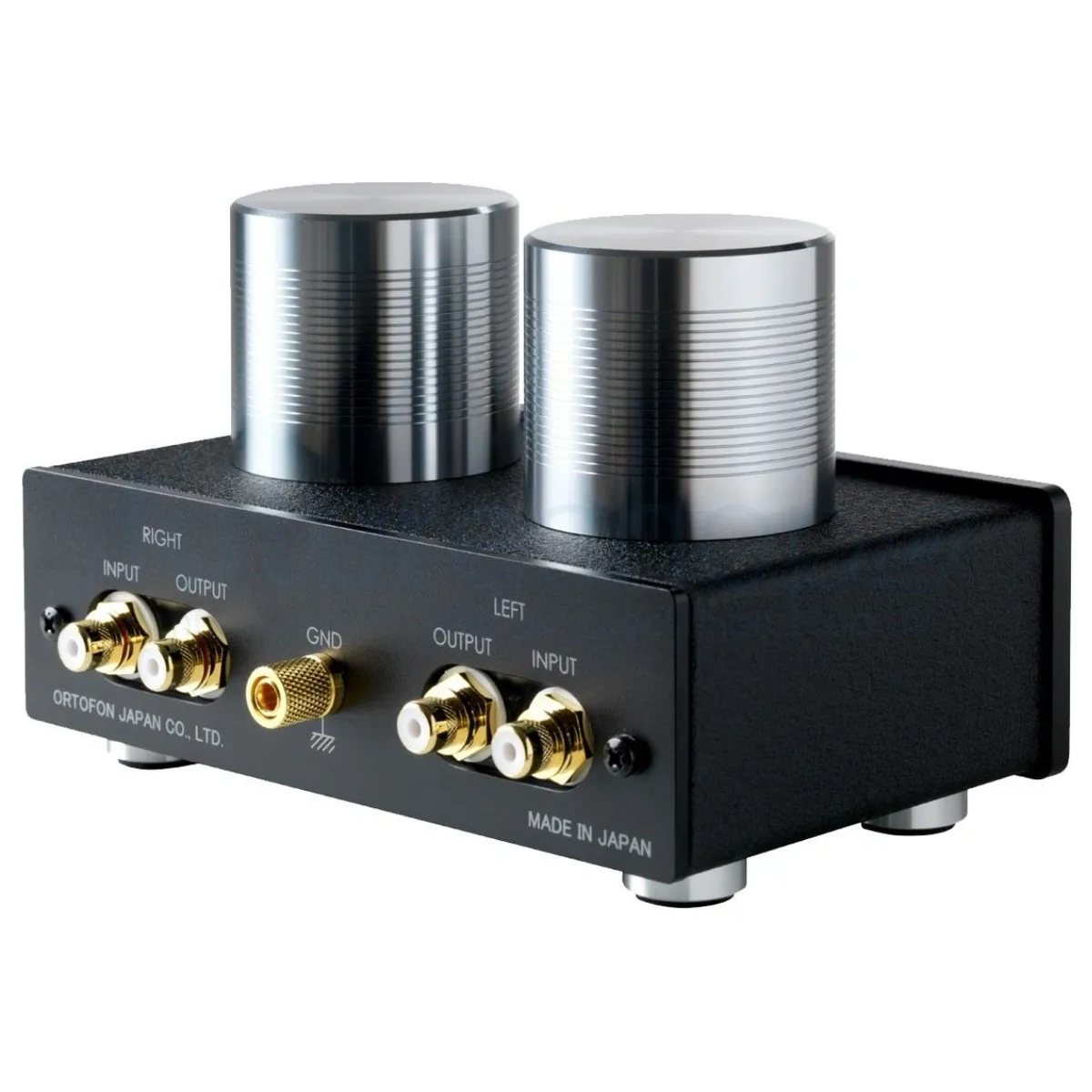

Designed as a true dual mono unit, the ST-80 SE offers outstanding channel separation, contributing to a more precise and focused stereo image. Internally, it uses Teflon-insulated, solid-core OFC copper wiring with gold plating, alongside high-quality gold-plated RCA terminals, ensuring optimal signal transmission throughout.

The ST-80 SE is compatible with a wide range of high-end moving coil cartridges, including Ortofon’s Cadenza, SPU, and Exclusive Series models. It is particularly well suited to premium analogue setups, delivering increased gain without introducing distortion.

Key Features:

• High-end moving coil step-up transformer

• Upgraded permalloy core with increased coil windings

• Larger bobbin design for improved performance

• Pure dual mono construction for maximum channel separation

• Magnetically shielded permalloy case

• 10mm thick aluminium housing for vibration and noise isolation

• Teflon-insulated, gold-plated OFC copper internal wiring

• High-quality gold-plated RCA terminals

• Compatible with a wide range of MC cartridges

Technical Specifications:

• Frequency Response: 10 Hz – 100 kHz (+0.5 dB / -2.5 dB)

• Gain: 27 dB (47 kΩ / 1 kHz)

• Input Impedance: 2 Ω – 6 Ω

• Load Impedance: > 47 kΩ

• Channel Balance: < 0.5 dB

• Channel Separation: > 90 dB (1 kHz)

• Dimensions: 153 x 95 x 110 mm

• Weight: 1.36 kg

Build & Design:

• Core Material: Multi-layer permalloy

• Housing: 10mm aluminium cylinder

• Shielding: Magnetic permalloy case

• Internal Wiring: Gold-plated OFC copper with Teflon insulation

• Configuration: Dual mono

What’s Included:

• Ortofon ST-80 Special Edition Transformer

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the ST-80 SE in person.
