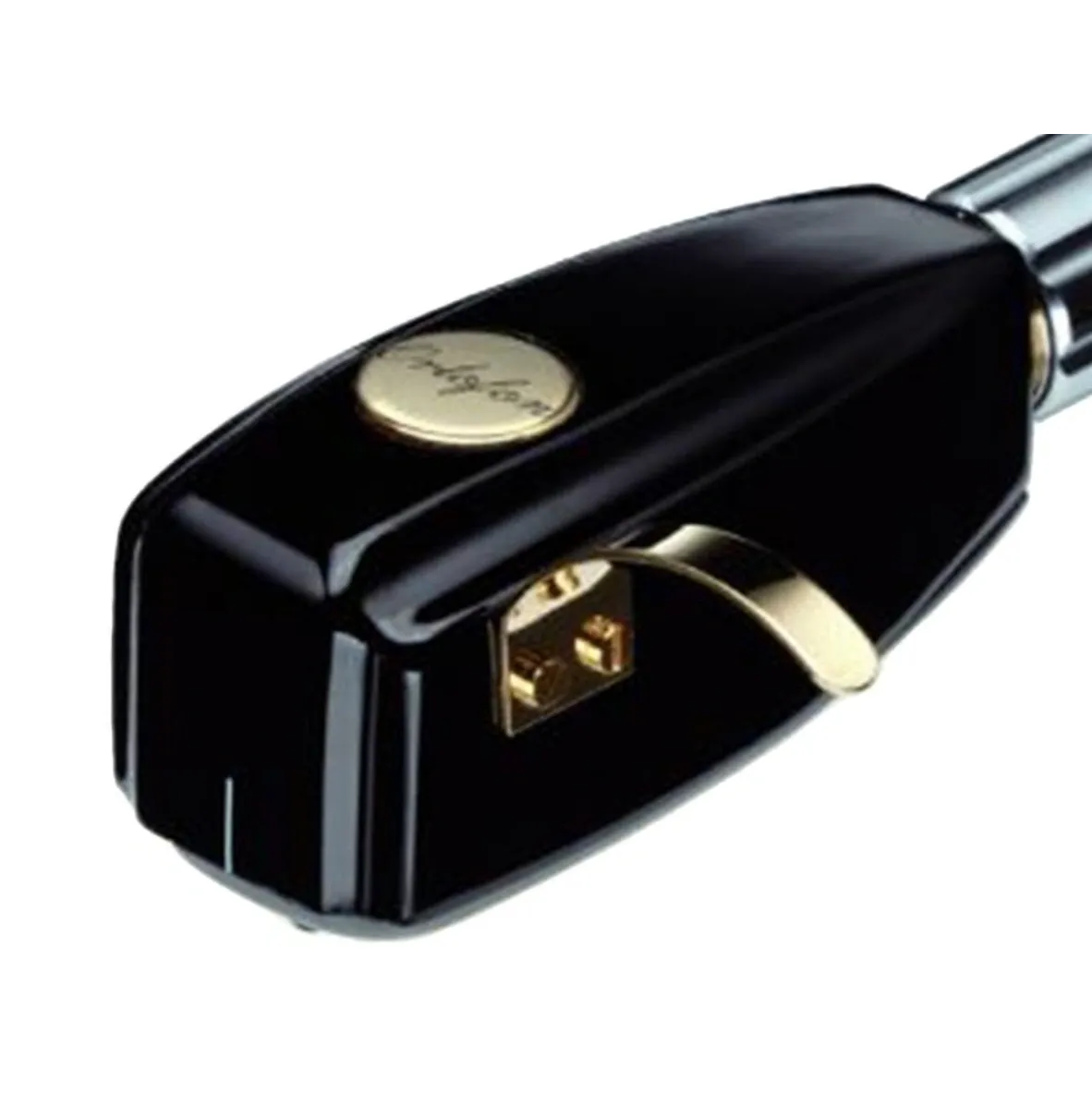

Ortofon SPU Royal N Cartridge

The Ortofon SPU Royal N delivers the iconic SPU sound in a flexible, headshell-free format, allowing users to mount the cartridge on a traditional detachable headshell. Sharing its core performance with the SPU Royal GM series, it offers a refined and highly detailed analogue experience for serious vinyl enthusiasts.

At the heart of the Royal N is Ortofon’s Replicant 100 stylus, paired with a reduced tip mass design. This advanced profile ensures exceptional groove contact, revealing fine detail, extended high-frequency response, and a more open, transparent sound.

The use of Electrum coils (a gold and silver alloy) enables highly accurate signal transmission with minimal coloration, while high-purity 6N copper wiring preserves delicate microdynamic detail. A carefully optimised damping system allows for lower tracking force and improved linearity, contributing to a more natural and balanced presentation.

Key Features:

• Classic SPU design in a headshell-free format

• Compatible with traditional detachable headshells

• Replicant 100 stylus for exceptional detail and precision

• Electrum coil system for accurate, uncoloured signal transmission

• High-purity 6N copper wiring for microdynamic detail

• Optimised damping for improved linearity and reduced tracking force

Technical Specifications:

• Output Voltage: 0.2 mV (at 1kHz, 5cm/sec)

• Channel Balance: < 1 dB (at 1kHz)

• Channel Separation: > 25 dB (1kHz), 20 dB (15kHz)

• Frequency Response: 20 Hz – 20 kHz (+1.5/-0 dB)

• Tracking Ability: > 70 µm (at 315Hz)

• Compliance (Dynamic, Lateral): 8 µm/mN

• Stylus Type: Nude Ortofon Replicant 100

• Stylus Radius: 5 / 100 µm

• Tracking Force Range: 2.5 – 3.5 g

• Recommended Tracking Force: 3.0 g

• Tracking Angle: 20°

• Internal Impedance: 7Ω

• Recommended Load Impedance: > 100Ω

Build & Design:

• Coil Wire: Gold-plated silver (Electrum)

• Internal Wiring: High-purity 6N copper

• Colour: Black

• Weight: 13 g

What’s Included:

• Ortofon SPU Royal N Cartridge

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the SPU Royal N in person.
