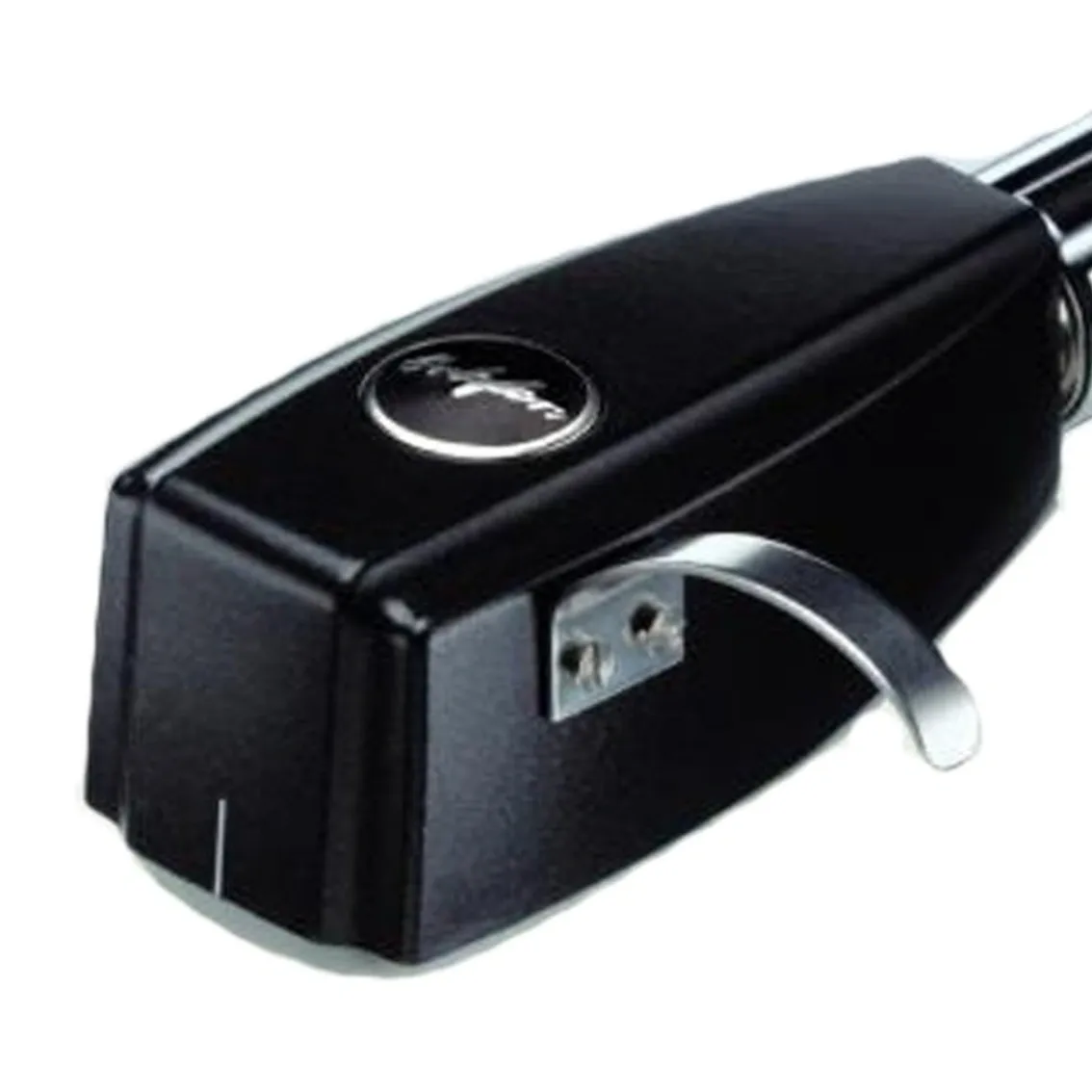

Ortofon SPU Mono CG 25 DI MK II Moving Coil Cartridge and Headshell

Ortofon CG 25 DI MKII Mono Cartridge

The Ortofon CG 25 DI MKII is designed to deliver an authentic playback experience for early mono vinyl recordings. Built with a focus on historical accuracy, it captures the character and tonal balance of original pressings while maintaining a high level of sonic precision.

With a higher output of 1.5mV, the CG 25 DI MKII is well-suited for use with a wide range of medium-gain moving coil transformers, making it easier to integrate into traditional analogue systems. Its spherical stylus with a larger 25µm radius is specifically optimised for early mono records, ensuring correct groove contact and minimising wear.

The cartridge body is constructed from a ground wood and resin composite, contributing to a natural tonal character and effective vibration control. Combined with high-purity OFC copper coil wire, it delivers a warm, stable, and highly musical presentation that suits vintage recordings perfectly.

Key Features:

• Dedicated mono cartridge for early vinyl recordings

• High output (1.5mV) for compatibility with MC transformers

• Spherical stylus optimised for mono groove dimensions

• Authentic tonal balance for vintage playback

• Ground wood and resin body for natural resonance control

• High-purity OFC copper coil wire

Technical Specifications:

• Output Voltage: 1.5 mV (at 1kHz, 5cm/sec)

• Frequency Response: 20 Hz – 15 kHz (±3dB)

• Tracking Ability: > 60 µm (at 315Hz)

• Compliance (Dynamic, Lateral): 7 μm/mN

• Stylus Type: Spherical

• Stylus Radius: R 25 µm

• Tracking Force Range: 3.0 – 4.0 g

• Recommended Tracking Force: 3.5 g

• Tracking Angle: 20°

• Internal Impedance: 6Ω

• Recommended Load Impedance: > 100Ω

Build & Design:

• Cartridge Body: Ground Wood & Resin Composite

• Coil Wire: High Purity Copper (OFC)

• Colour: Shiny Black

• Weight: 37 g

What’s Included:

• Ortofon CG 25 DI MKII Cartridge

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the CG 25 DI MKII in person.
