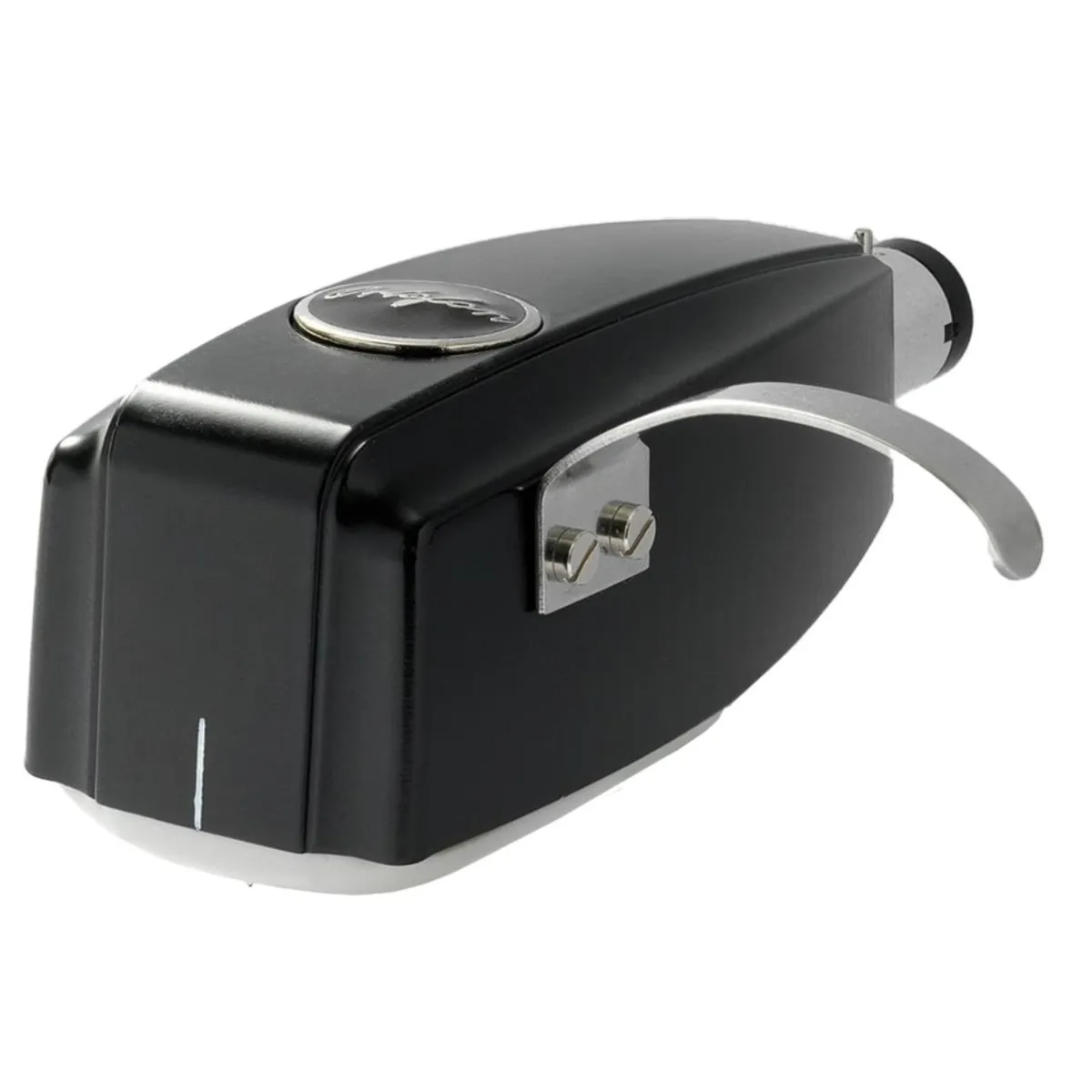

Ortofon SPU Classic G E MK II Moving Coil Cartridge and Headshell

Ortofon SPU Classic GM E Cartridge

The Ortofon SPU Classic GM E embodies the essence of the original moving coil designs, offering a timeless analogue presentation suited to both early and modern stereo recordings. It retains the rich, full-bodied SPU sound while introducing greater detail and spatial precision through its elliptical stylus profile.

The Nude Elliptical stylus enhances groove contact compared to spherical designs, allowing for improved detail retrieval, more expansive imaging, and greater clarity across the frequency range. This results in a balanced and engaging listening experience, combining classic warmth with refined resolution.

Constructed using a ground wood and resin composite body, the SPU Classic GM E benefits from natural resonance control, contributing to its smooth and musical character. High-purity OFC copper coil wire ensures clean signal transmission and consistent performance.

Key Features:

• Classic SPU design with integrated headshell (GM type)

• Nude elliptical stylus for enhanced detail and imaging

• Suitable for both vintage and modern stereo recordings

• Rich, full-bodied analogue sound with improved clarity

• Ground wood and resin body for resonance control

• High-purity OFC copper coil wire

Technical Specifications:

• Output Voltage: 0.2 mV (at 1kHz, 5cm/sec)

• Channel Balance: < 1 dB (at 1kHz)

• Channel Separation: > 20 dB (1kHz), > 10 dB (15kHz)

• Frequency Response: 20 Hz – 20 kHz (±3dB)

• Tracking Ability: 65 µm (at 315Hz)

• Compliance (Dynamic, Lateral): 8 µm/mN

• Stylus Type: Nude Elliptical

• Stylus Radius: 8 / 18 µm

• Tracking Force Range: 3.0 – 5.0 g

• Recommended Tracking Force: 4.0 g

• Tracking Angle: 20°

• Internal Impedance: 2Ω

• Recommended Load Impedance: > 10Ω

Build & Design:

• Cartridge Body: Ground Wood & Resin Composite

• Coil Wire: High Purity Copper (OFC)

• Colour: Shiny Black

• Weight: 30 g

What’s Included:

• Ortofon SPU Classic GM E Cartridge (integrated headshell)

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the SPU Classic GM E in person.
