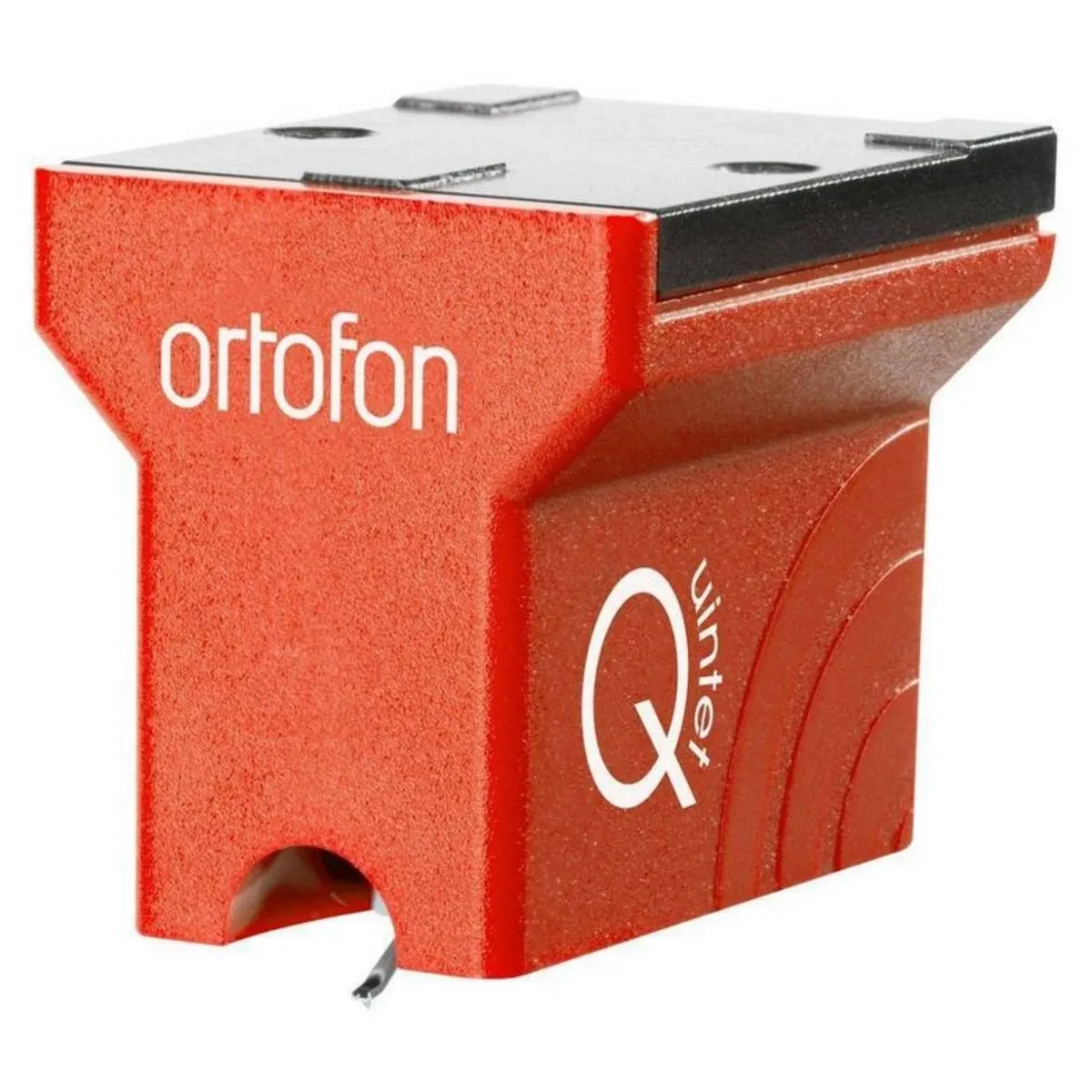

Ortofon Quintet red moving coil phono cartridge

Ortofon Quintet Red Moving Coil Cartridge

The Ortofon Quintet Red is an entry-level moving coil cartridge designed to deliver impressive performance and excellent value. As an accessible introduction to MC cartridges, it offers a balanced, engaging sound with a slight warmth, making it an ideal all-rounder for a wide range of music and systems.

Fitted with an elliptical diamond stylus, the Quintet Red provides accurate groove tracking and good detail retrieval while maintaining a forgiving character. Its lightweight ABS body and aluminium frame ensure durability and stable performance, while neodymium magnets contribute to a strong and efficient output.

With low internal impedance, the Quintet Red is compatible with a wide range of phono stages and transformers, making system matching straightforward. The top-mount design with threaded holes also makes installation simple and secure across most tonearms.

Key Features:

• Entry-level moving coil cartridge with excellent value

• Elliptical diamond stylus for accurate tracking and detail

• Open, dynamic sound with a touch of warmth

• Lightweight ABS body with aluminium frame

• Neodymium magnet system for efficient output

• Low internal impedance for wide system compatibility

• Easy top-mount installation with threaded holes

Technical Specifications:

• Output Voltage: 0.5 mV (at 1kHz, 5cm/sec)

• Channel Separation: > 21 dB (at 1kHz)

• Frequency Response: 20 Hz – 20 kHz (+2/-0 dB)

• Stylus Type: Tipped Elliptical

• Tracking Force Range: 2.1 – 2.5 g

• Recommended Tracking Force: 2.3 g

• Cantilever Material: Aluminium Tube

• Recommended Load Impedance: > 20Ω

• Cartridge Weight: 9 g

Build & Design:

• Body Material: ABS (Acrylonitrile/Butadiene/Styrene)

• Frame: Aluminium with threaded mounting holes

• Magnet Type: Neodymium

What’s Included:

• Ortofon Quintet Red Cartridge

• Mounting screws (5mm and 7mm)

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the Quintet Red in person.
