Ortofon Quintet mono moving coil phono cartridge

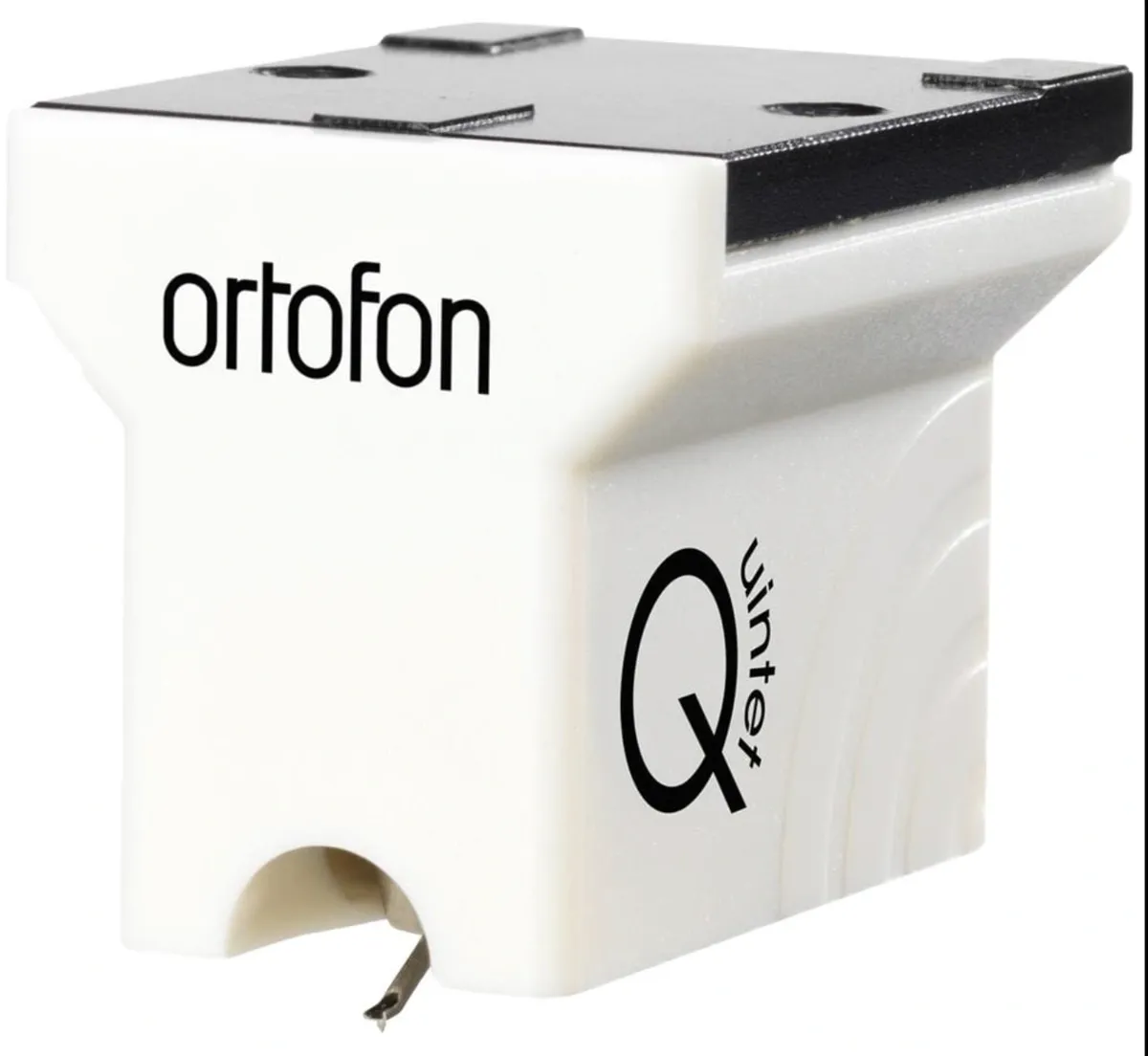

Ortofon Quintet Mono Cartridge

The Ortofon Quintet Mono is purpose-built for dedicated mono playback, offering a refined and accessible entry into true mono reproduction. Designed specifically for microgroove mono vinyl records, it delivers focused sound, reduced surface noise, and excellent tracking—even on worn or imperfect pressings.

At its core is a Nude Elliptical stylus (8/18µm), carefully chosen to follow mono grooves with precision while maintaining a forgiving character. This makes it ideal for both well-preserved and older records, ensuring consistent performance across a wide range of vinyl conditions.

The Quintet Mono uses a strapped output design, delivering the same signal from both sets of pole pins. This removes the need for dedicated mono equipment, allowing seamless integration into any standard stereo system while preserving true mono playback characteristics.

Key Features:

• Dedicated mono moving coil cartridge

• Nude Elliptical stylus for accurate groove tracing

• Excellent tracking on worn and damaged records

• Reduced surface noise for cleaner playback

• Strapped output for true mono signal on stereo systems

• Part of Ortofon’s Quintet Series

Technical Specifications:

• Output Voltage: 0.3 mV (at 1kHz, 5cm/sec)

• Frequency Range: 20 Hz – 25 kHz (-3dB)

• Frequency Response: 20 Hz – 20 kHz (±2.0dB)

• Tracking Ability: 70 μm (at 315Hz)

• Compliance (Dynamic, Lateral): 15 μm/mN

• Stylus Type: Nude Elliptical

• Stylus Radius: 8 / 18 µm

• Tracking Force Range: 2.1 – 2.5 g

• Recommended Tracking Force: 2.3 g

• Tracking Angle: 20°

• Internal Impedance: 5Ω

• Recommended Load Impedance: >20Ω

Build & Design:

• Cartridge Body: ABS / Aluminium

• Colour: White

• Weight: 9 g

What’s Included:

• Ortofon Quintet Mono Cartridge

• Mounting hardware

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the Quintet Mono in person.
