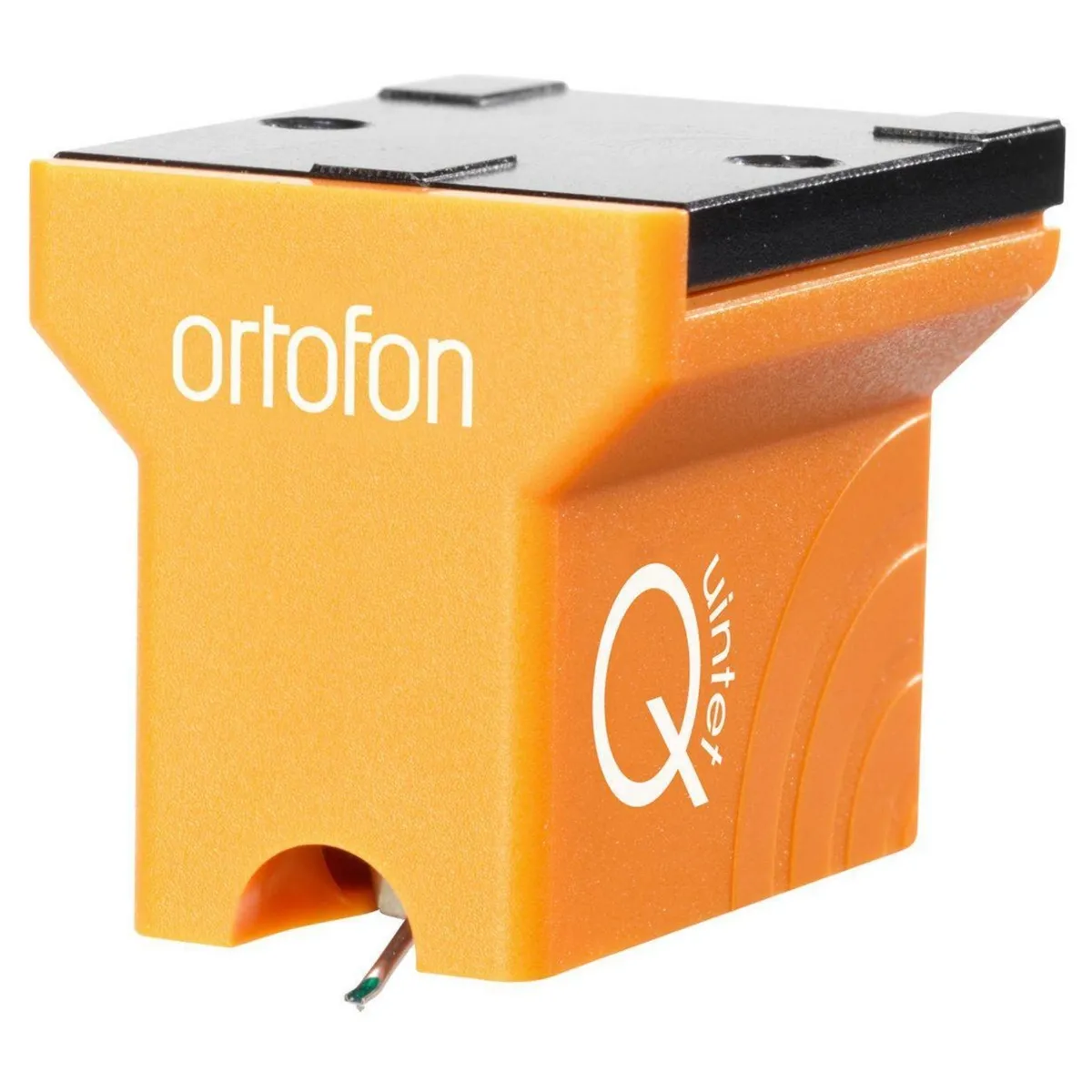

Ortofon Quintet Bronze moving coil phono cartridge

Ortofon Quintet Bronze Moving Coil Cartridge

The Ortofon Quintet Bronze takes a clear step up in performance, delivering greater detail, resolution, and spatial accuracy while maintaining a balanced and natural presentation. It is designed for listeners who want a more refined and revealing sound without sacrificing musicality.

At the heart of the Quintet Bronze is a Nude Fine Line diamond stylus. Its slim profile allows it to track high-frequency information with exceptional precision, while its larger contact area reduces distortion and record wear. The result is a clean, accurate sound with excellent separation and a sense of space around instruments.

The cartridge’s lightweight ABS body and aluminium frame provide structural stability, while neodymium magnets ensure efficient output. Its low internal impedance allows for broad compatibility with a wide range of phono stages and transformers, making integration straightforward.

Key Features:

• Moving coil cartridge with enhanced detail and resolution

• Nude Fine Line stylus for precise high-frequency tracking

• Balanced, accurate sound with excellent spatial presentation

• Reduced distortion and record wear

• Lightweight ABS body with aluminium frame

• Neodymium magnet system for optimal output

• Low internal impedance for wide system compatibility

• Easy top-mount installation with threaded holes

Technical Specifications:

• Output Voltage: 0.3 mV (at 1kHz, 5cm/sec)

• Channel Separation: > 23 dB (at 1kHz)

• Frequency Response: 20 Hz – 20 kHz (+2/-0 dB)

• Stylus Type: Nude Fine Line

• Tracking Force Range: 2.1 – 2.5 g

• Recommended Tracking Force: 2.3 g

• Cantilever Material: Aluminium Tube

• Recommended Load Impedance: > 20Ω

• Cartridge Weight: 9 g

Build & Design:

• Body Material: ABS (Acrylonitrile/Butadiene/Styrene)

• Frame: Aluminium with threaded mounting holes

• Magnet Type: Neodymium

What’s Included:

• Ortofon Quintet Bronze Cartridge

• Mounting screws (5mm and 7mm)

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the Quintet Bronze in person.
