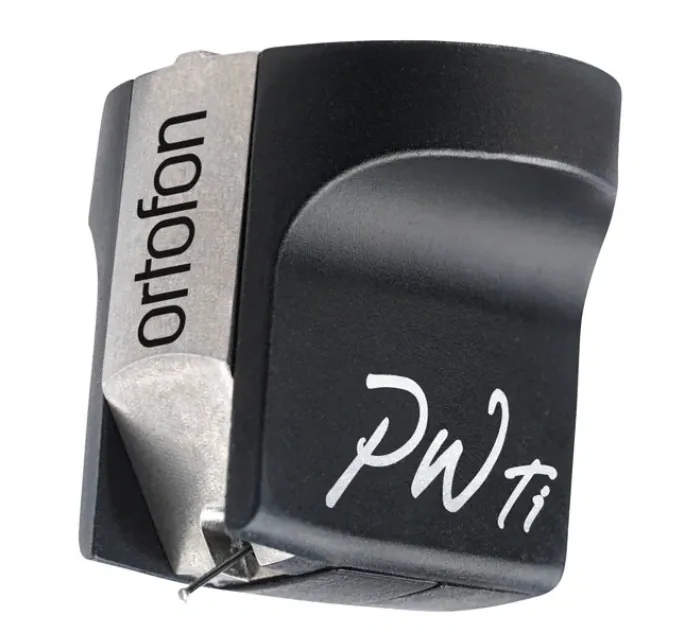

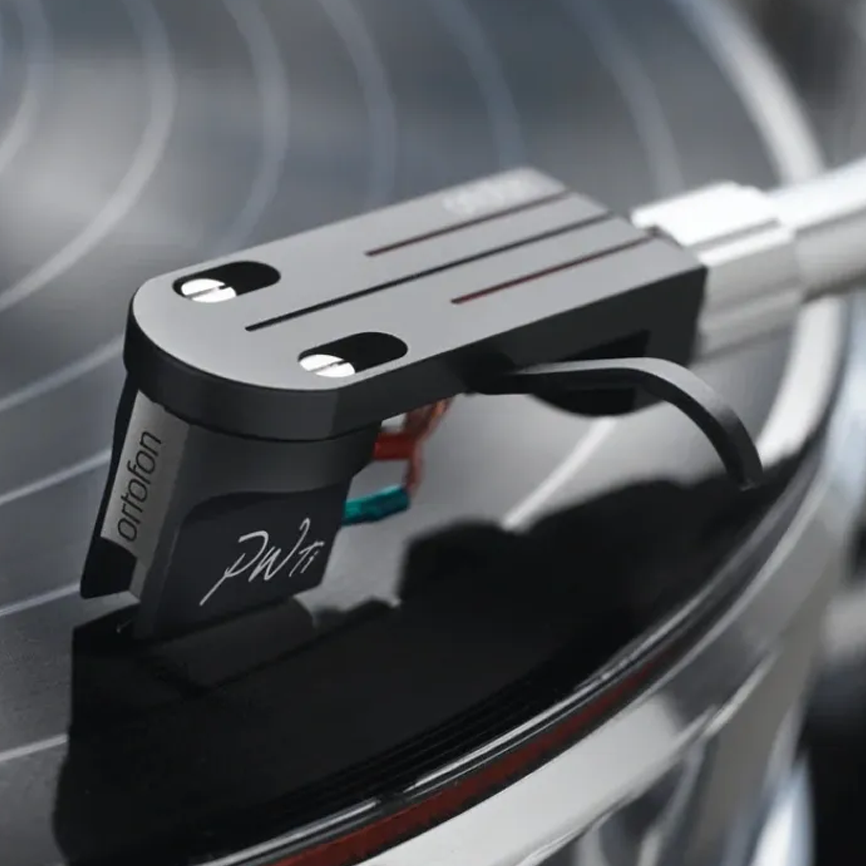

Ortofon MC Windfeld Ti Moving Coil Cartridge
The Ortofon MC Windfeld Ti is a world-class moving coil cartridge, introduced as an evolution of the original MC Windfeld and created as a tribute to Ortofon’s former chief engineer, Per Windfeld. Designed to push the boundaries of analogue sound reproduction, it delivers a lifelike, dynamic, and highly detailed listening experience.
At the core of the MC Windfeld Ti is a titanium internal structure produced using Selective Laser Melting (SLM) technology. This advanced process fuses fine titanium particles layer by layer to create an انتہائی rigid yet lightweight body. The result is improved structural integrity, reduced resonance, and enhanced dynamic performance.
Ortofon’s expertise in vibration control, magnetism, and mechanical design is evident throughout. The cartridge features a three-point contact system for optimal mechanical integration with the tonearm, ensuring stability and efficient energy transfer. A low output impedance of 7 ohms and moderate compliance allow compatibility with a wide range of high-end turntables and phono systems.
The MC Windfeld Ti is equipped with a Nude Ortofon Replicant 100 stylus mounted on a boron cantilever, offering precise tracking and exceptional detail retrieval. It also incorporates a Wide Range Damping (WRD) system and Field Stabilizing Element (FSE), improving linearity and control across the frequency range. The coil system uses Ortofon’s Aucurum 6NX gold-plated copper wire for high signal purity and minimal transmission loss.
Key Features:
• Flagship moving coil cartridge design
• Developed as an evolution of the original MC Windfeld
• Tribute to Ortofon engineer Per Windfeld
• SLM titanium core for increased rigidity and reduced resonance
• Nude Replicant 100 stylus on boron cantilever
• Wide Range Damping (WRD) system for frequency control
• Field Stabilizing Element (FSE) for improved linearity
• Aucurum 6NX gold-plated copper coil wire
• Strong neodymium magnet system
• Designed for compatibility with high-end turntable systems
Technical Highlights:
• Ultra-rigid, lightweight titanium structure
• Reduced energy loss and improved dynamic response
• Exceptional clarity, detail, and sound staging
• Stable tracking with high precision
• Broad system compatibility due to moderate compliance
Specification:
• Output Voltage (1 kHz, 5 cm/sec): 0.2 mV
• Channel Balance (1 kHz): < 0.5 dB
• Channel Separation (1 kHz): > 25 dB
• Channel Separation (15 kHz): > 20 dB
• Frequency Range (-3 dB): 10 Hz – 50 kHz
• Frequency Response: 20 Hz – 20 kHz (+2 / -1 dB)
• Tracking Ability (315 Hz): > 90 µm
• Compliance (dynamic, lateral): 13 µm/mN
• Stylus: Nude Ortofon Replicant 100
• Cantilever: Boron
• Stylus Tip Radius: r/R 5/100 µm
• Tracking Force Range: 2.0 – 2.5 g
• Recommended Tracking Force: 2.3 g
• Tracking Angle: 23°
• Internal Impedance (DC resistance): 7 Ω
• Recommended Load Impedance: > 10 Ω
• Coil Wire Material: Aucurum
• Body Material: SLM Titanium / Stainless Steel
• Weight: 11 g
What’s Included:
• Ortofon MC Windfeld Ti Cartridge
• Documentation
Note:
This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the MC Windfeld Ti in person.
