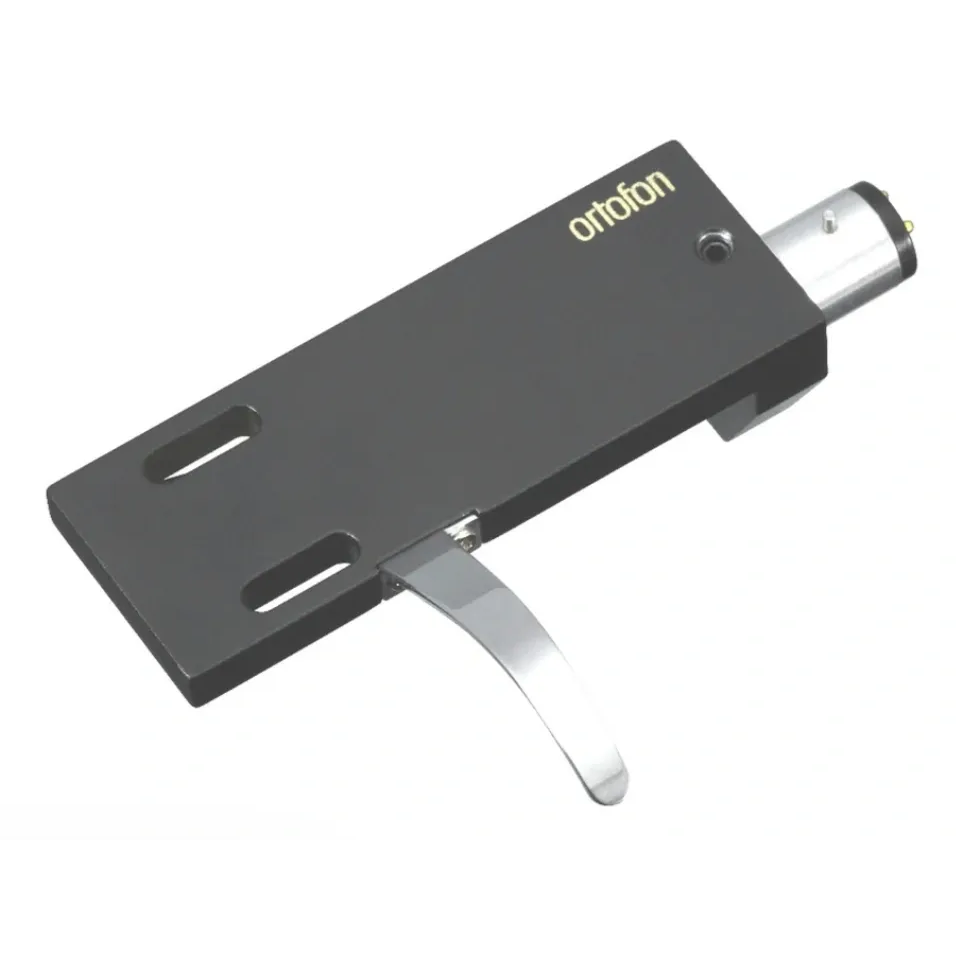

Ortofon LH-4000 turntable headshell

Ortofon LH-4000 Headshell

The Ortofon LH-4000 is a high-quality headshell designed for HiFi applications, offering a clean, minimalist design and reliable performance. Built from solid aluminium, it provides a durable and stable platform for accurate cartridge mounting and playback.

The LH-4000 is suitable for a wide range of cartridges and is particularly recommended for use with the Ortofon MC Quintet series. Its straightforward design makes it a practical choice for consistent performance and ease of use.

The headshell comes supplied with lead wires for quick and convenient connection. Ortofon cartridges use a standard colour coding system for terminals: red and green for the right channel (hot and ground), and white and blue for the left channel (hot and ground). The green terminal is used for grounding the cartridge housing or motor system where applicable.

For best results, it is recommended to connect the lead wires to both the cartridge and headshell before mounting, ensuring correct orientation of the leads. Ortofon cartridge terminal pins have a diameter of 1.2 mm, while Ortofon headshell pins measure 1.0 mm.

Key Features:

• High-quality HiFi headshell
• Solid aluminium construction
• Clean and minimalist design
• Stable platform for accurate cartridge mounting
• Compatible with a wide range of cartridges
• Particularly suited to Ortofon MC Quintet series
• Includes lead wires for easy installation

Technical Highlights:

• Durable construction for long-term use
• Reduced vibration for cleaner sound reproduction
• Simple and reliable setup
• Consistent performance across a range of systems

Specification:

• Mounting Distance: 39.5 mm – 45.6 mm
• Headshell Material: Solid aluminium
• Weight (without screws): 14.3 g
• Headshell Length: 51.9 mm
• Headshell Width: 19.1 mm

What’s Included:

• Ortofon LH-4000 Headshell
• Headshell lead wires

Note:

This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the LH-4000 in person.
