Ortofon Cadenza red MC phono cartridge

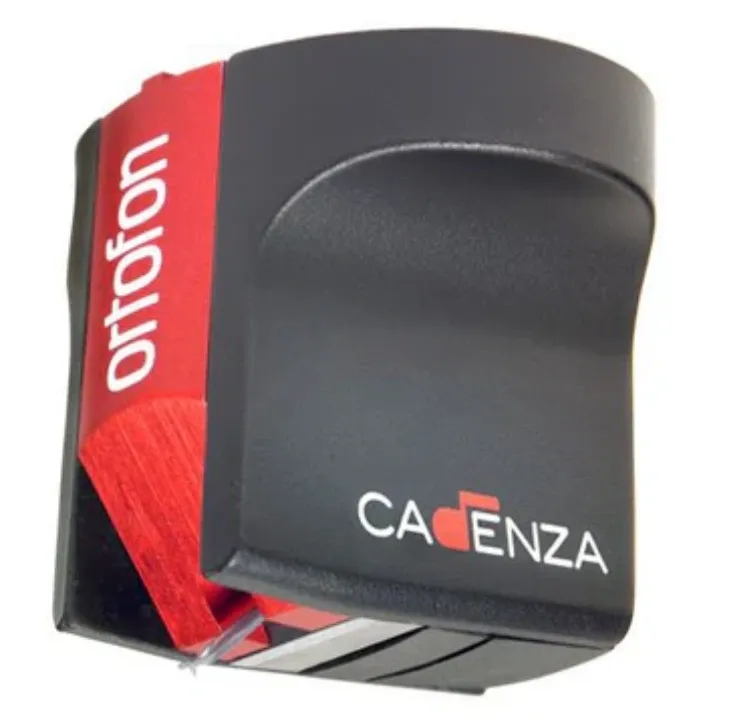

Ortofon MC Cadenza Red Moving Coil Cartridge
Available to experience in-store at the Spinning Room showroom

The Ortofon Cadenza Series represents a significant advancement in moving coil cartridge design, combining refined engineering with carefully selected materials to deliver high levels of performance and musical accuracy. Developed to push both new and existing technologies, the range offers exceptional detail retrieval and tonal balance.

Key innovations across the series include cobalt-iron pole pieces, an improved armature winding process, and extruded aluminium housings. These enhancements allow for more precise reproduction of analogue information while maintaining structural stability and consistency. The series also includes a dedicated mono model for microgroove records.

Each cartridge in the Cadenza range has its own distinct sonic character, providing different listening experiences across the lineup.

Key Features:

• Advanced moving coil cartridge design
• Cobalt-iron pole pieces for improved magnetic efficiency
• Refined armature winding process for enhanced signal accuracy
• Extruded aluminium housing for structural integrity
• Wide range of models with distinct sonic signatures
• Includes dedicated mono cartridge option

Model Overview:

• Cadenza Mono – true mono cartridge for microgroove vinyl playback
• Cadenza Red – relaxed, open sound with warmth and depth
• Cadenza Blue – increased dynamics, resolution, and detail
• Cadenza Bronze – highly detailed and balanced presentation
• Cadenza Black – maximum performance with neutrality and precision

The Cadenza Red is designed to deliver a relaxed and homogeneous sound with moderate dynamics and a spacious stereo image. It offers a balanced presentation with excellent depth and musical cohesion.

It features a Nude Fine Line stylus mounted on a cylindrical aluminium cantilever, providing precise tracking and smooth detail retrieval. The stylus tip radius is r/R 8/40 µm. The internal coils are made from 6NX (99.9999%) pure silver wire, ensuring high signal purity. An improved armature winding process contributes to better channel balance and overall performance.

Technical Highlights:

• Nude Fine Line stylus on aluminium cantilever
• 6NX pure silver coil wire
• Improved armature winding for better channel balance
• Relaxed, spacious sound with strong stereo imaging
• Balanced tonal presentation with good depth

Specification:

• Output Voltage (1 kHz, 5 cm/sec): 0.45 mV
• Channel Balance: < 1.5 dB
• Channel Separation (1 kHz): > 23 dB
• Channel Separation (15 kHz): > 15 dB
• Frequency Range (-3 dB): 20 Hz – 50 kHz
• Frequency Response: 20 Hz – 20 kHz (+3 / -1 dB)
• Tracking Ability (315 Hz): 80 µm
• Compliance (dynamic, lateral): 12 µm/mN
• Stylus Type: Nude Fine Line
• Cantilever: Aluminium
• Stylus Tip Radius: r/R 8/40 µm
• Tracking Force Range: 2.2 – 2.7 g
• Recommended Tracking Force: 2.5 g
• Tracking Angle: 20°
• Internal Impedance (DC resistance): 5 Ω
• Recommended Load Impedance: 50 – 500 Ω
• Cartridge Body Material: Stainless steel / Aluminium
• Colour: Red / Black
• Weight: 10.7 g

What’s Included:

• Ortofon MC Cadenza Red Cartridge
• Documentation

Note:

This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the Cadenza Red in person.
