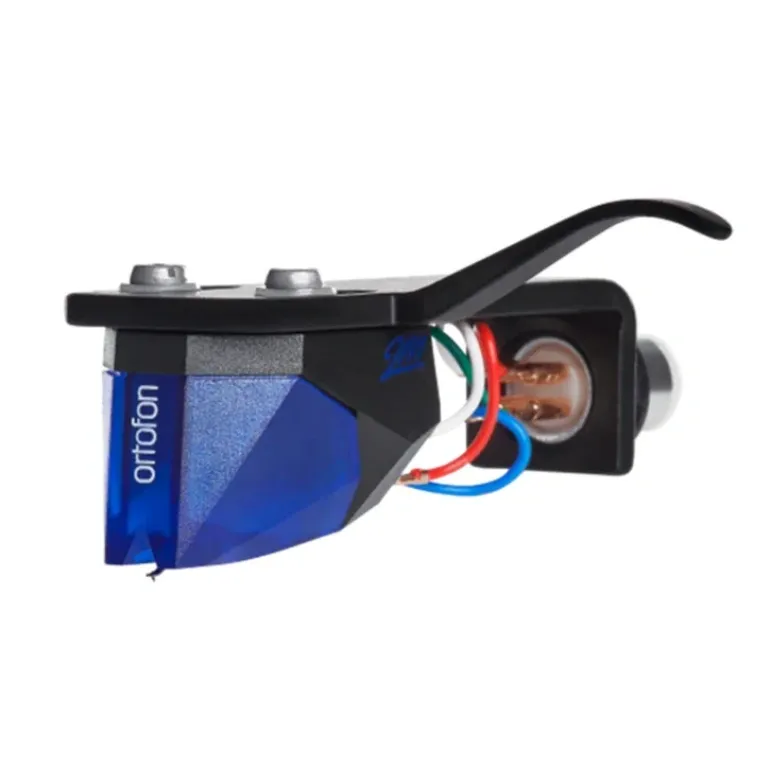

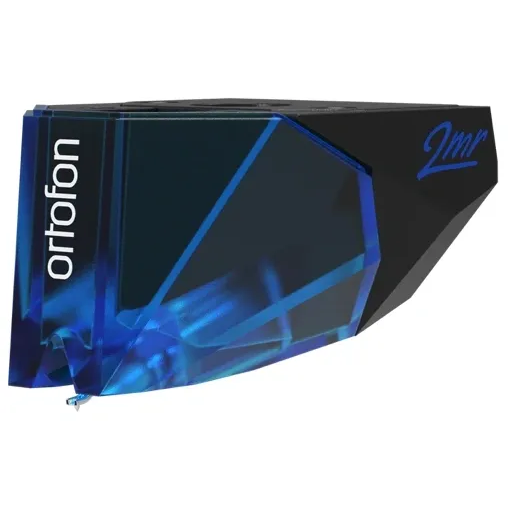

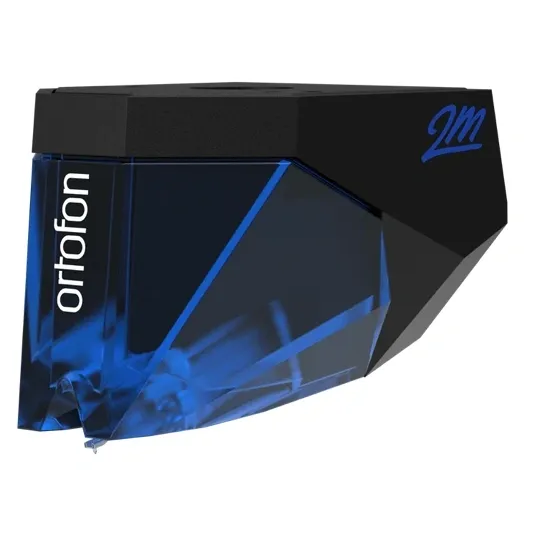

Ortofon 2M Blue Moving Magnet Cartridge
The Ortofon 2M Blue is a high-performance moving magnet cartridge designed to deliver increased detail, resolution, and dynamic expression. Building on the foundation of the 2M Series, it offers an open and engaging sound with improved clarity compared to entry-level models.
The 2M Series features Ortofon’s trademark split pole pin technology, originally introduced in earlier ranges, which allows moving magnet cartridges to achieve a flatter frequency response similar to moving coil designs. Combined with an improved engine design, the 2M Blue delivers a higher output and a high level of sonic accuracy.
The cartridge is fitted with a Nude Elliptical diamond stylus, providing precise tracking and improved detail retrieval across the frequency range. This results in a more open sound with greater dynamics and refinement compared to the 2M Red.
Optimised for ease of installation, the 2M Blue is designed to fit a wide range of turntables and tonearms. Its weight and dimensions ensure broad compatibility, while its performance works well with a variety of phono preamps.
Key Features:
• High-performance moving magnet cartridge
• Nude Elliptical diamond stylus for improved detail and tracking
• Split pole pin technology for flatter frequency response
• Upgraded engine with increased output
• Open, dynamic sound with enhanced resolution
• Designed for easy mounting and broad compatibility
• Upgradeable within the Ortofon 2M range
Technical Highlights:
• Improved dynamics and detail over entry-level models
• Accurate and balanced sound reproduction
• Flat frequency response similar to moving coil designs
• Reliable tracking across the frequency range
• Versatile performance across different systems
Specification:
• Output Voltage (1 kHz, 5 cm/sec): 5.5 mV
• Channel Balance (1 kHz): 1.5 dB
• Channel Separation (1 kHz): 25 dB
• Channel Separation (15 kHz): 15 dB
• Frequency Range (-3 dB): 20 Hz – 25,000 Hz
• Frequency Response: 20 Hz – 20 kHz (+2 / -1 dB)
• Tracking Ability (315 Hz): 80 µm
• Compliance (dynamic, lateral): 20 µm/mN
• Stylus Type: Nude Elliptical
• Stylus Tip Radius: r/R 8/18 µm
• Tracking Force Range: 1.6 – 2.0 g
• Recommended Tracking Force: 1.8 g
• Tracking Angle: 20°
• Internal Impedance (DC resistance): 1.3 kΩ
• Internal Inductance: 700 mH
• Recommended Load Resistance: 47 kΩ
• Recommended Load Capacitance: 150 – 300 pF
• Cartridge Colour: Black / Blue
• Weight: 7.2 g
What’s Included:
• Ortofon 2M Blue Cartridge
• Documentation
Note:
This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the 2M Blue in person.
