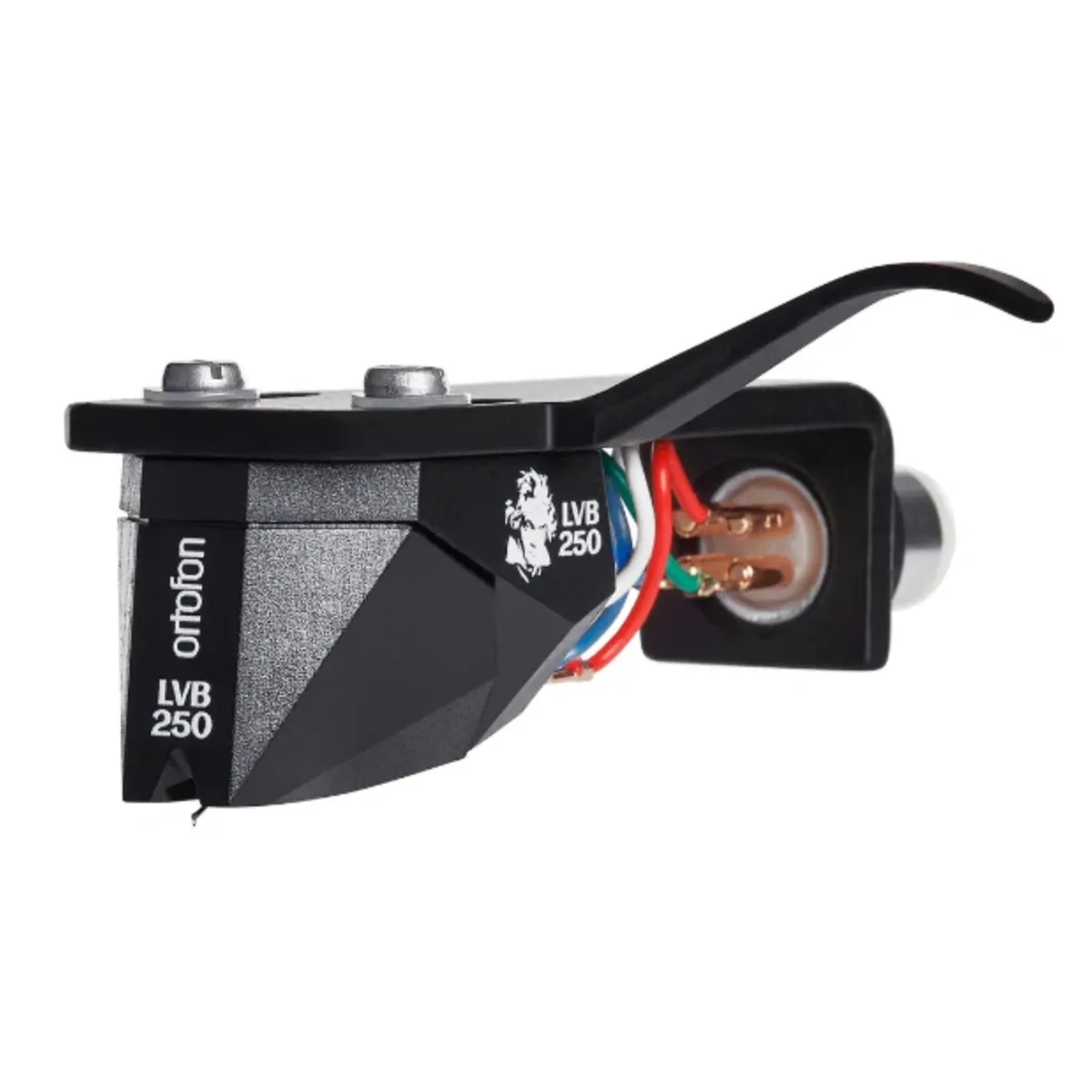

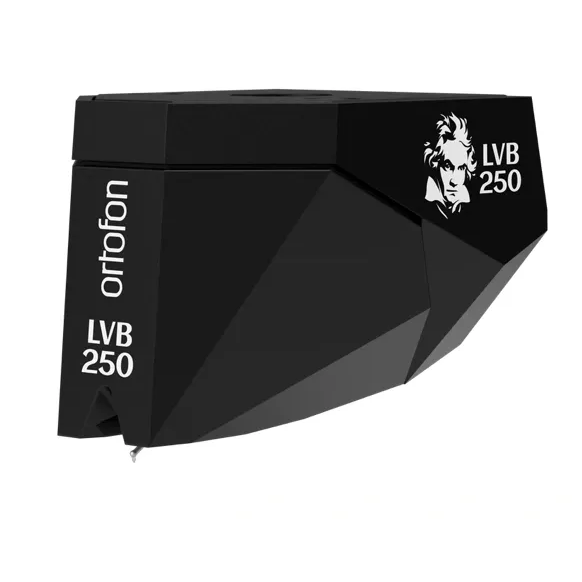

Ortofon 2M Black LVB 250 Moving Magnet Cartridge
The Ortofon 2M Black LVB 250 is a special edition moving magnet cartridge, created to celebrate the 250th anniversary of Ludwig van Beethoven. Building on the widely acclaimed 2M Black, this model introduces upgraded materials and design refinements to deliver even greater precision, clarity, and musical detail.
The cartridge features a Nude Shibata diamond stylus mounted on a boron cantilever. The highly polished, slim profile of the Shibata stylus ensures an exceptionally wide contact area with the record groove, allowing for highly accurate tracking and detailed reproduction across the entire frequency range, including the highest frequencies.
The use of a boron cantilever provides increased stiffness while remaining lightweight, improving speed, responsiveness, and overall transparency. The result is a sound that is open, fast, detailed, and highly dynamic, maintaining the musicality the 2M Black is known for while pushing performance further.
Key Features:
• Special edition cartridge celebrating Beethoven’s 250th anniversary
• Based on the award-winning 2M Black design
• Nude Shibata diamond stylus for high-resolution playback
• Boron cantilever for improved rigidity and responsiveness
• Wide groove contact for enhanced detail retrieval
• Open, dynamic, and highly detailed sound
• Compatible with a wide range of tonearms
Technical Highlights:
• Exceptional high-frequency detail and clarity
• Fast, responsive performance with strong dynamics
• Improved transparency and precision
• Accurate tracking with minimal distortion
• High output moving magnet design
Specification:
• Output Voltage (1 kHz, 5 cm/sec): 5 mV
• Channel Balance (1 kHz): < 1 dB
• Channel Separation (1 kHz): > 27 dB
• Channel Separation (15 kHz): 15 dB
• Frequency Response: 20 Hz – 20 kHz (+2 / -1 dB)
• Tracking Ability (315 Hz): 80 µm (typical)
• Compliance (dynamic, lateral): 22 µm/mN
• Stylus Type: Nude Shibata
• Stylus Tip Radius: r/R 6/50 µm
• Tracking Force Range: 1.5 – 1.7 g
• Recommended Tracking Force: 1.6 g
• Tracking Angle: 20°
• Internal Impedance (DC resistance): 1.2 kΩ
• Internal Inductance: 630 mH
• Recommended Load Resistance: 47 kΩ
• Recommended Load Capacitance: 150 – 300 pF
• Cartridge Colour: Black / Black
• Weight: 7.2 g
What’s Included:
• Ortofon 2M Black LVB 250 Cartridge
• Documentation
