Korf Audio TA-SF9 Mkii Tonearm

Korf Audio TA-SF9 MkII Tonearm

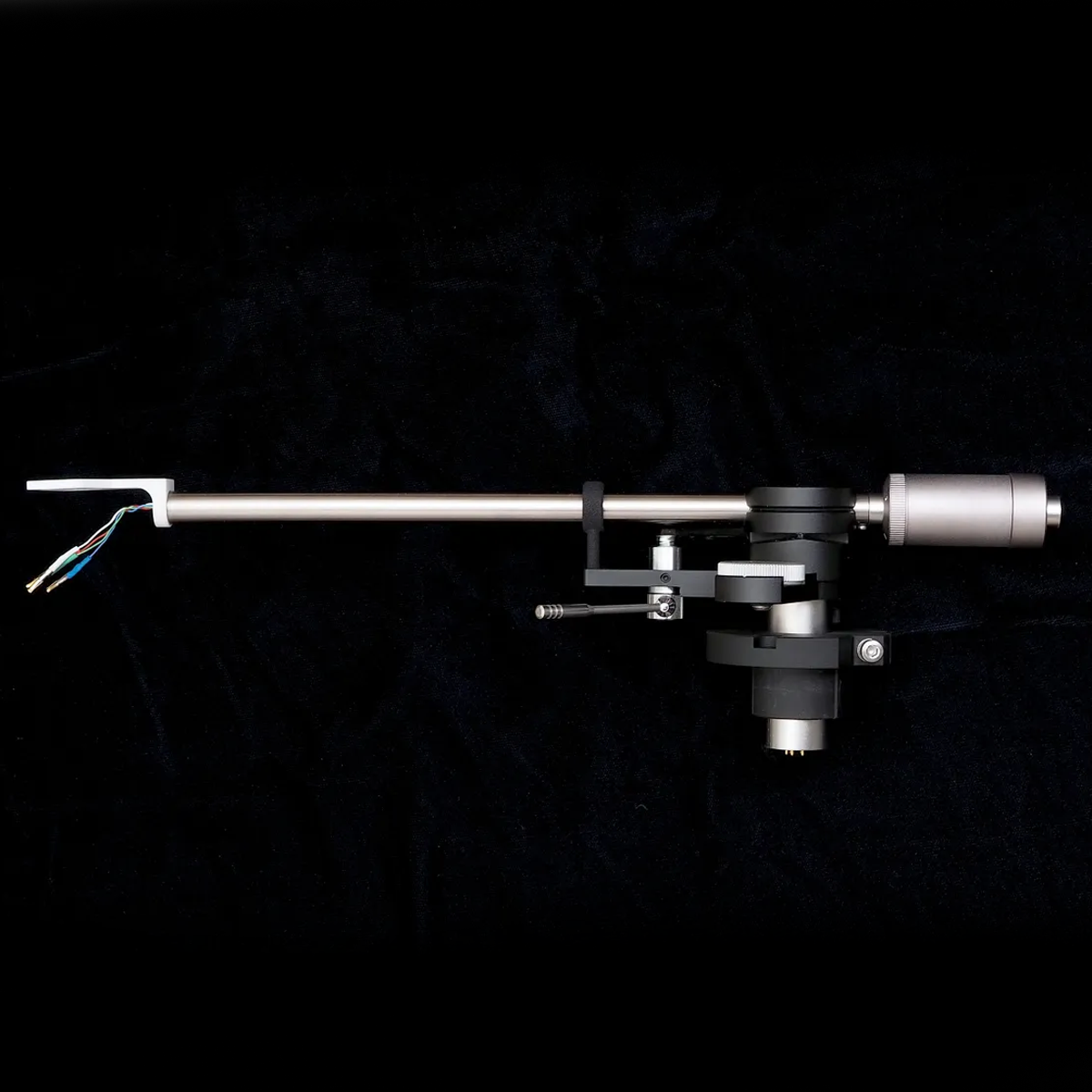

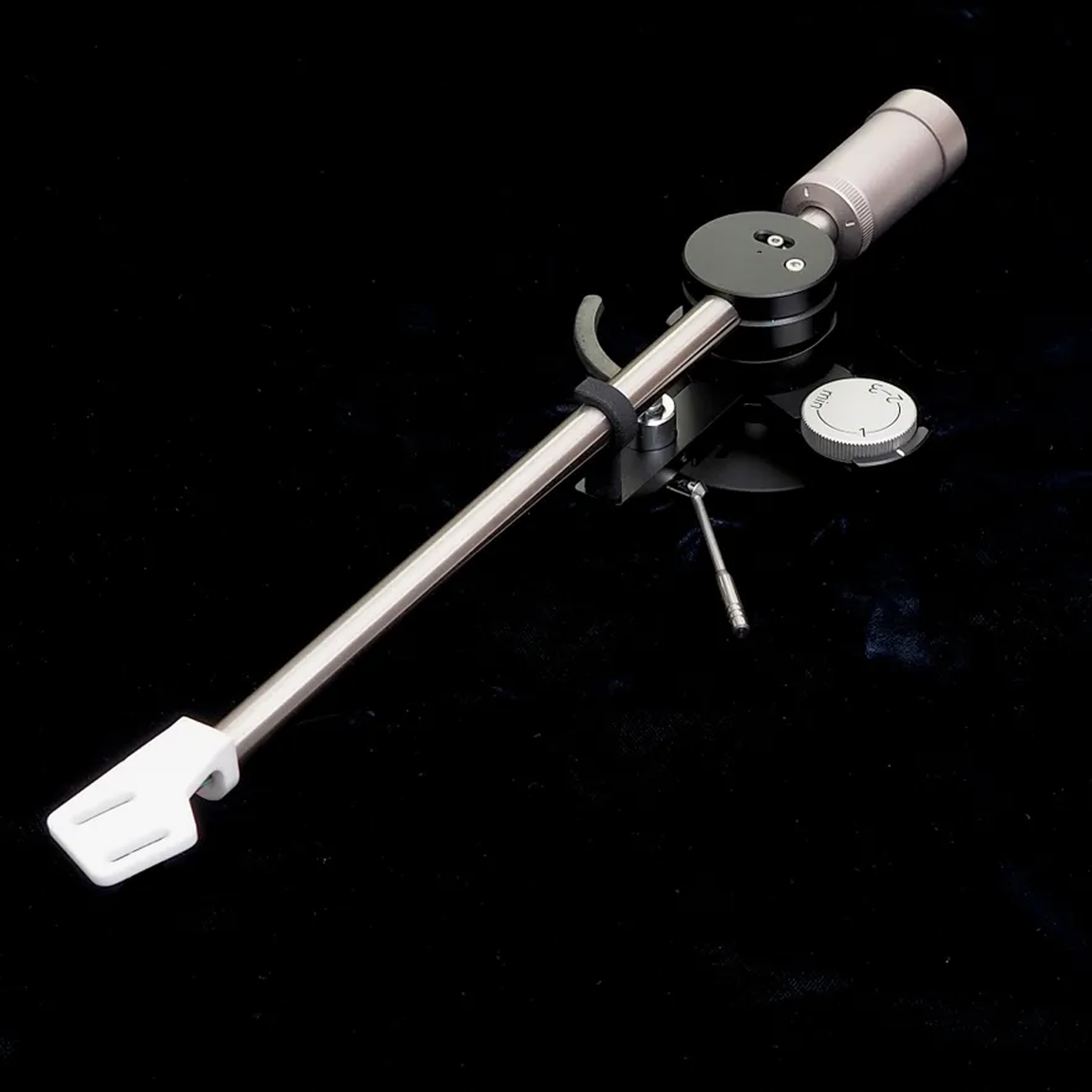

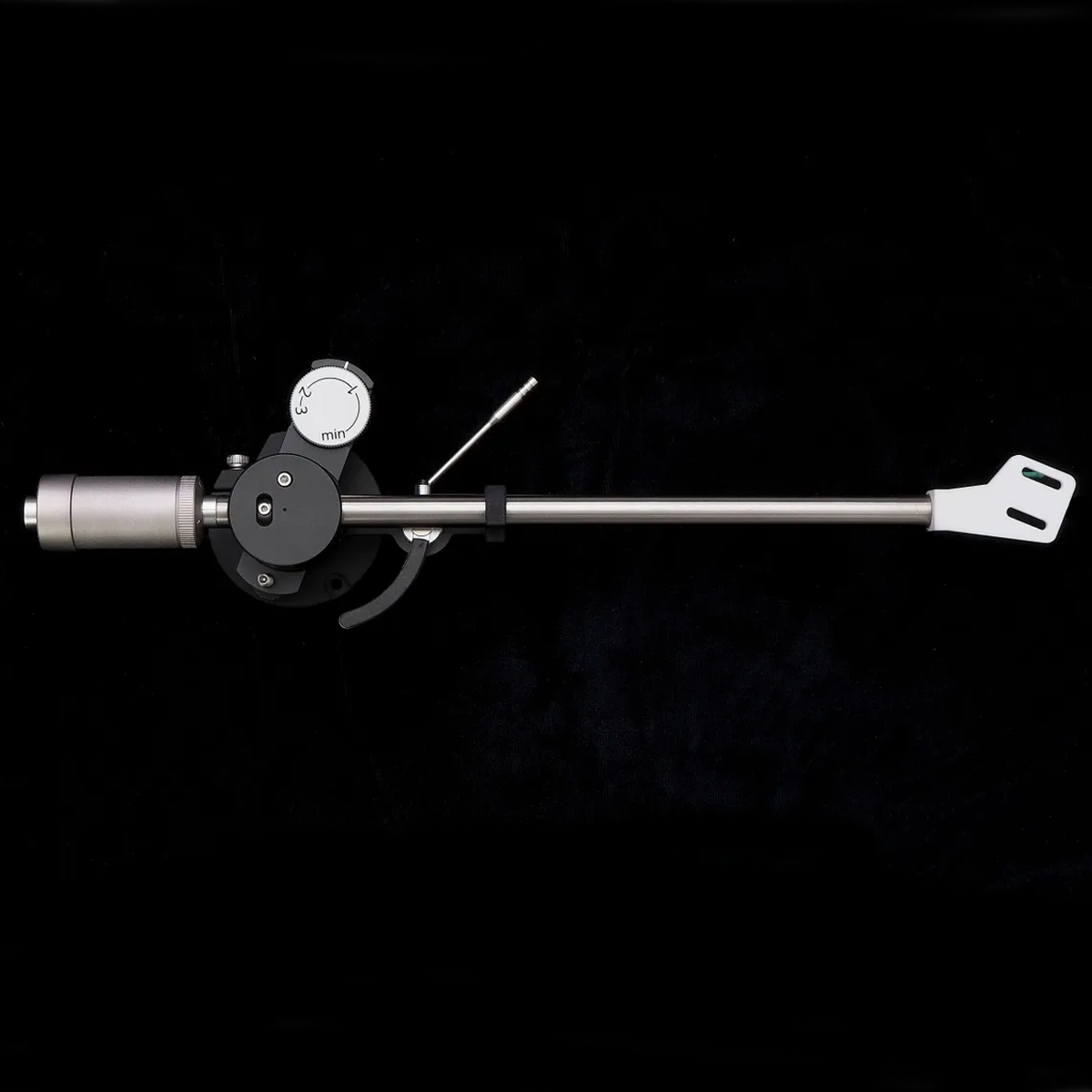

The Korf Audio TA-SF9 MkII is a precision-engineered straight tonearm, designed to deliver exceptional rigidity, stability, and sonic performance. Constructed from stainless steel, the arm tube offers significantly greater strength than aluminium or titanium, reducing unwanted resonance and improving overall clarity.

With a mounting distance of 214 mm from spindle to bearing, the TA-SF9 MkII is compatible with a wide range of turntables. It is available with either a standard JIS/Linn mount or an optional SME mount, making installation straightforward across different setups.

At the heart of the design are aerospace-grade zero stiction flexure bearings, providing ultra-smooth, frictionless movement. This ensures precise tracking and allows the cartridge to extract maximum detail from the record groove.

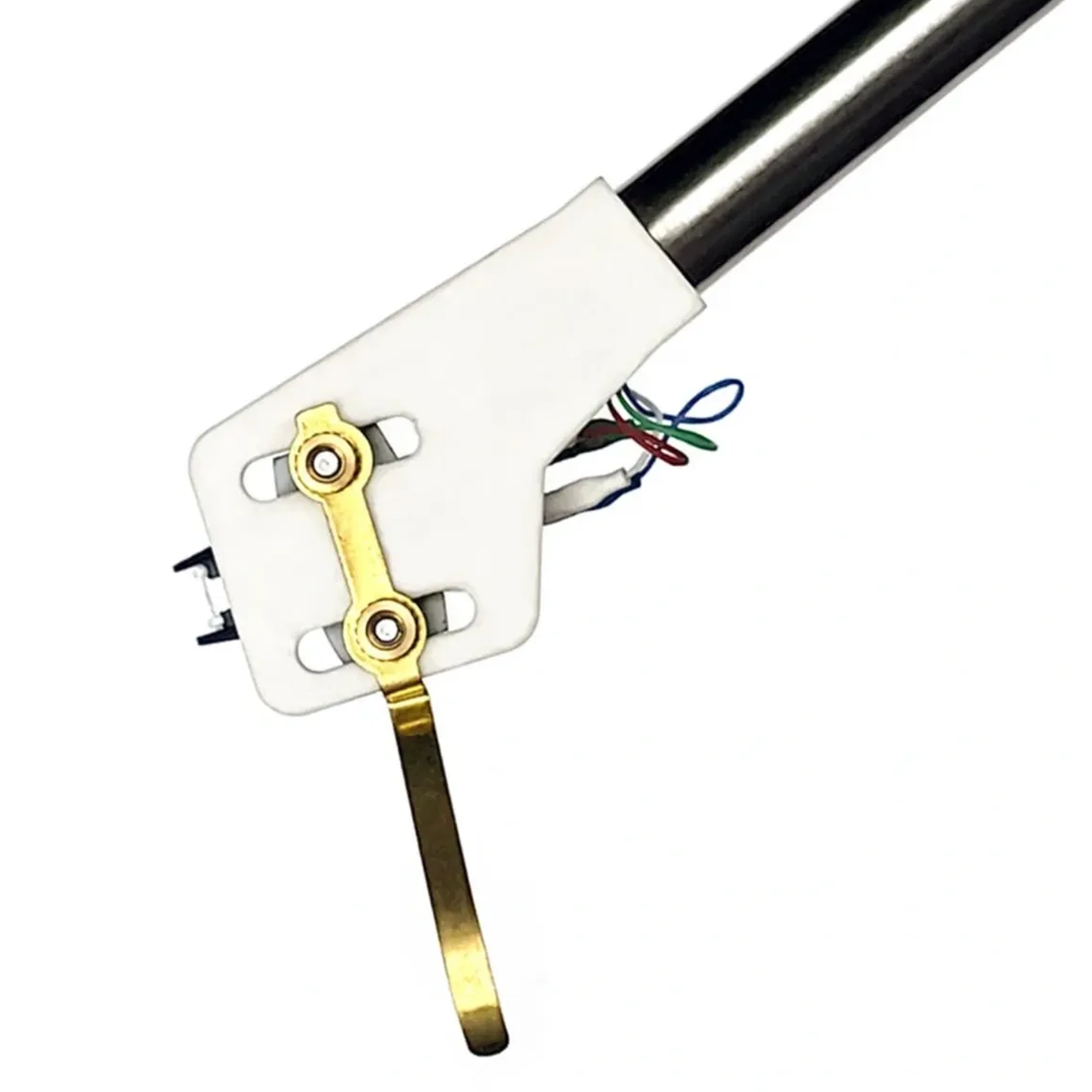

The tonearm comes complete with the Korf Audio ceramic headshell, widely regarded as one of the finest available. This combination enhances signal integrity and minimises energy storage, contributing to a highly accurate and natural sound.

Korf tonearms are designed from a clean-sheet approach, focusing on quality of motion, rigidity, low energy storage, signal integrity, stability, and longevity. The result is a presentation characterised by exceptional clarity, holographic imaging, lifelike dynamics, accurate tonality, extended highs, and deep, controlled bass.

The MkII version introduces several key improvements. A stainless steel vertical column provides a more solid foundation, while a steel vertical shaft enhances bass depth and definition. Internal redesigns further increase rigidity, and the overall aesthetic has been refined for a cleaner, more premium appearance. A completely new azimuth adjustment mechanism allows for smoother and more precise setup. Structural set screws have been removed for improved integrity, leaving only the arm lift adjustment. The warranty has also been extended to three years.

Key Features:

• 9-inch pivoting gimbal tonearm with fixed headshell

• Stainless steel arm tube for superior rigidity

• Aerospace-grade zero stiction flexure bearings

• Includes Korf ceramic headshell

• Designed for low energy storage and high signal integrity

• Improved MkII structure for enhanced performance

• New azimuth adjustment mechanism

• Available in JIS/Linn or SME mounting options

• Clean, refined design with minimal structural fasteners

Technical Specifications:

• Effective Length: 229 mm

• Pivot to Spindle Distance: 214 mm

• Offset Angle: 22°

• Effective Mass: 19 g

• Horizontal Bearing: Flexure pivot

• Vertical Bearings: Ceramic hybrid rolling bearings

• Arm Tube Material: Stainless steel

• Headshell Material: Alumina ceramic

• Balance Type: Static

• Minimum Cartridge Weight: 5 g

• Maximum Cartridge Weight: 15 g (25 g with additional counterweight)

• Cable Connector: 5-pin MDIN male

• Internal Wiring: OCC Litz

• Mounting Types: JIS/Linn (min. 28 mm hole), SME

• Weight (without cartridge and mounting collar): max 350 g

What’s Included:

• Korf Audio TA-SF9 MkII tonearm

• Ceramic headshell

• Setup documentation

Warranty:

• 3 year manufacturer warranty

Note: All Korf Audio tonearms are built to order with an approximate lead time of 4 weeks. This product is available for in-store demonstration. Visit the Spinning Room showroom to experience the TA-SF9 MkII in person.
