Korf Audio 11" Tonearm

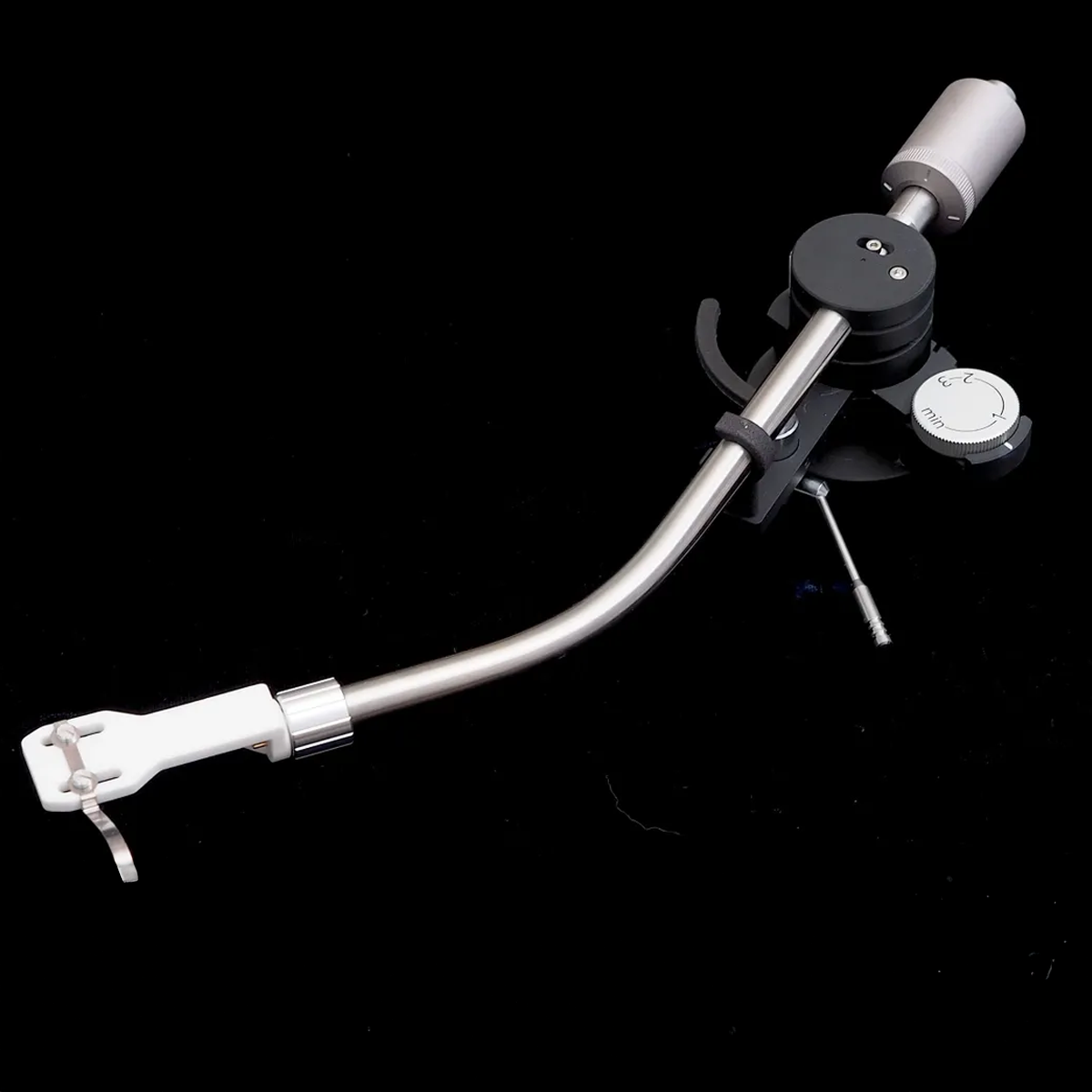

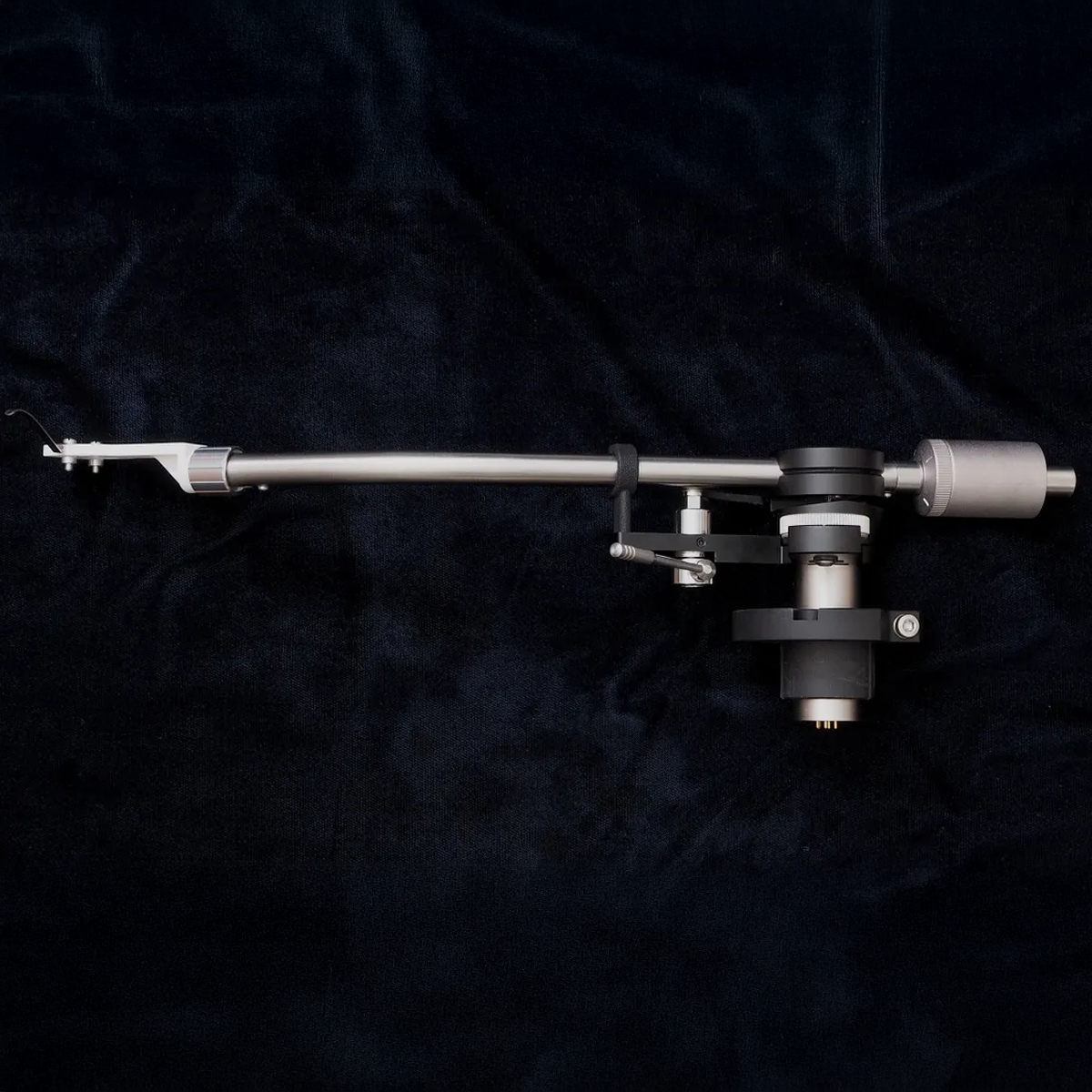

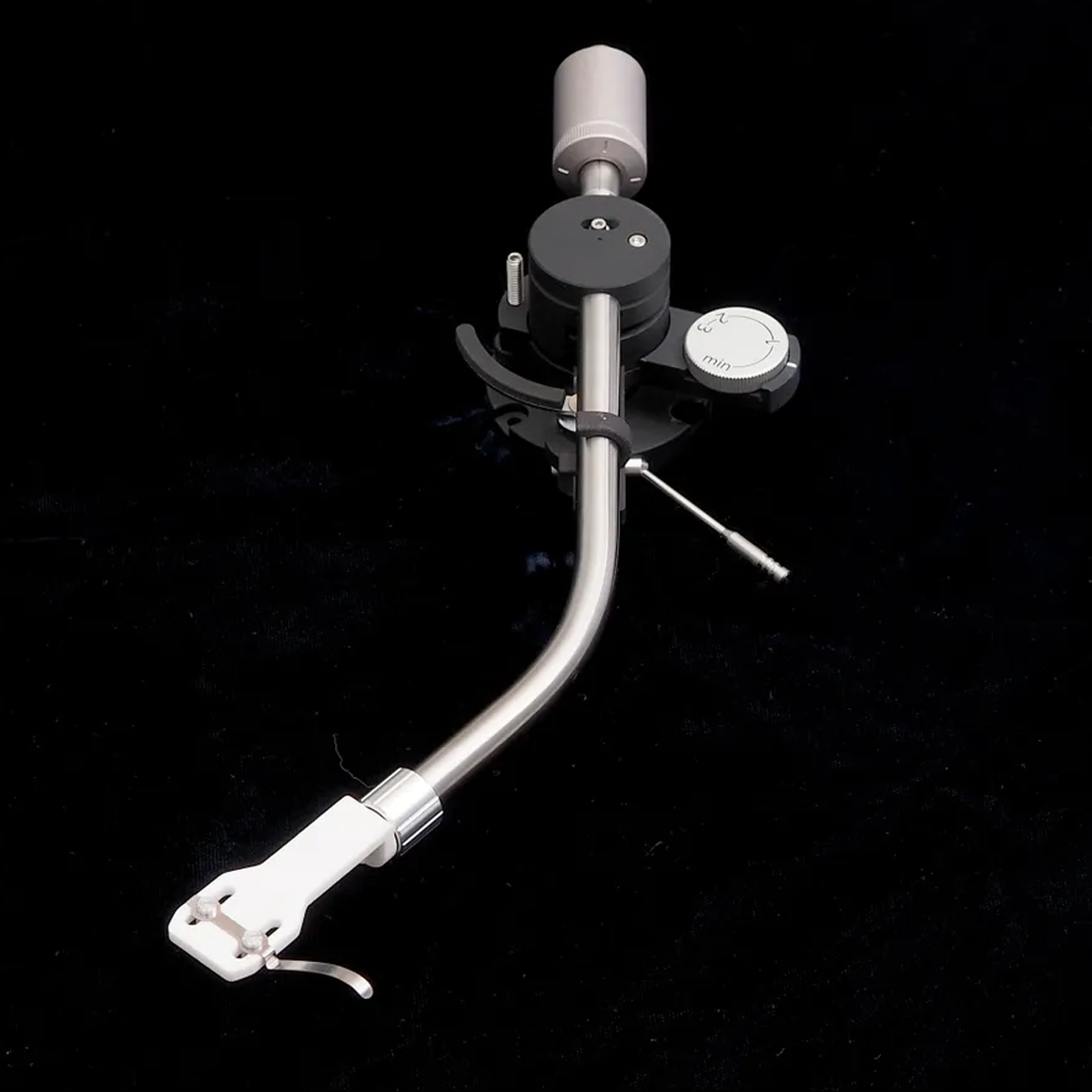

The Korf Audio 11" tonearm is a precision-engineered pivoting gimbal design, created to deliver exceptional tracking accuracy, stability, and sonic performance. With its extended 11-inch length, it reduces tracking error and distortion, allowing for a more natural and detailed presentation.
Constructed from stainless steel, the arm tube offers outstanding rigidity and control, minimising unwanted resonance and ensuring accurate signal retrieval from the record groove. The design combines advanced engineering with high-quality materials to achieve excellent clarity, imaging, and tonal balance.
The tonearm utilises a flexure pivot for the horizontal axis and ceramic hybrid rolling bearings for the vertical axis, providing ultra-smooth, low-friction movement. This ensures precise tracking and allows cartridges to perform at their full potential.
Compatibility is highly flexible, with support for Ortofon, SME, and JIS-type removable headshells. Mounting options include both JIS/Linn and SME configurations, making it suitable for a wide range of turntables.
Key Features:
-
11-inch pivoting gimbal tonearm
-
Stainless steel arm tube for high rigidity and low resonance
-
Flexure pivot horizontal bearing system
-
Ceramic hybrid rolling bearings for vertical movement
-

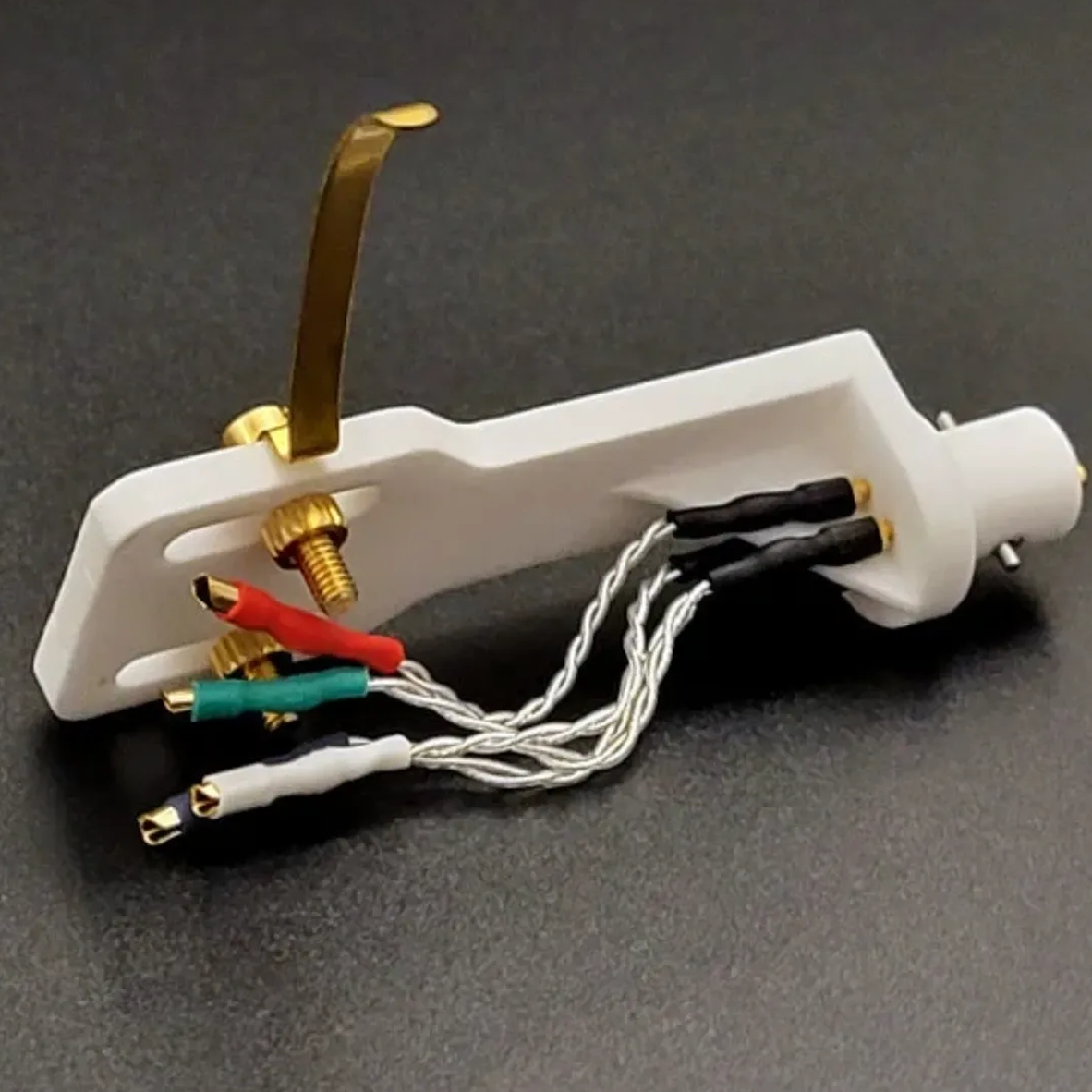

Removable headshell compatibility (Ortofon/SME/JIS type)
-
Designed for precise tracking and reduced distortion
-
Suitable for a wide range of cartridges and turntables
Technical Specifications:
-
Effective Length: 278 mm
-
Pivot to Spindle Distance: 265 mm
-
Offset Angle: 19°
-
Effective Mass (without headshell): 19 g
-
Effective Mass (with HS-A02 headshell): 29 g
-
Horizontal Bearing: Flexure pivot
-
Vertical Bearings: Ceramic hybrid rolling bearings
-
Arm Tube Material: Stainless steel
-
Headshell Connector: Ortofon / SME / JIS type
-
Balance Type: Static
-
Minimum Cartridge + Headshell Mass: 10 g
-
Maximum Cartridge + Headshell Mass: 35 g
-
Cable Connector: 5-pin MDIN male
-
Internal Wiring: 6N OFC Litz
-
Mounting Types: JIS/Linn (min. 28 mm hole), SME
-
Weight (without headshell and mounting collar): max 420 g
What’s Included:
-
Korf Audio 11" tonearm
-
Setup documentation
Note: This product is available for in-store demonstration. Visit the Spinning Room showroom to experience this tonearm in person.
