JICO Seto-Hori Remodel phono cartridge

JICO SETO-HORI REMODEL MC Cartridge

Please be advised, a time-consuming process is required to manufacture and deliver this product.

The JICO SETO-HORI REMODEL is a highly specialised moving coil cartridge that builds on the success of the original SETO-HORI, first released in 2019 to global acclaim. This updated version refines the concept further by fully integrating the cartridge and headshell into a single, precision-engineered unit for maximum performance.

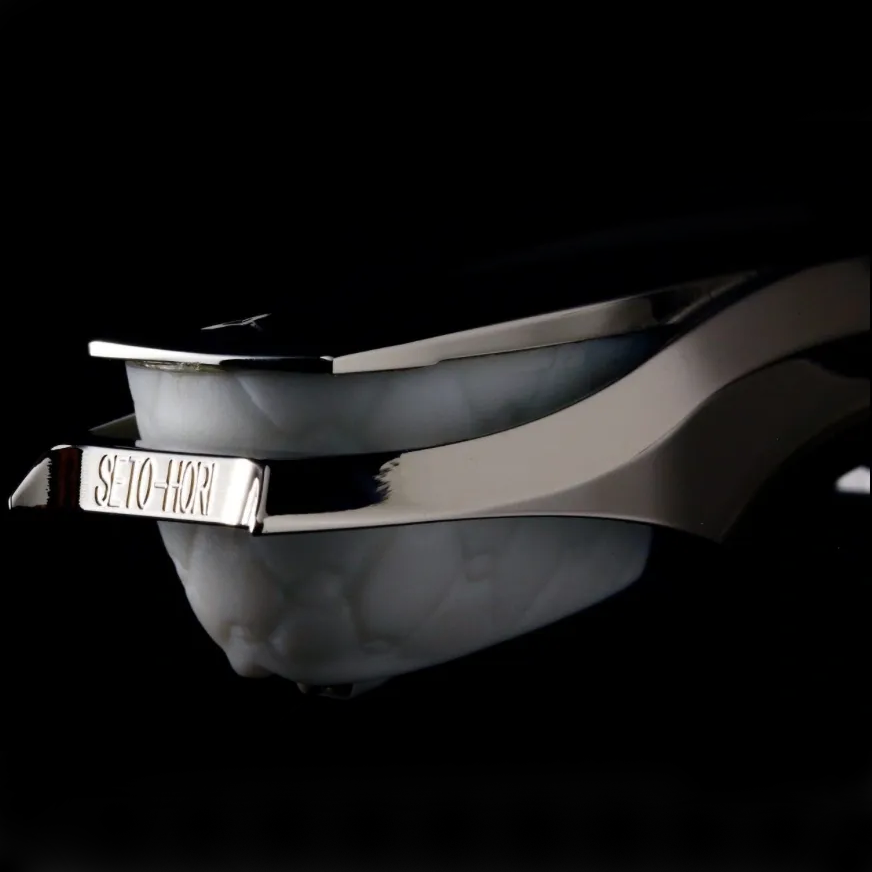

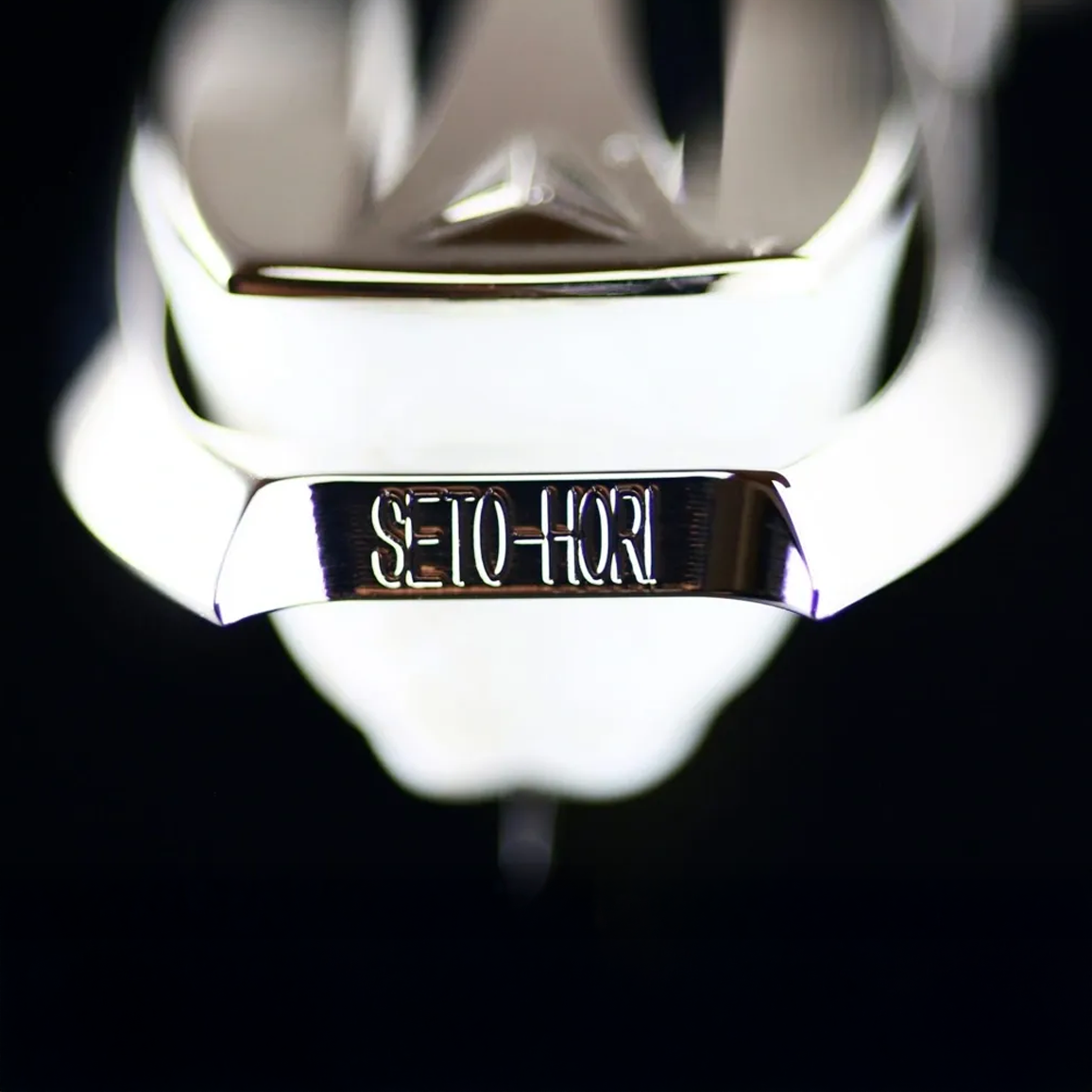

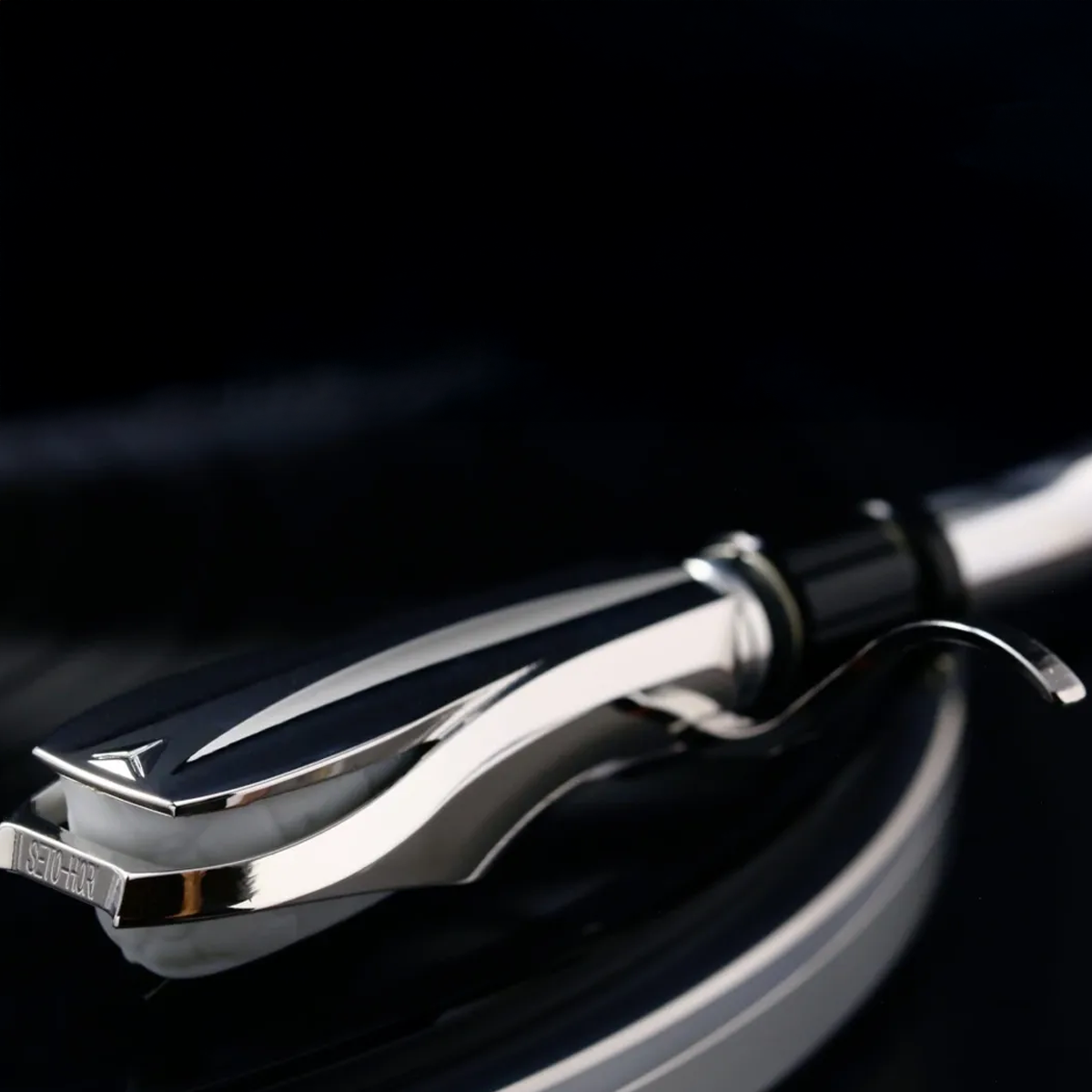

At the heart of the design is a unified headshell and cartridge body, machined from aluminium and copper alloy ingots. By aligning the centre of gravity directly along the tonearm’s centreline, the SETO-HORI REMODEL achieves exceptional tracking sensitivity and stability. The screw-free construction reduces unwanted resonance, allowing for cleaner, more accurate sound reproduction.

Inspired by technology used in NEUMANN cutting heads, the cartridge is designed to precisely control vibration and optimise magnetic field behaviour. This results in an extraordinary level of resolution, revealing fine detail and nuance from vinyl records.

A unique feature is the use of a ceramic “Setomono” enclosure, traditionally difficult to manufacture due to shrinkage during firing. Through skilled craftsmanship, JICO has successfully implemented this material to provide excellent insulation and protection for the cartridge’s delicate magnetic system.

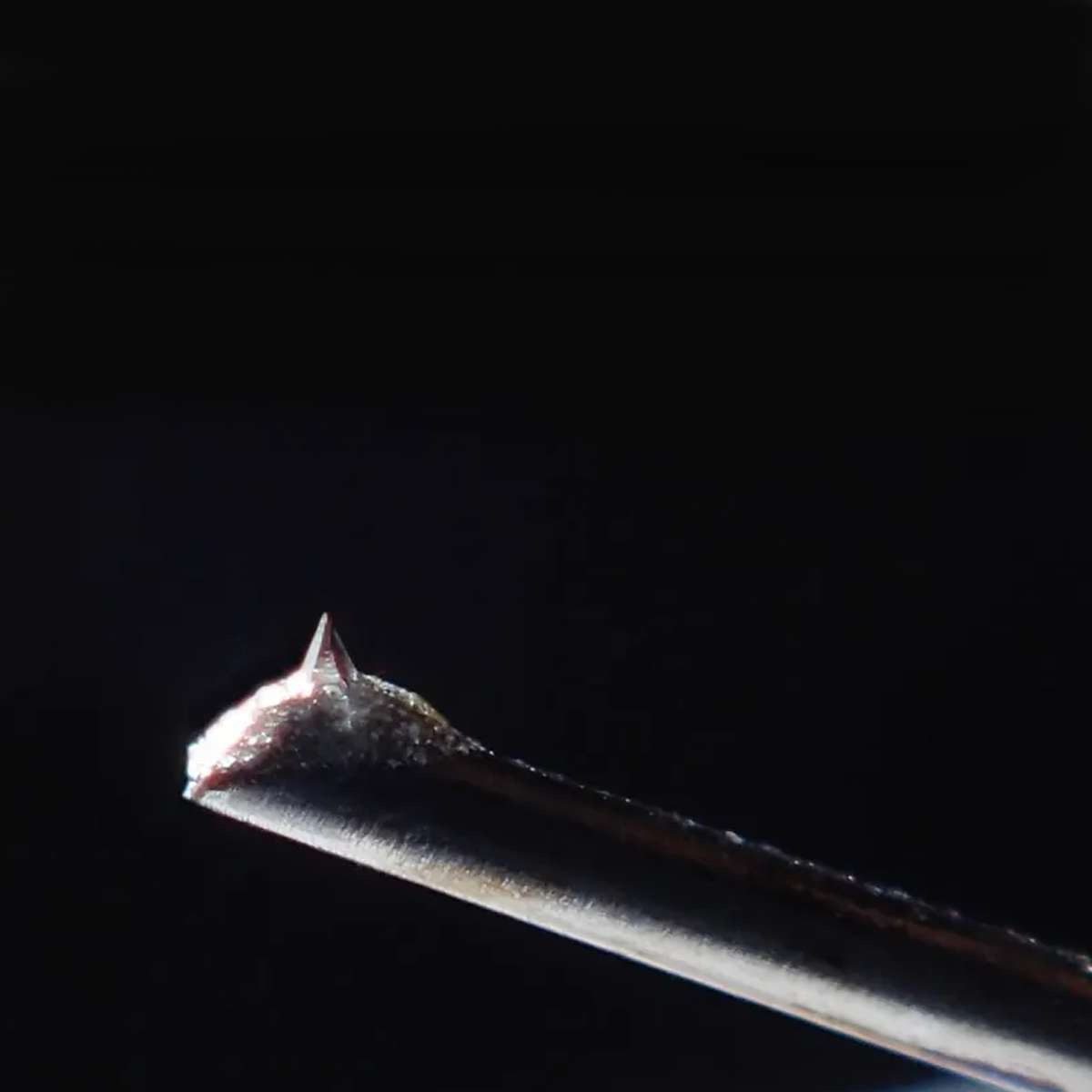

The Micro Ridge diamond stylus offers a highly detailed contact profile with a lifespan over three times that of standard stylus designs. Paired with a boron cantilever, known for its rigidity and responsiveness, the cartridge delivers precise tracking and extended frequency response.

The integrated headshell is fully machined using a 5-axis process, ensuring consistent vibration characteristics. Its carefully balanced mass helps reduce vertical movement frequency, minimising stress on the stylus and improving playback stability.

An electromagnetic noise-absorbing layer is included to stabilise magnetic behaviour, while high-quality lead wiring from Koike Analog Factory ensures clean signal transmission for high-resolution audio playback.

Key Features:

• Integrated cartridge and headshell design for optimal performance

• Precision-machined aluminium and copper alloy body

• Ceramic Setomono enclosure for magnetic stability and insulation

• Micro Ridge diamond stylus for extended lifespan and detail retrieval

• Boron cantilever for high rigidity and accurate tracking

• Screw-free construction to minimise resonance

• Centre-of-gravity alignment with tonearm axis

• Electromagnetic noise-absorbing layer for improved signal stability

• High-quality custom lead wiring for high-resolution sound

Technical Specifications:

• Type: Moving Coil (MC)

• Output Voltage: 2.0 mV / 1 kHz

• Impedance: 130 Ω

• Load Resistance: 47 kΩ

• Channel Separation: 25 dB / 1 kHz

• Output Balance: < 1.5 dB / 1 kHz

• Frequency Response: 15 Hz – 32,000 Hz

• Stylus: Micro Ridge diamond

• Cantilever: Boron

• Tracking Force: 1.8 – 2.2 g

• Tracking Ability: 70 μm / 2 g

• Tracking Angle: 26°

• Compliance:

  • Static: 18 × 10⁻⁶ cm/dyne

  • Dynamic: 10 × 10⁻⁶ cm/dyne

• Mass: Approx. 27.5 g

• Construction:

  • Cartridge housing: Ceramic (Seto)

  • Headshell: Aluminium + copper alloy (machined)

• Lead Wire:

  • 29 mm length

  • Oyaide 102SSC (positive)

  • Hitachi OFC (negative)

What’s Included:

• JICO SETO-HORI REMODEL MC cartridge with integrated headshell

• Presentation case

• Documentation

Note: This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the SETO-HORI REMODEL in person.
