Hegel V10 Phono Preamplifier
Available exclusively from the Spinning Room showroom – not available to purchase online.
The Hegel V10 is a modern reimagining of phono stage design, built on over 30 years of expertise in discrete transistor amplification. Engineered to be neutral, dynamic, and highly revealing, the V10 is designed to extract every detail from your vinyl collection—bringing you closer to the music and deeper into the groove.
Developed from the ground up, the V10 delivers exceptional transparency and a rich, expansive soundstage. Its advanced design ensures a pure signal path, allowing your records to sound as tangible and real as the medium itself.
Built for precision, the V10 features a dual-compartment chassis that physically separates power supplies from sensitive audio circuitry, eliminating interference. Ultra-low-noise JFET transistors are used in both Moving Magnet (MM) and Moving Coil (MC) stages, ensuring silent operation and accurate signal amplification.
Highly adaptable, the V10 offers extensive customisation options for gain, capacitance, and impedance—making it compatible with virtually any cartridge setup. Whether you prefer plug-and-play simplicity or fine-tuned optimisation, the V10 delivers outstanding performance.
Key Features:
- Ultra-low-noise discrete JFET input stage for MM and MC cartridges
- Neutral, dynamic, and highly detailed sound reproduction
- Dual-compartment chassis to eliminate electrical interference
- Balanced XLR and unbalanced RCA outputs
- Fully adjustable gain, capacitance, and impedance settings
- Subsonic filter to remove unwanted low-frequency noise
- Linear external power supply with dedicated transformer housing
- Plug-and-play MM setup with advanced optimisation options
- Award-winning performance (EISA Phono Stage 2021–2022)

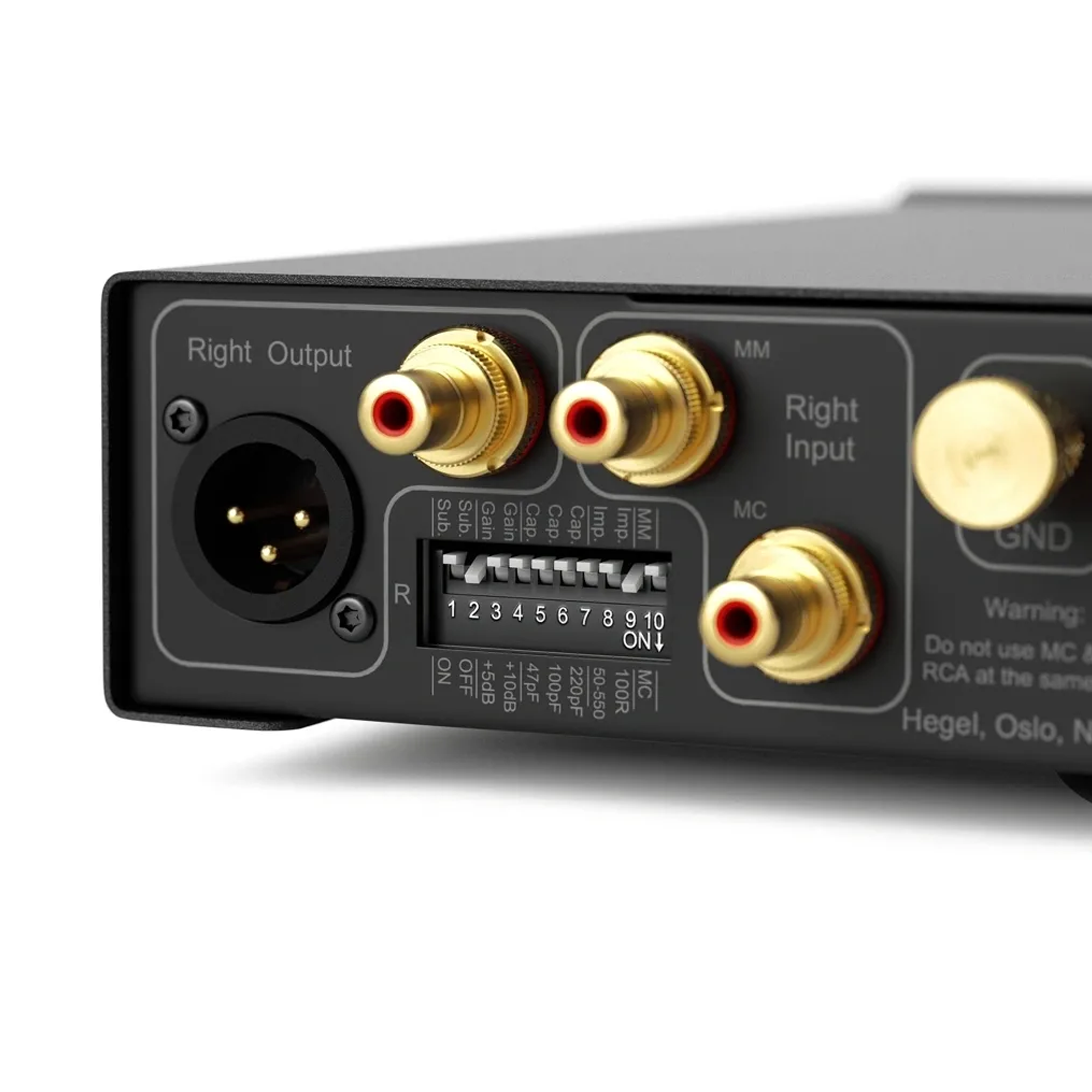

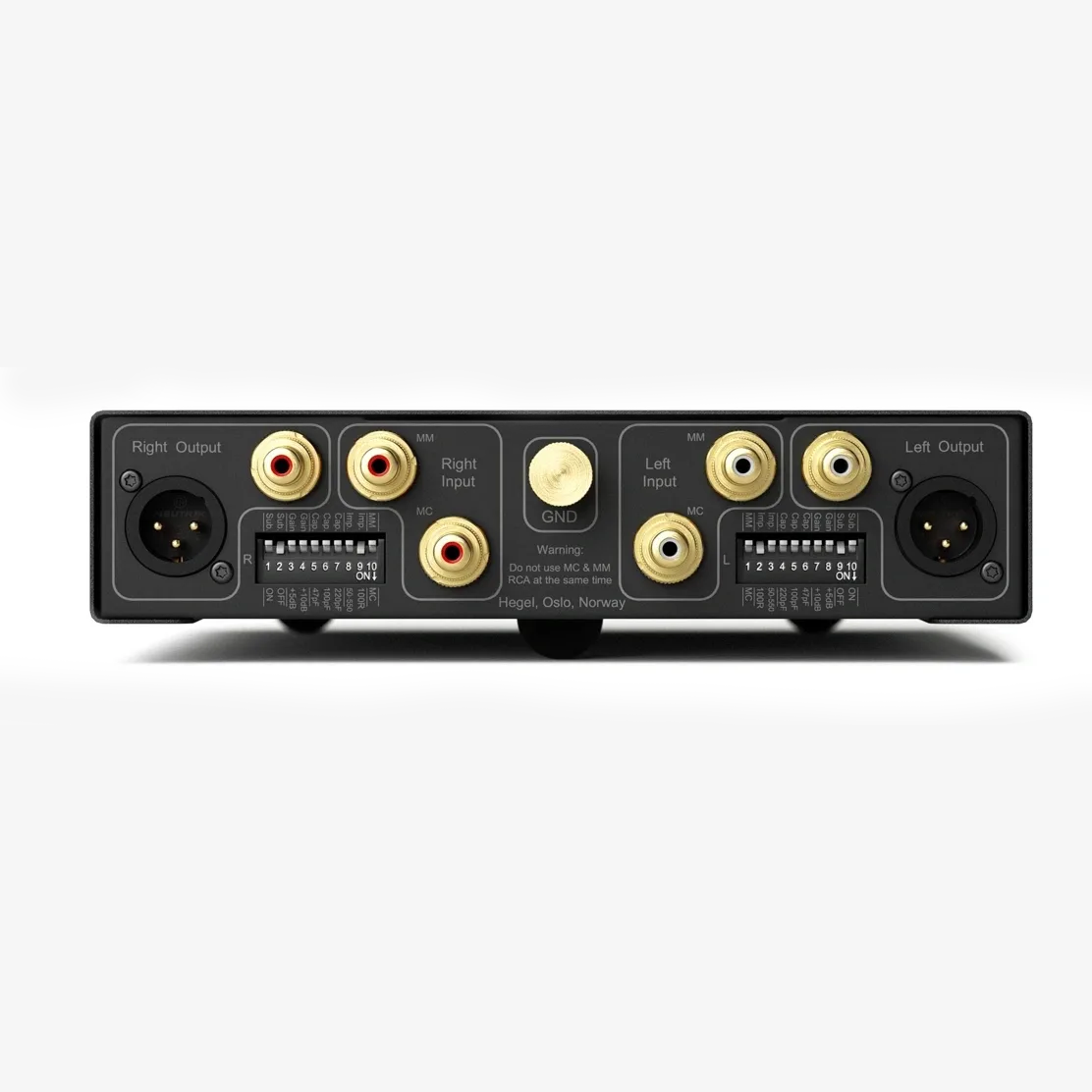

Connections:
- Inputs: 1 x RCA (MM), 1 x RCA (MC)
- Outputs: 1 x XLR (balanced), 1 x RCA (unbalanced fixed)
Technical Specifications:
- Gain (XLR MM): 40 / 45 / 50 / 52 dB
- Gain (XLR MC): 60 / 65 / 70 / 72 dB
- Gain (RCA MM): 34 / 39 / 44 / 46 dB
- Gain (RCA MC): 54 / 59 / 64 / 66 dB
- MC Load Impedance: 33–550 ohm / 47 kohm
- MM Load Capacitance: 47–367 pF @ 47 kohm
- RIAA Accuracy: ±0.2 dB (20Hz–20kHz)
- Frequency Response: 2Hz – 20kHz
- Output Noise: -84 dB (MM), -81 dB (MC)
- Distortion (THD): <0.005% (MM), <0.009% (MC)
- Output Impedance: 200 ohm
- Crosstalk: -84 dB @ 1kHz
- Subsonic Filter: Switchable, -3 dB @ 20Hz
- Dimensions: 6 x 21 x 28 cm (H x W x D)
- Weight: 2.2 kg
What’s Included:
- Hegel V10 Phono Preamplifier
- External linear power supply (M30103)
- Power cables
- Manufacturer packaging
Note: This product is available for in-store purchase and demonstration only. Visit the Spinning Room showroom to experience the V10 in person.
