AC Dual Motor Turntable Speed Controller
This AC dual motor turntable speed controller is designed to deliver highly accurate and stable platter rotation, improving timing, pitch accuracy, and overall musical performance. Many turntables do not run precisely at 33.33 rpm, and this controller corrects those variations, resulting in a tighter sense of rhythm and a more stable soundstage.
The unit features an optical platter speed sensor and OLED display, providing real-time feedback and precise monitoring. Using microprocessor control and advanced sine wave frequency synthesis, it ensures accurate and consistent motor drive.
Designed, assembled, and tested in the UK, the controller is fully CE and UKCA approved and supports both 110V and 220V operation as standard. It is compatible with a wide range of AC synchronous motors, including dual 110V motors or single 3 or 4-phase motors.
The system includes automatic speed calibration and PID-controlled feedback, allowing it to compensate for wear in belts, pulleys, bearings, motors, and stylus drag. This ensures long-term accuracy and consistent performance.
Key Features:
• AC dual motor turntable speed controller

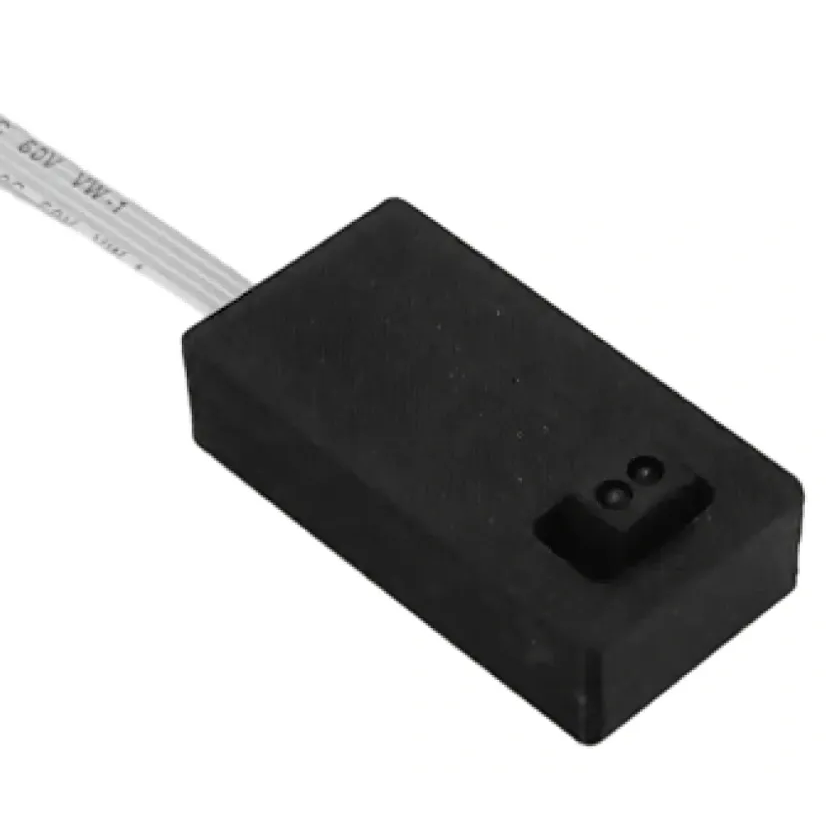

• Optical platter speed sensor with OLED display
• Microprocessor-controlled operation
• Electronic switching between 33.3 rpm and 45 rpm
• Automatic speed sensor calibration
• Dual voltage support (110V / 220V)
• Designed, assembled, and tested in the UK
• CE and UKCA approved
• Compatible with dual 110V motors or single 3/4-phase motors
• 30-day trial period with return option
Technical Highlights:
• Frequency accuracy controlled to 0.001 Hz
• Platter speed accuracy within ±0.003 rpm
• PID feedback control for stable speed regulation
• Compensation for mechanical wear and stylus drag
• Adjustable motor parameters via USB serial interface
• EEPROM storage for saved configuration settings
• Super quiet mode to reduce motor vibration at full speed
• Configurable auto start and sleep functions
• OLED display showing speed and WOW
• Stylus and bearing runtime tracking
Specification:
• Motor Compatibility:
– Two 110V AC synchronous 24-pole motors (Airpax, Philips, Linn etc)
– One 3 or 4-phase AC synchronous motor (max 20 mA per phase)
• Frequency Output: 50 Hz or 67.5 Hz
• Frequency Accuracy: 0.001 Hz
• Speed Accuracy: ±0.003 rpm
• Power Supply: 110V – 230V, 50/60 Hz (selectable)
• Dimensions: 160 x 100 x 55 mm
What’s Included:

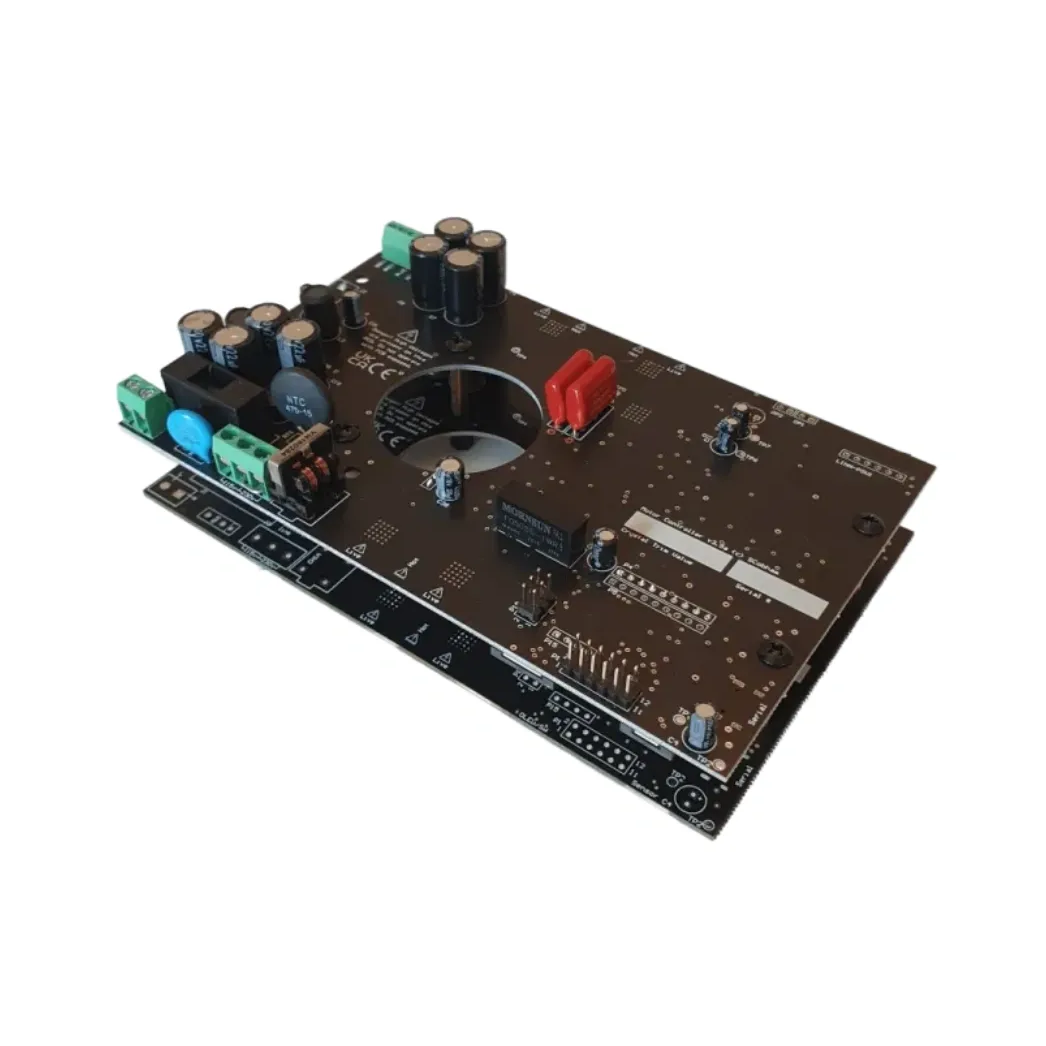

• AC Turntable Speed Controller
• Optical platter sensor

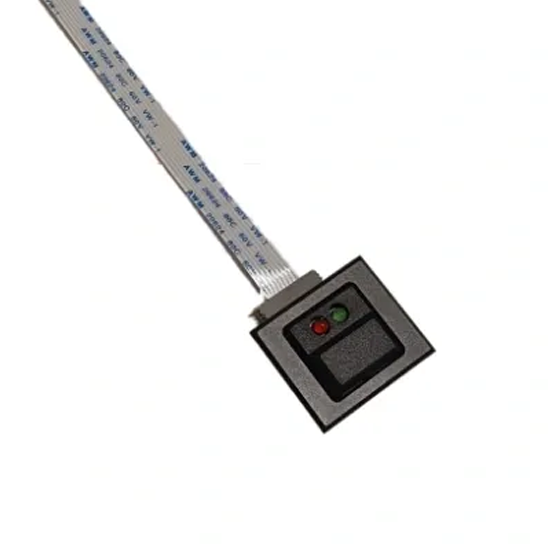

• OLED display unit
• Documentation
Note:
Includes a 30-day trial period. If not suitable, the unit can be returned in original packaging for a refund (excluding shipping).
This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the controller in person.
