Bel Canto REF601M Monoblock Power Amplifier
The Bel Canto REF601M is a high-performance monaural power amplifier designed to deliver substantial power with low distortion and precise control. Compact and efficient, it provides high output capability while maintaining a clean and accurate sound.
The REF601M delivers 300 watts into 8 ohms and up to 600 watts into 4 ohms, with a minimum load of 2 ohms. Its high damping factor of over 1000 ensures strong control over loudspeakers, while low distortion figures maintain signal accuracy.

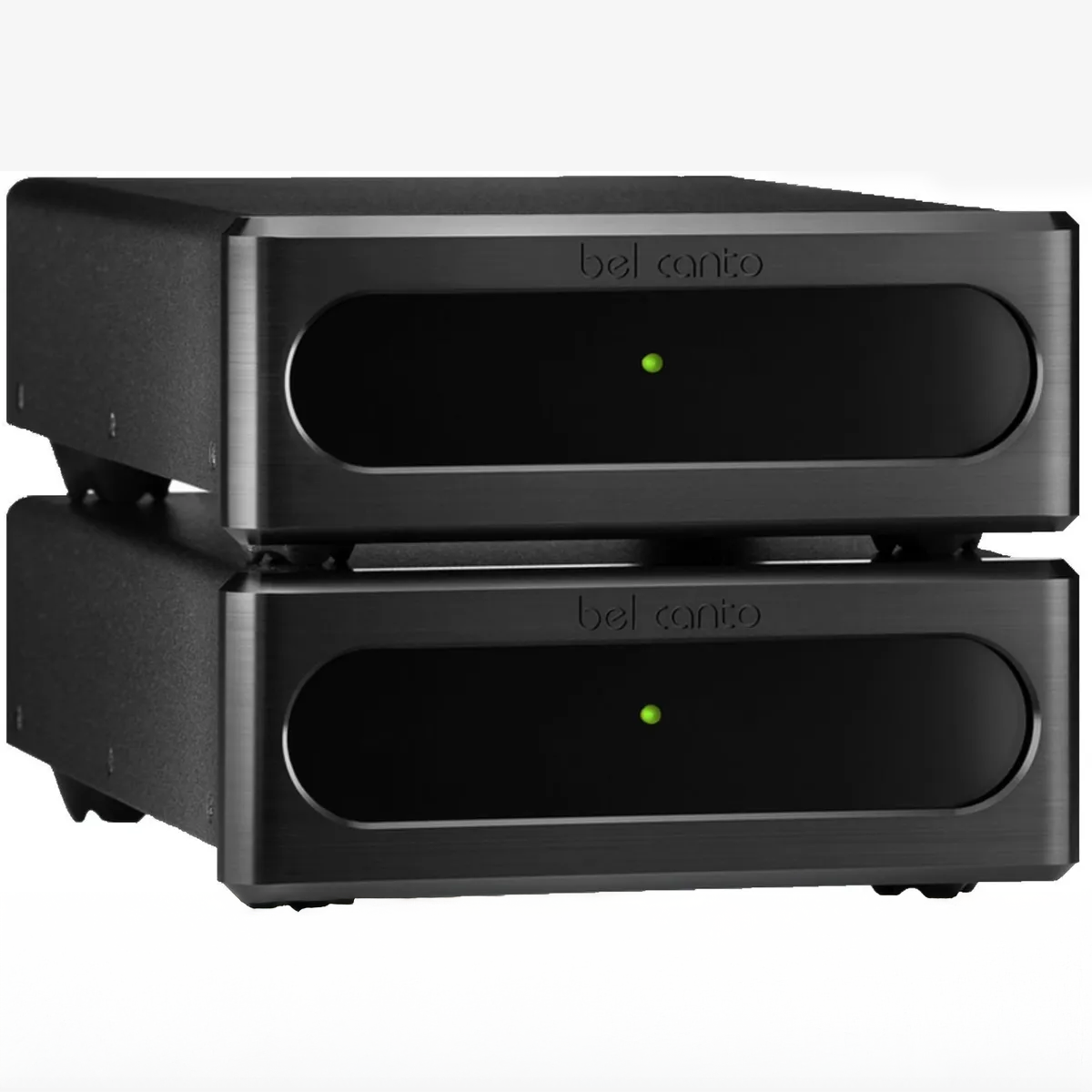

Built using advanced Class D amplification, the REF601M runs cool and efficiently, making it suitable for compact installations, enclosed spaces, or stacked system configurations.
Key Features:
• High-performance monoblock power amplifier
• 300W into 8 ohms, 600W into 4 ohms
• Minimum load capability of 2 ohms
• High damping factor (>1000) for speaker control
• Low distortion (0.003% THD at 1W / 1 kHz)
• Class D amplifier design for efficiency and low heat
• Compact e.One series chassis design
• Suitable for hi-fi and home theatre systems
Technical Highlights:
• Dynamic range: 121 dB
• Peak current: 27 A
• Flat frequency response (±3 dB from 0 Hz to 50 kHz)
• Impedance Optimized Input Stage with high common mode rejection
• Low output impedance driver stage
• Accurate and stable performance across loads

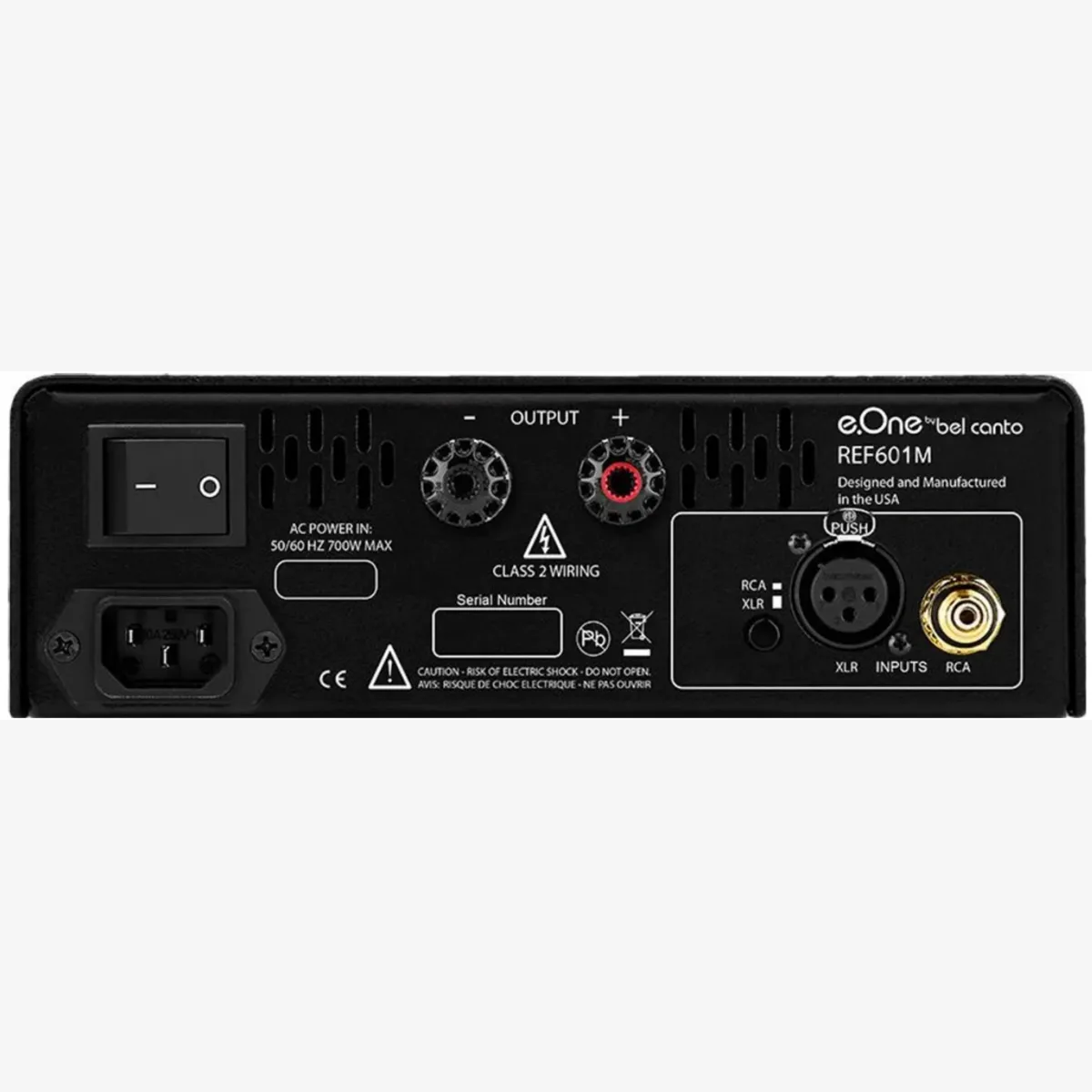

Connectivity:
• 1 × RCA analogue input
• 1 × XLR balanced input
• WBT Nextgen 5-way binding posts for speaker connection
Specification:
• Power Output:
– 300W (8 ohms)
– 600W (4 ohms)
• Minimum Load: 2 ohms
• Peak Current: 27 A
• Dynamic Range: 121 dB
• Distortion: 0.003% THD (1W / 1 kHz)
• Frequency Response: 0 Hz – 50 kHz (±3 dB)
• Dimensions: 88 mm (H) × 216 mm (W) × 305 mm (D)
What’s Included:
• Bel Canto REF601M Monoblock Amplifier
• Documentation
Note:
£2,999.95 each or £5,750 per pair
This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the REF601M in person.
