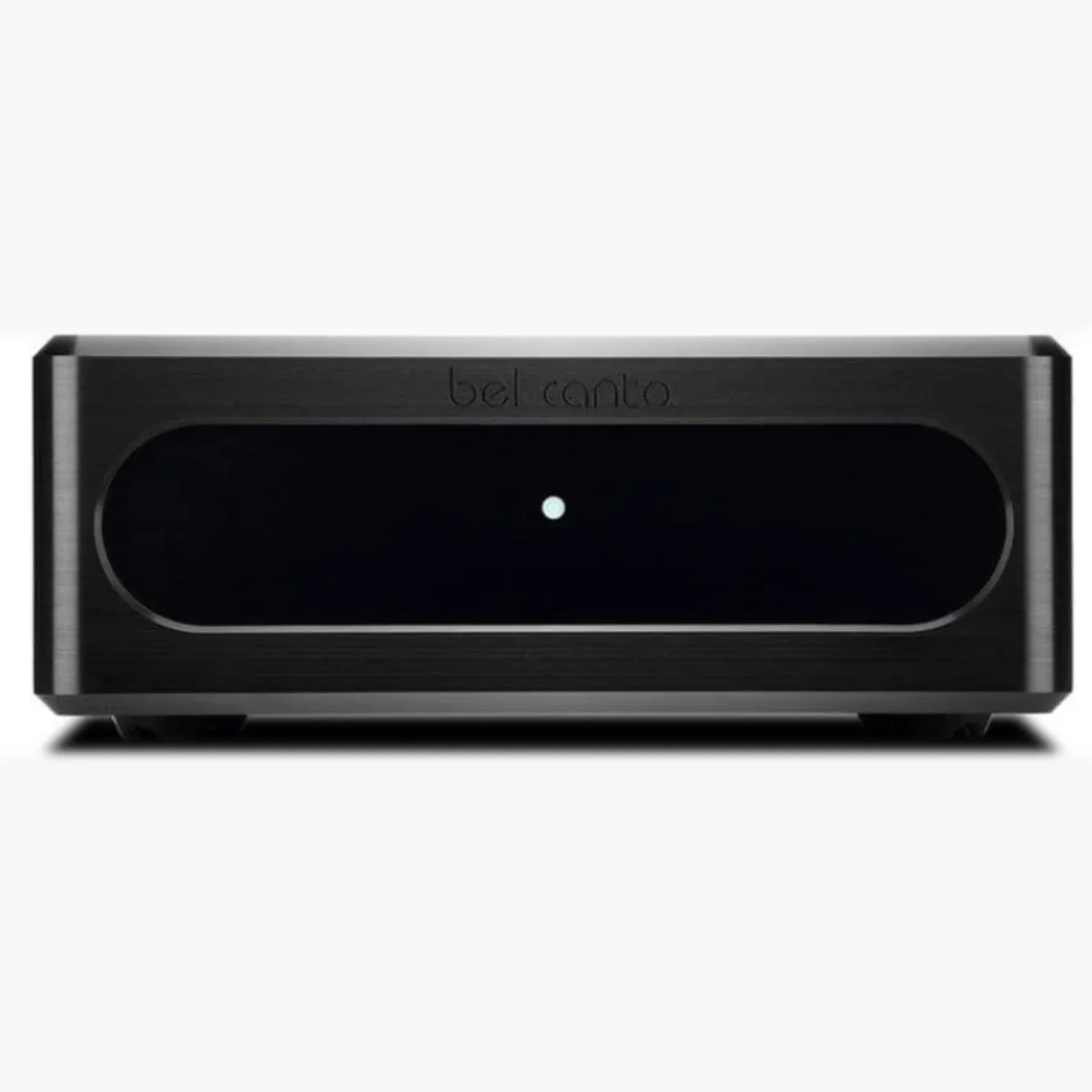

Bel Canto e.One Phono Preamplifier
The Bel Canto e.One Phono Preamplifier is a high-performance analogue stage designed to extract maximum detail, dynamics, and resolution from your vinyl system. Its carefully engineered two-stage architecture delivers low noise performance with precise RIAA equalisation and flexible cartridge matching.
The design features a low-noise 40 dB input stage followed by a custom discrete output stage with adjustable gain. This allows the phono stage to work with a wide range of moving magnet and moving coil cartridges while maintaining signal integrity and clarity.
A precision RIAA network ensures accurate frequency response, while a high-drive output buffer provides strong, stable signal delivery to downstream components. The unit is supported by a low-noise, multi-stage, channel-independent power supply and a ground-optimised PCB layout.
Key Features:
• High-performance phono preamplifier
• Optimised two-stage architecture
• Low-noise 40 dB input stage
• Custom discrete output stage with adjustable gain
• Precision RIAA equalisation network
• High-drive output buffer
• Channel-independent multi-stage power supply
• Ground-optimised PCB layout
• Adjustable gain and input impedance via DIP switches
DSSA Technology:
• Discrete Single Stage Amplifier (DSSA) module
• Single-stage folded cascode architecture
• High-speed, low-noise performance
• Over 500 mA peak current capability
• Wide bandwidth with low distortion
• Enhances dynamic resolution and contrast
Technical Highlights:
• Wide bandwidth: 1 Hz – 50 kHz
• RIAA accuracy: ±0.2 dB (20 Hz – 20 kHz)
• Signal-to-noise ratio: > 80 dB (A-weighted, 40 dB gain)
• Distortion: < 0.01% at 2 V RMS / 1 kHz
• Adjustable gain: 38 dB – 60 dB
• Adjustable input impedance: 31 Ω – 47 kΩ
Specification:
• Power Consumption (On): 10 W
• Power Consumption (Off): 0 W
• Operating Voltage: 100–120 VAC or 230–240 VAC, 50/60 Hz
• Dimensions: 216 mm (W) × 88 mm (H) × 305 mm (D)
• Weight: 4.5 kg
What’s Included:
• Bel Canto e.One Phono Preamplifier
• Documentation
Note:

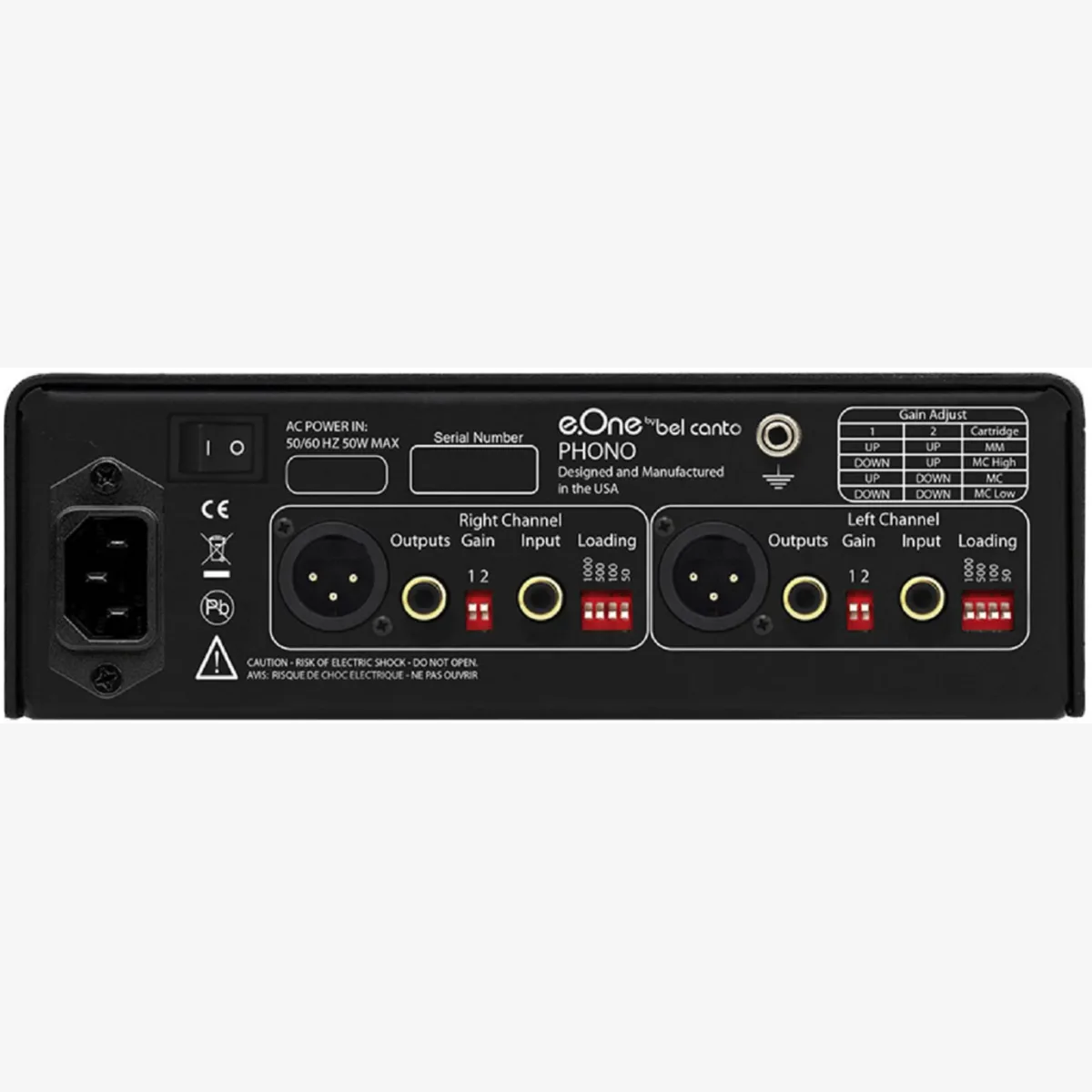

Gain and resistance can be configured via rear DIP switches to match a wide range of cartridges.
