Bel Canto DAC2.8 DAC / Preamplifier
The Bel Canto DAC2.8 is a high-performance DAC and preamplifier built around Bel Canto’s HDR Core technology, the result of over 20 years of refinement in digital-to-analogue conversion. It delivers a natural, analogue-like presentation with high dynamic range and low distortion.
The HDR Core integrates ultra-low-noise master clocks, asynchronous interfaces, and efficient low-noise power supplies alongside an advanced PCM1792 DAC. This combination ensures accurate signal conversion with minimal jitter and noise.
With a dynamic range of up to 124 dB and distortion as low as 0.0015%, the DAC2.8 provides detailed, clean, and controlled playback across a wide range of sources.
Key Features:
• High-performance DAC and preamplifier
• HDR Core digital-to-analogue architecture
• 24-bit / 192 kHz PCM1792 DAC
• Ultra-low-noise master clock design
• Asynchronous digital interfaces
• Integrated headphone amplifier
• Digital volume control with input selection
• Remote control operation

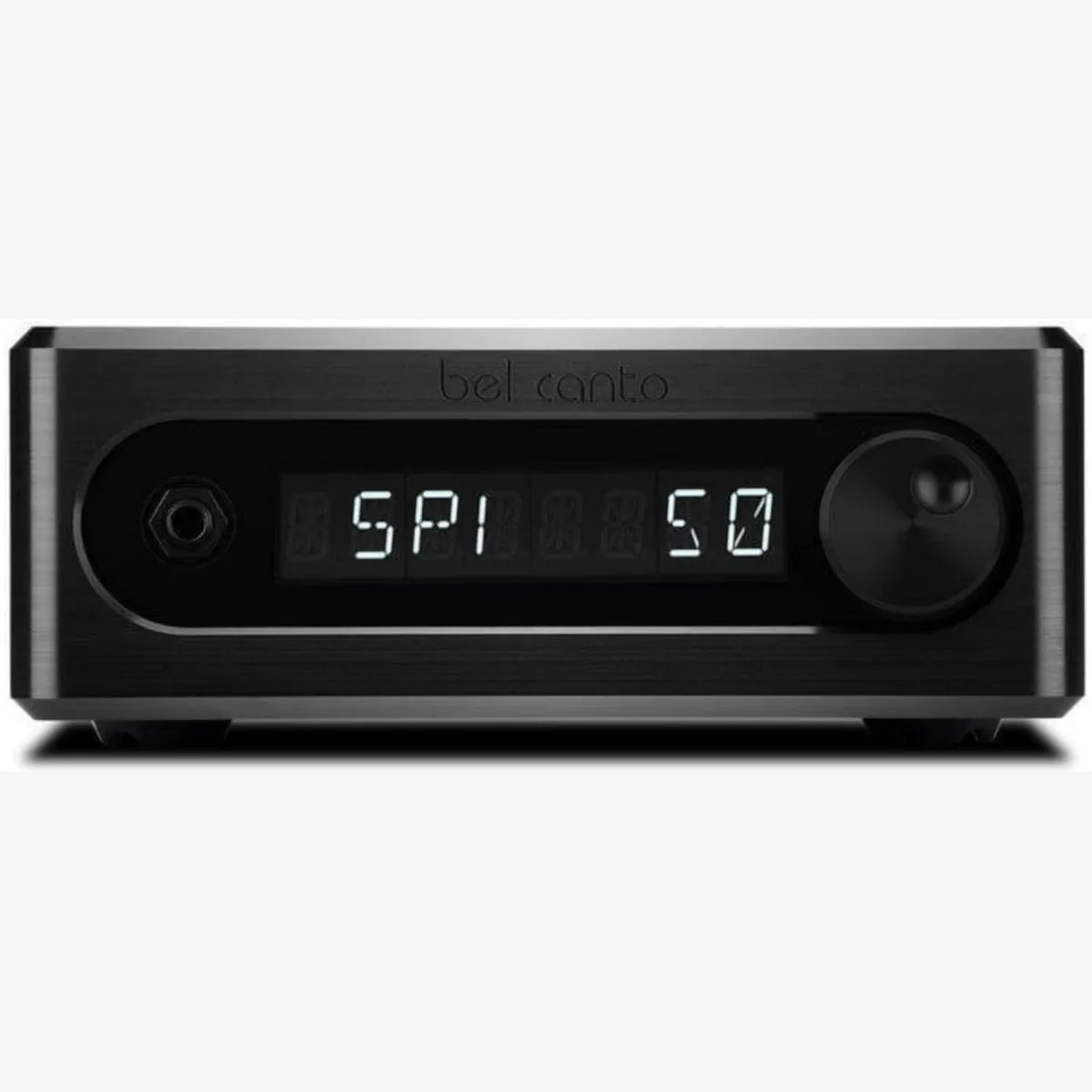

• Brushed aluminium front panel design
System Overview:
The DAC2.8 combines multiple digital inputs with analogue functionality, allowing it to act as a central hub for both digital and analogue sources. Its simple interface displays input or volume, with control via a front panel dial or remote.
The dual-function 24-bit digital volume control allows both volume adjustment and input selection, enabling direct connection to a power amplifier if required.

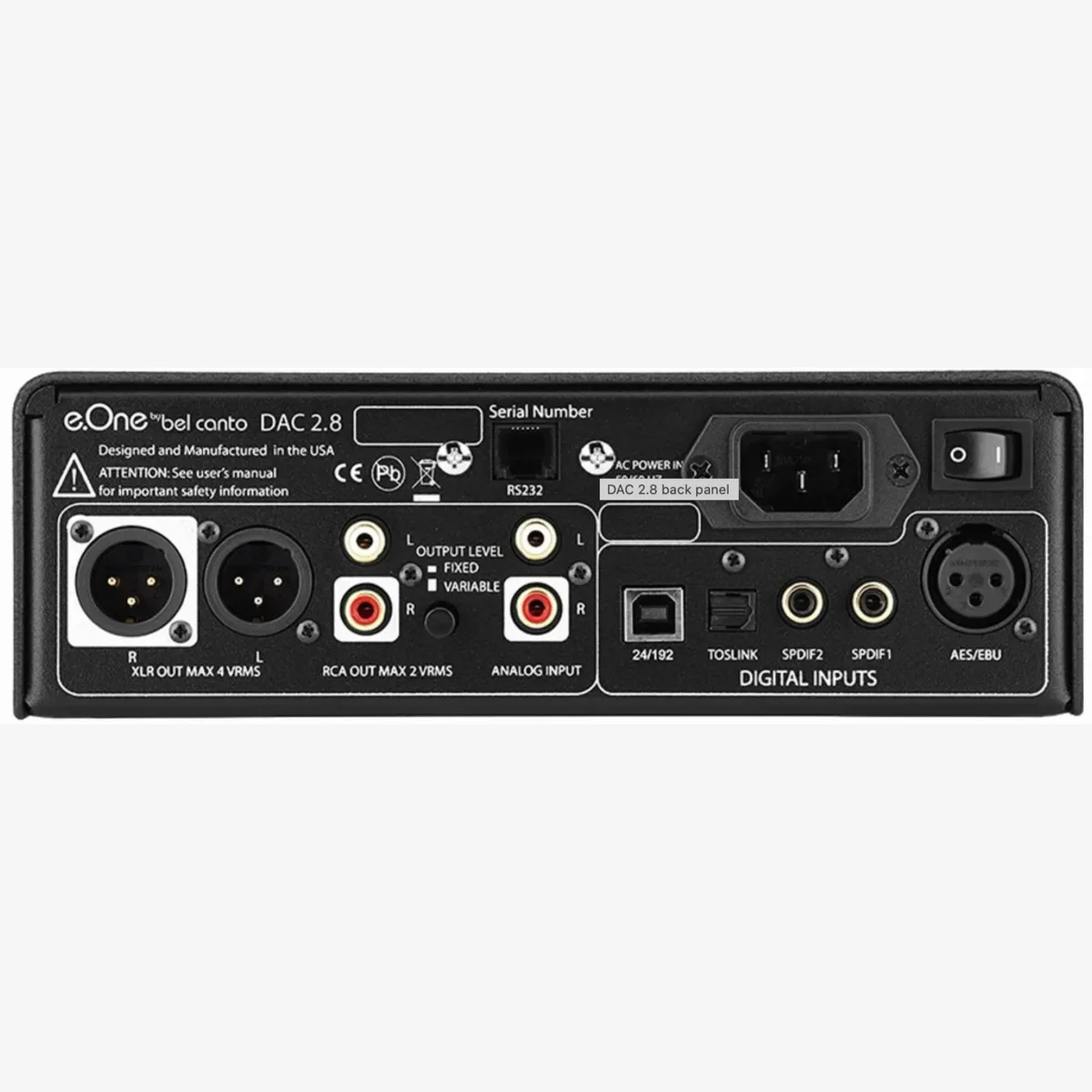

Connectivity:
• 2 × Coaxial digital inputs
• 1 × Optical digital input
• 1 × Asynchronous USB Type B input
• 1 × AES/EBU (XLR) digital input
• 1 × RCA analogue input
• 1 × RCA analogue output
• 1 × XLR analogue output (switchable fixed or variable)
• 6.3 mm headphone output
Technical Highlights:
• Dynamic Range: 124 dB
• Distortion: 0.0015%
• Supports up to 24-bit / 192 kHz digital signals
• Low impedance, high current headphone output (300 mA)
• Flexible output configuration (fixed or variable)
• Accurate and natural sound reproduction
Specification:
• DAC Chip: PCM1792
• Resolution: 24-bit / 192 kHz
• Dimensions: 88 mm (H) × 216 mm (W) × 318 mm (D)
What’s Included:
• Bel Canto DAC2.8 DAC / Preamplifier
• Remote control
• Documentation
Note:
Suitable for use as both a standalone DAC or as a DAC/preamp driving a power amplifier directly.
This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the DAC2.8 in person.
