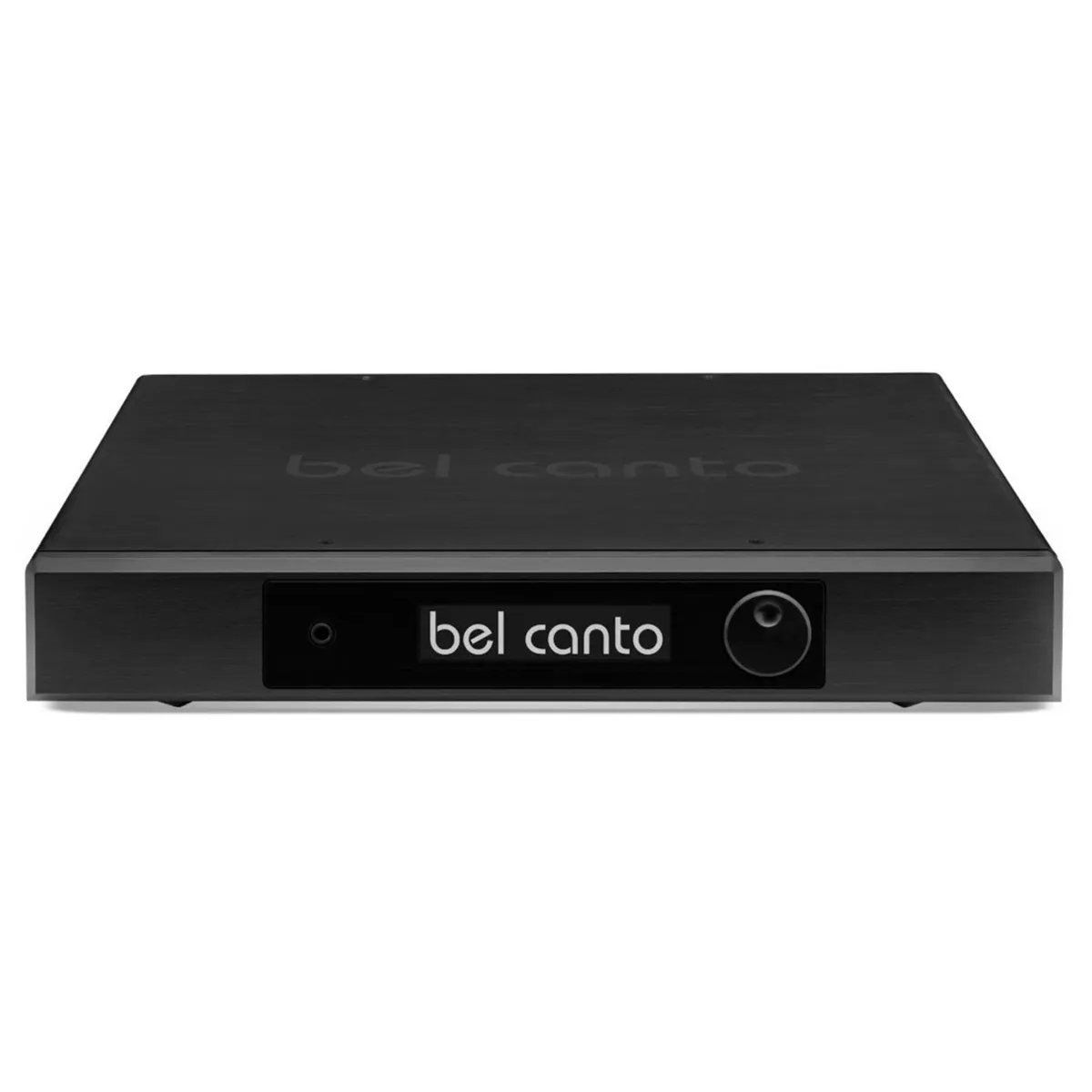

Bel Canto E1X A500 Integrated Amplifier
The Bel Canto E1X A500 is a reference-grade integrated amplifier designed for complete authority, transparency, and musical realism. Combining a fully balanced analogue preamplifier with high-current Class D amplification, it delivers exceptional power, ultra-low noise, and remarkable dynamic resolution from a single, elegantly engineered component.
Built within a rigid all-aluminium E1X chassis with advanced constrained-layer damping, the A500 minimises vibration and resonance—preserving signal integrity and allowing music to be reproduced with clarity, precision, and emotional impact.
With immense power reserves and proprietary high-current architecture, the E1X A500 effortlessly drives even the most demanding loudspeakers, delivering deep, controlled bass, expansive dynamics, and a natural, unforced presentation.
Key Features:
- Reference integrated amplifier with fully balanced analogue design
- 250W per channel into 8 ohms / 500W per channel into 4 ohms
- Proprietary Single Stage High-Current Amplifier (SSHA) technology
- High-efficiency Class D output stage for consistent performance
- Ultra-low noise and distortion with 125dB dynamic range
- Rigid aluminium chassis with constrained-layer damping
- Wide bandwidth and high current delivery for precise control
- Transparent, fast, and highly dynamic sound signature
- High-quality headphone output for personal listening
Connections:
- Analogue Inputs: 2 x XLR (balanced), 4 x RCA (Cardas custom)
- Outputs: Balanced XLR and RCA line outputs
- Speaker Outputs: Dual WBT NextGen 5-way binding posts
- Headphone Output: Dedicated high-quality output
Technical Specifications:
- Power output: 250W (8 ohms) / 500W (4 ohms) per channel
- Dynamic range: 126dB
- THD+N: 0.002% @ 1W, 1kHz
- IMD: 0.0003% @ 1W
- Frequency response: 0Hz – 50kHz (±3dB)
- Peak output current: 27A
- Damping factor: >500
- Output impedance: <16 milliohms
- Dimensions: (refer to manufacturer)
- Weight: (refer to manufacturer)
What’s Included:
- Bel Canto E1X A500 Integrated Amplifier
- Power cable
- Remote control
- Manufacturer packaging
Note: This is a high-power reference amplifier. Ensure suitable speaker matching and adequate ventilation for optimal performance.
