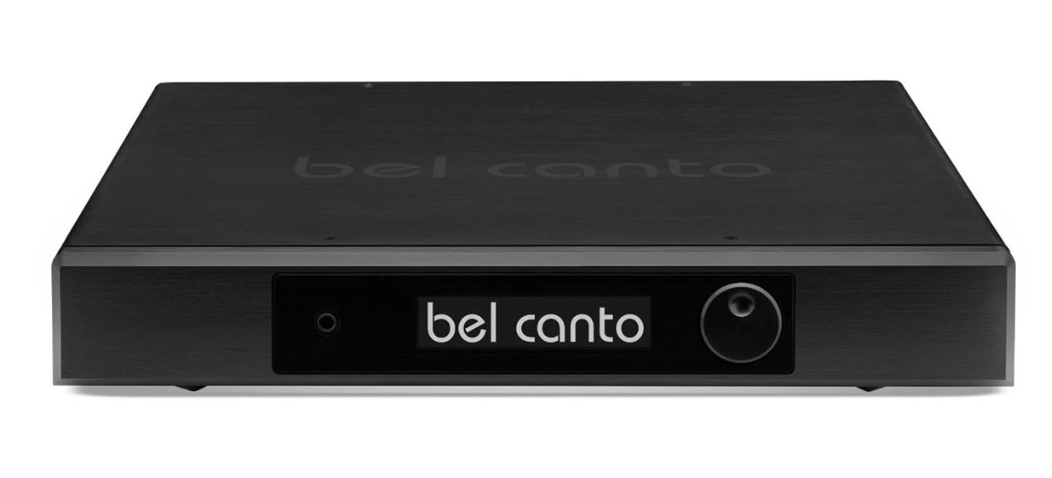

Bel Canto E1X A500 Integrated Amplifier

The Bel Canto E1X A500 Integrated Amplifier is available for demonstration in our Hull store by request.

The Bel Canto E1X A500 Integrated Amplifier is a reference-grade, high-power integrated amplifier created for audiophiles who demand complete authority, transparency, and musical realism from a single component. By combining a fully balanced analogue preamplifier with high-current Class D stereo amplification, the E1X A500 delivers exceptional drive, ultra-low noise, and outstanding dynamic resolution into even the most demanding loudspeakers.

Housed within a rigid E1X all-aluminium chassis, the amplifier employs Bel Canto’s advanced constrained-layer damping to minimise vibration and resonance. This acoustically inert platform preserves signal integrity throughout the amplification chain, allowing the E1X A500 to communicate the full musical message with clarity, precision, and emotional impact.

Exceptional Power and Drive

The E1X A500 is engineered to deliver genuine high-current performance, producing 250 watts per channel into 8 ohms and an impressive 500 watts per channel into 4 ohms. This substantial power reserve ensures effortless control over complex and low-impedance loudspeaker loads, maintaining composure and authority regardless of listening level.

Real-World Musical Performance

In real-world systems, the E1X A500 translates its power into deep, controlled bass, explosive dynamics, and a sense of ease that allows music to breathe naturally. Even during demanding musical passages, the amplifier remains stable and uncompressed, preserving fine detail and spatial accuracy.

Proprietary High-Current Architecture

At the core of the E1X A500 lies Bel Canto’s proprietary Single Stage High-Current Amplifier (SSHA) technology, working in conjunction with a discrete SSHC input stage. This single-stage folded cascode design minimises circuit complexity and signal degradation for maximum transparency.

Speed, Transparency and Resolution

With over 500mA of peak current output capability and exceptionally wide open-loop bandwidth, the E1X A500 maintains consistently low distortion across the entire audio spectrum. The result is a sound that is fast, transparent, and dynamically expressive, revealing subtle contrasts and textures that define high-resolution playback.

Ultra-Low Noise and Distortion

The E1X A500 achieves its exceptional sonic purity through a fully balanced internal signal path, precision-matched resistors, and discrete high-current output buffers. This meticulous engineering delivers a 125dB dynamic range, preserving every nuance of the recording without masking or compression.

Advanced Class D Without Compromise

The high-efficiency Class D output stage eliminates thermal modulation and output stage bias drift, ensuring consistent sonic performance regardless of operating conditions. By using the absolute minimum number of output devices, the E1X A500 delivers immense power without sacrificing speed, transparency, or musical flow.

Premium Connectivity and Control

The Bel Canto E1X A500 offers extensive analogue connectivity including two pairs of balanced XLR inputs, four Cardas-custom RCA inputs, independently buffered XLR and RCA outputs, WBT NextGen speaker terminals, and a dedicated independent headphone output for refined personal listening.

Bel Canto E1X A500 Integrated Amplifier Specification:

• Dynamic Range: 126dB (power amplifier section)
• THD+N: 0.002% at 1W, 1kHz, 4 ohms
• IMD (CCIF): 0.0003% at 1W, 14–15kHz, 4 ohms
• Distortion at 1Vrms Output: <0.001% at 1kHz
• Output Noise: 35µVrms A-weighted (10Hz–20kHz)
• Frequency Response: ±3dB, 0Hz–50kHz (all loads)
• Power Output (1% THD per channel): 500W into 4 ohms, 250W into 8 ohms
• Minimum Load: 2 ohms
• Peak Output Current: 27 amperes
• Damping Factor: >500
• Output Impedance: <16 milliohms at 100Hz
• Voltage Gain: 27dB (internally selectable to 33dB)
• Input Voltage for Maximum Output: 2.3Vrms at 27dB gain
• Input Connections: Single-ended RCA or balanced XLR
• Balanced Input Impedance: 20k ohms
• RCA Input Impedance: 10k ohms
• Single-ended Line Input Impedance: 50k ohms
• Maximum Input Level (Balanced): 5Vrms
• Maximum Input Level (Single-ended): 2.5Vrms
• Analog Outputs: RCA and XLR
• Maximum Output Level: 5Vrms (RCA and XLR)
• Dynamic Range (Analog Outputs): 125dB A-weighted (re: 5Vrms)
• Single-ended Line Output Impedance: 50 ohms
• Balanced Output Impedance: 100 ohms
• Speaker Outputs: Two sets of WBT NextGen 5-way binding posts
