Bel Canto Black Integrated Amplification System
The Bel Canto Black system is a reference-level amplification platform designed to deliver a complete and accurate musical experience. Built as a three-chassis integrated hybrid system, it redefines how signal travels through an audio system to preserve detail, timing, and emotional impact.
Constructed from solid high-grade billet aluminium, the system combines advanced digital control with high-performance analogue amplification. Its architecture separates critical stages to minimise interference and maximise signal integrity, resulting in a natural, dimensional presentation.

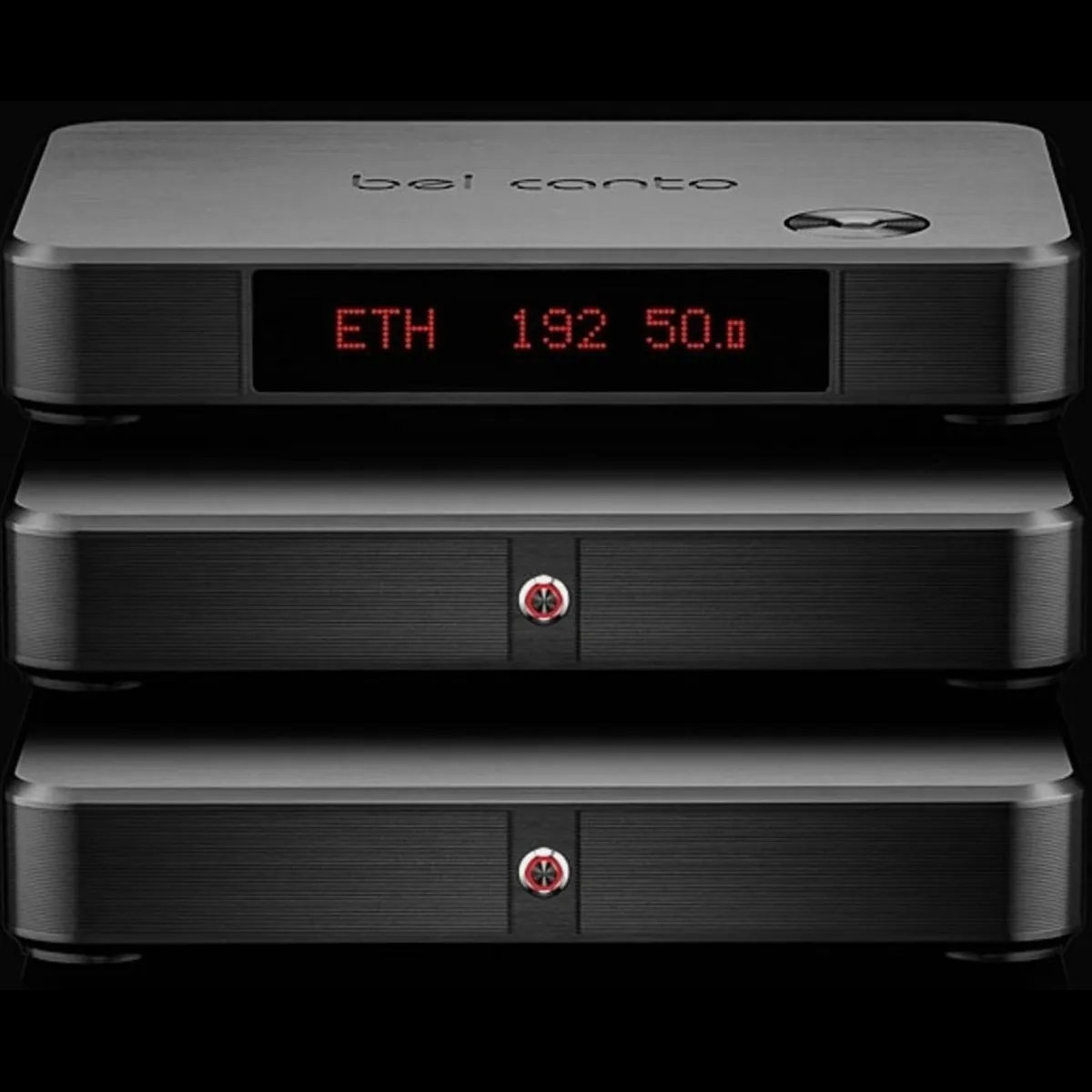

The system consists of the ASC2 System Controller and two MPS1 mono power amplifiers, working together as a fully integrated yet electrically isolated solution.
Key Features:
• Reference-level three-chassis amplification system
• ASC2 System Controller with advanced digital processing
• Dual MPS1 mono power amplifiers
• Fibre optic (ST) interconnect for electrical isolation
• Solid billet aluminium chassis construction
• Ultra low noise master clock architecture
• Integrated digital and analogue system control
• Designed for maximum signal purity and flexibility
System Overview:

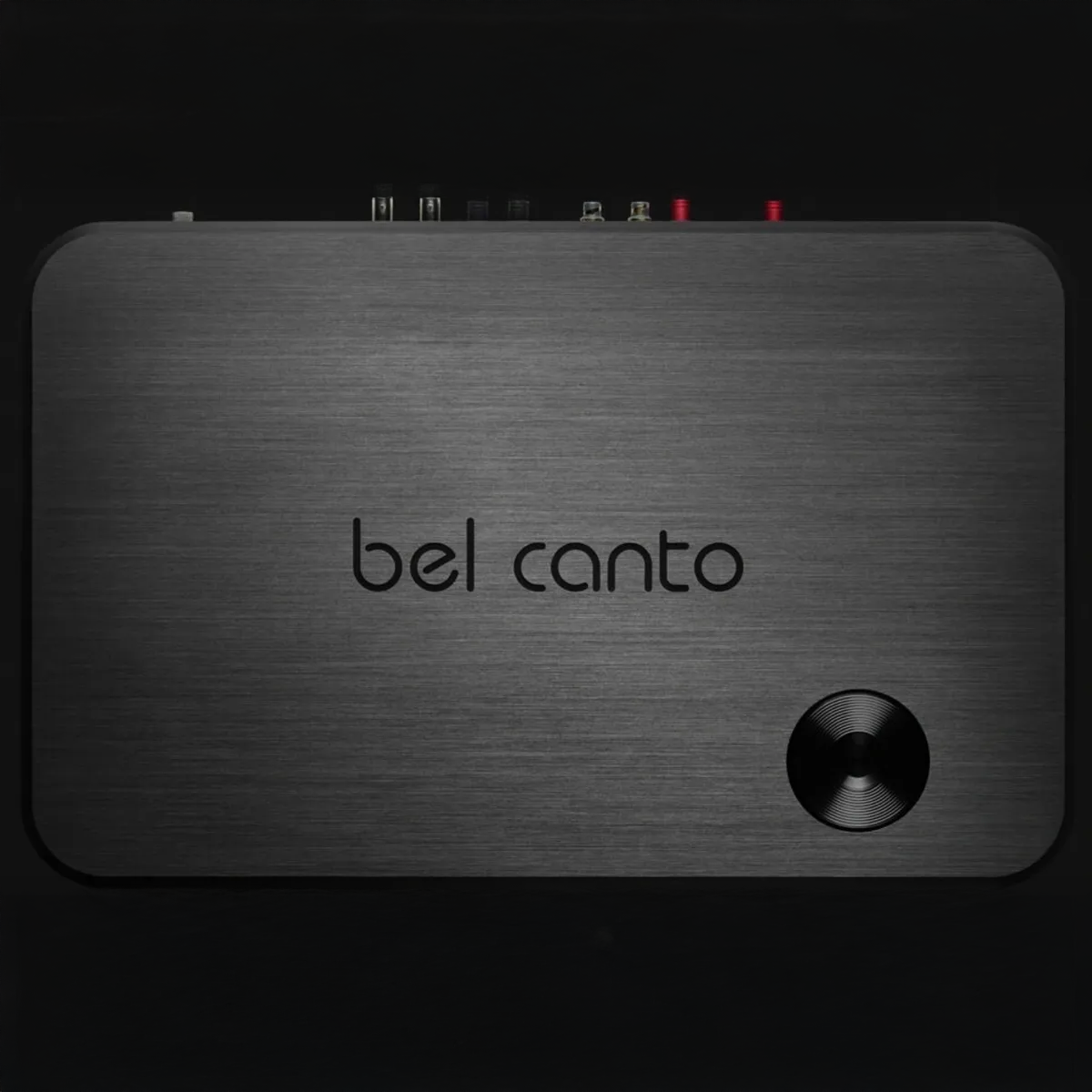

The ASC2 is the central control unit and master clock of the system. It acts as a digital preamplifier, handling all inputs, volume control, DSP processing, and system configuration. It uses a 64-bit DSP core, 32-bit volume control, and custom FIR filters to maintain accuracy throughout.
All inputs are galvanically isolated to prevent noise contamination. These include network (UPnP Ethernet), USB2, SPDIF/AES digital inputs, and an analogue input converted via a high-performance 24/192 ADC located close to the input stage.
At the heart of the ASC2 is an ultra low noise master clock system with phase noise measured below 40 femtoseconds, ensuring minimal jitter and precise timing.
The processed signal is transmitted via fibre optic connection to the MPS1 mono amplifiers, maintaining complete electrical isolation and eliminating ground loops and RF interference.
Key Features (ASC2):
• Asynchronous system controller and master clock
• 64-bit DSP processing and 32-bit volume control
• Custom FIR filtering and tone control
• Galvanically isolated inputs
• Ultra low noise master clock (< 40 femtoseconds)
• Multiple digital and analogue inputs
• Control via front panel, remote, or iOS app

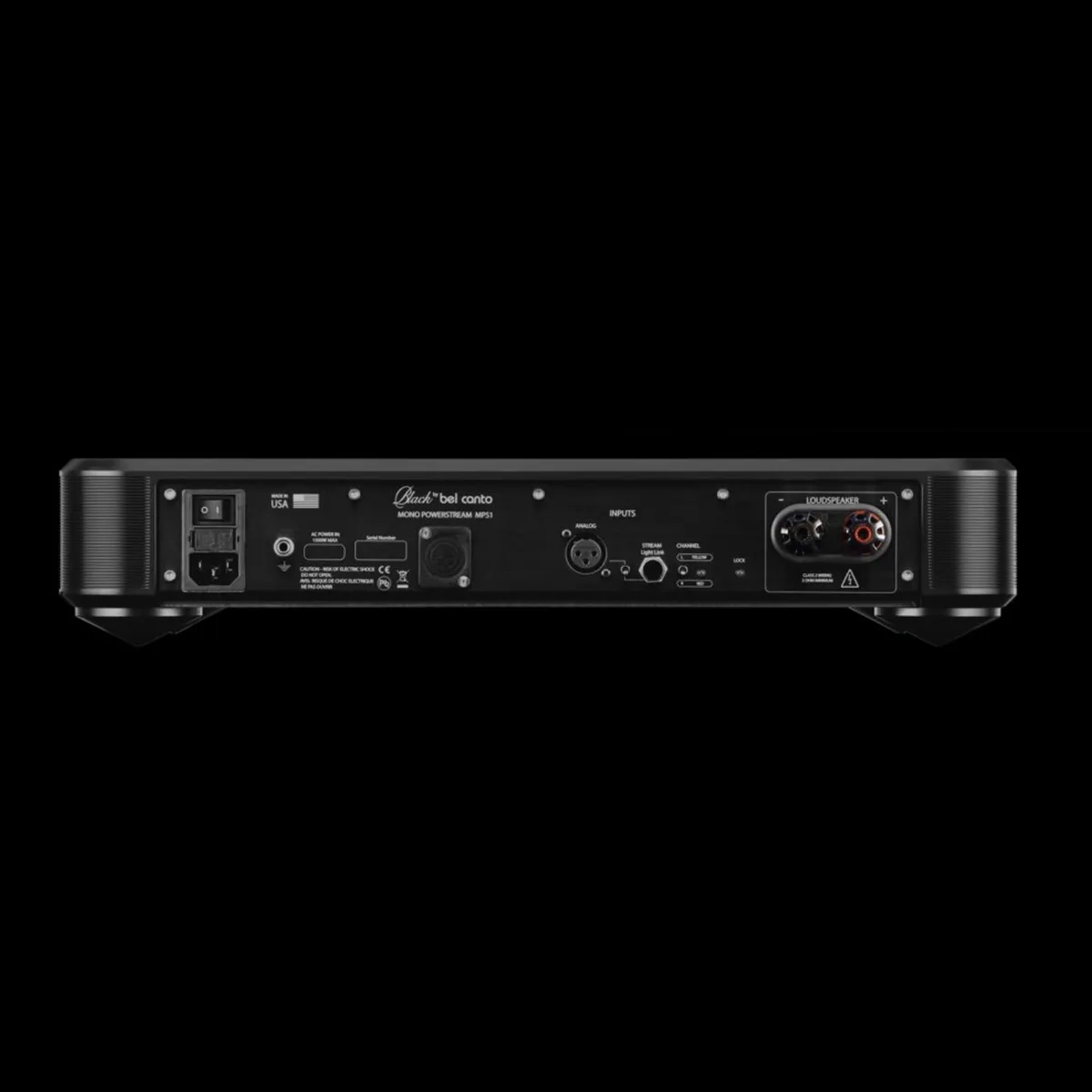

The MPS1 mono amplifiers combine DAC, clocking, and amplification in a single chassis. Each unit features a fully balanced mono DAC that integrates multi-bit and delta-sigma technologies for low distortion and high dynamic range.
Key Features (MPS1 Monoblocks):
• Integrated DAC and power amplifier design
• Fully balanced mono DAC architecture
• Ultra low distortion (< 0.0005%)
• High dynamic range (up to 130 dB)
• Class A amplification stages
• Custom 1200 W power buffer
• Capable of delivering up to 40A peak current
• Efficient analog switching output stage
Technical Highlights:
• Complete electrical isolation via fibre optic interconnect
• Elimination of ground loops and RF interference
• Ultra-low noise signal path
• High current drive capability for demanding loudspeakers
• Extremely transparent and accurate sound reproduction
• Seamless integration of digital and analogue technologies
What’s Included:
• Bel Canto ASC2 System Controller
• Two MPS1 Mono Power Amplifiers
• Fibre optic interconnect cables
• Remote control
• Documentation
Note:
This is a fully integrated high-end system designed for maximum performance and flexibility.
This product is available for in-store demonstration. Visit the Spinning Room showroom in Leeds to experience the Bel Canto Black system in person.
