Aurorasound HFSA-01 Hybrid Amplifier
The HFSA-01 is a compact hybrid integrated amplifier that combines vacuum tube warmth with solid-state precision. Designed around a push-pull EL84 output stage, it delivers a balanced and engaging sound while maintaining flexibility for both analogue and digital sources.
Key features:
• hybrid integrated amplifier (tube + solid-state)
• EL84 vacuum tube output stage (14W + 14W)
• built-in MM phono stage
• 3 x RCA line inputs
• bass and treble tone controls
• headphone output
• compatible with 4Ω – 8Ω speakers
• push-pull ultra-linear tube configuration
Design and performance:
The HFSA-01 uses EL84 output valves in a push-pull configuration, delivering low distortion and stable frequency response. This design provides a controlled, detailed sound while retaining the natural warmth associated with tube amplification.
A Texas Instruments OPA604A op-amp is used in the driver stage, forming a precise phase inverter to optimise the performance of the output tubes. This ensures clean signal handling and efficient power delivery.
The integrated phono stage uses a semiconductor-based NF-type circuit, offering strong signal-to-noise performance for MM cartridges.
Materials and construction:
• EL84 (6BQ5 equivalent) vacuum tubes
• custom-designed output and power transformers (Japan)
• Rohm silicon carbide diodes for low-noise rectification
• high-quality capacitors and resistors throughout

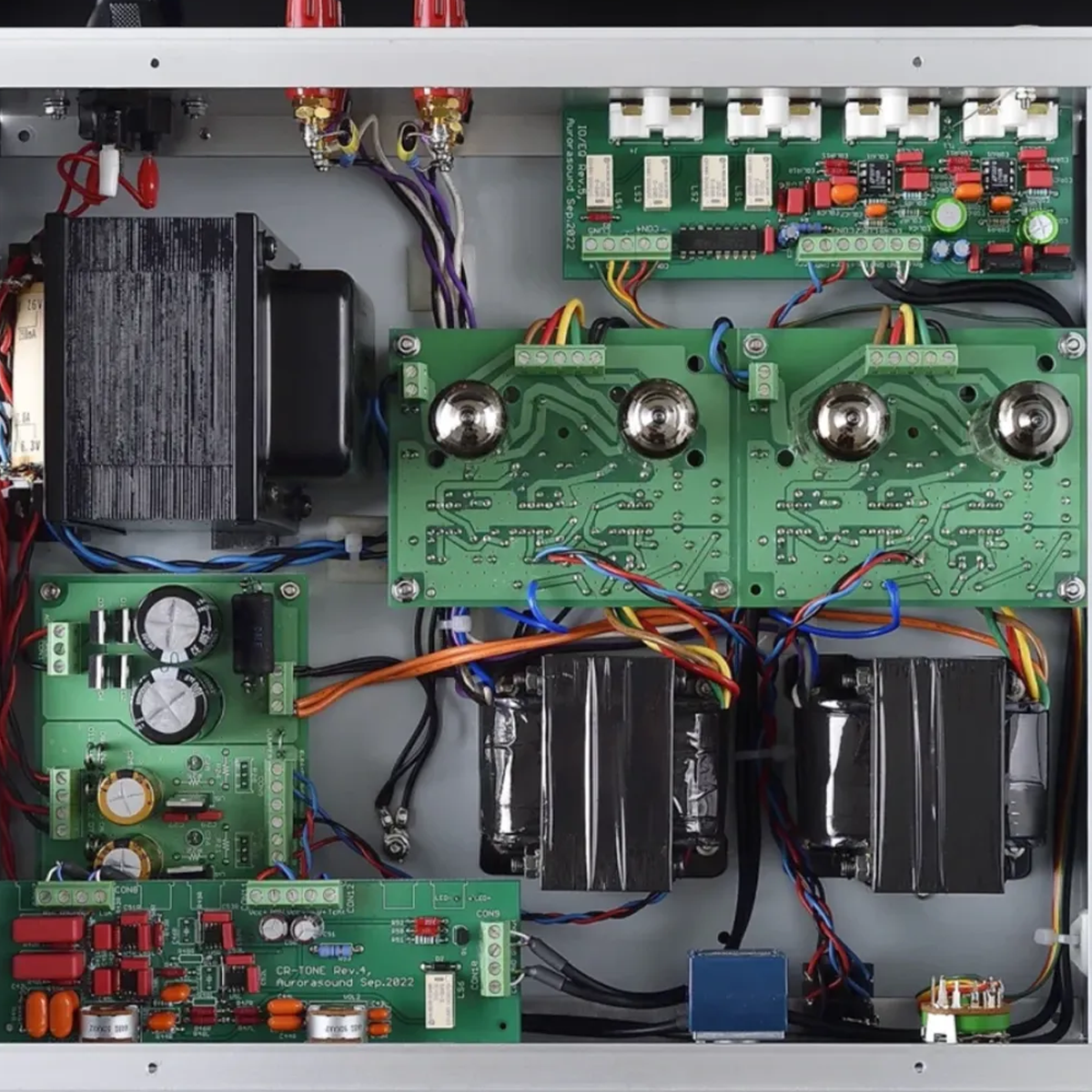

• isolated power supply sections for tube and solid-state stages
The power supply is fully separated between tube and semiconductor circuits, reducing interference and maintaining stability across volume levels and frequencies.
Sound characteristics:
• warm, natural tonal balance
• controlled and low-distortion output
• clear midrange with smooth treble
• flexible tonal shaping via bass and treble controls
• stable performance across a wide range of sources

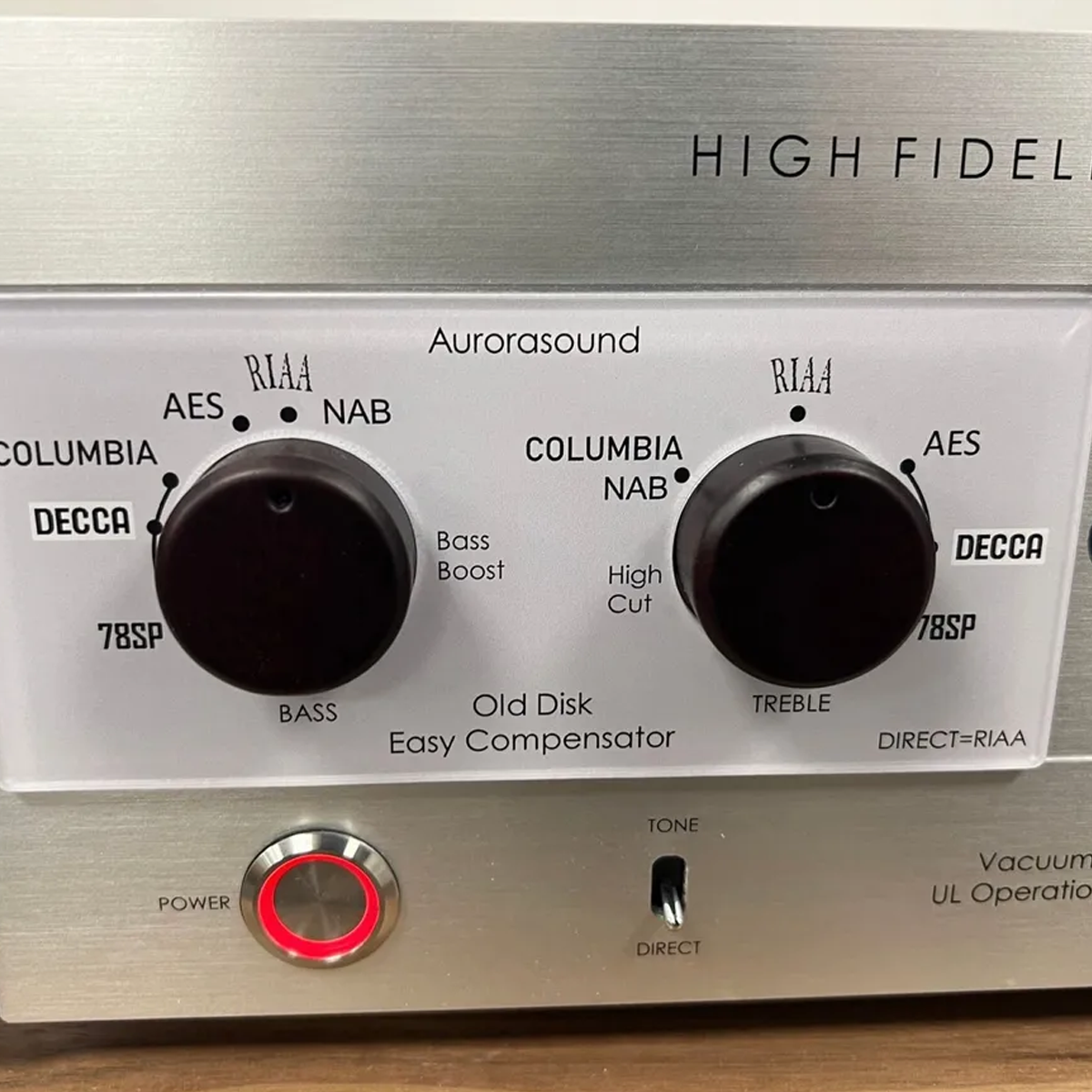

The tone control section uses a CR-type circuit, allowing subtle adjustment of bass and treble to suit room conditions or speaker characteristics.
Build and usability:

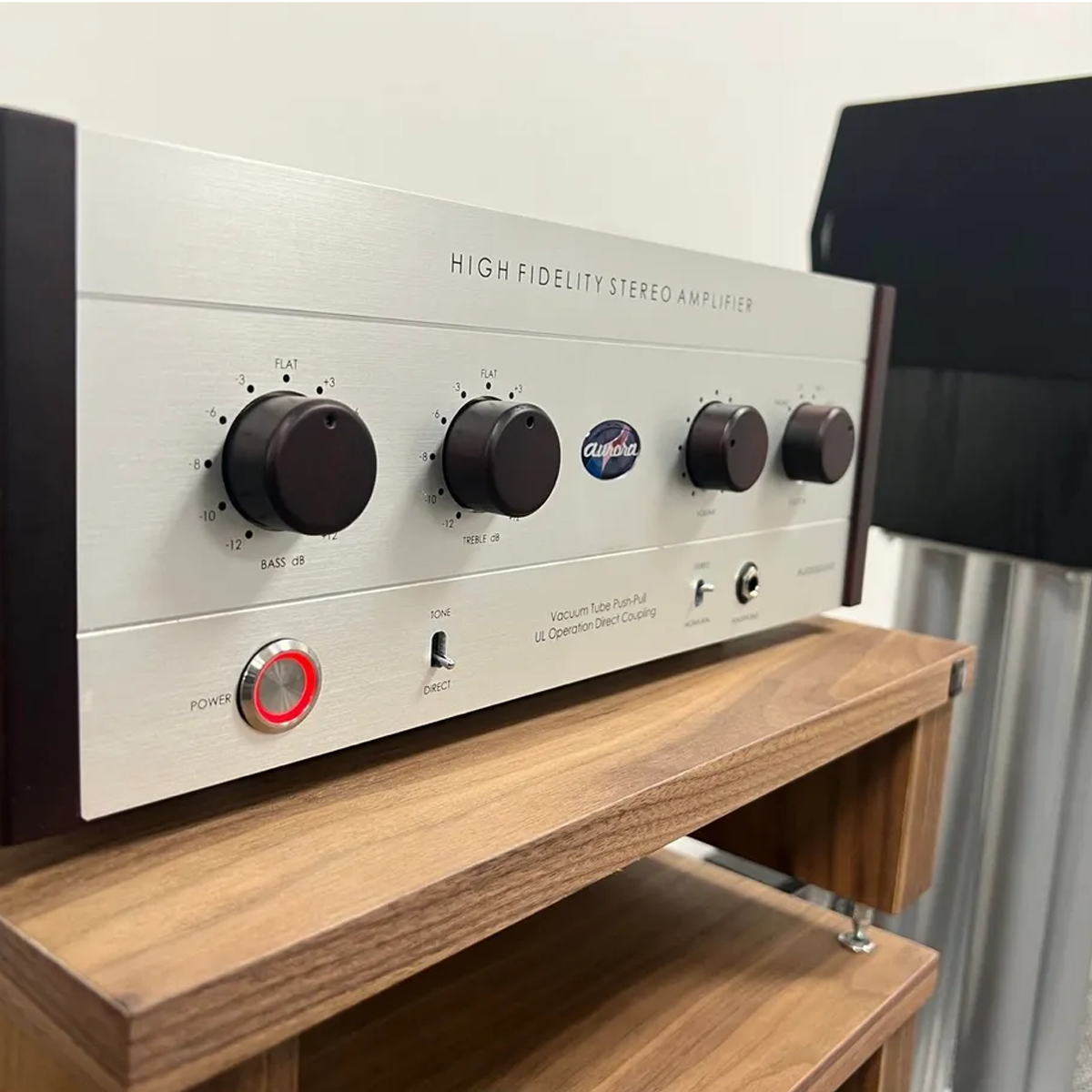

The HFSA-01 features a retro-inspired design with mahogany wood side panels and solid wood control knobs. The layout is straightforward, with accessible inputs and front-panel controls for easy operation.
Specifications:
• power output: 14W + 14W
• output tubes: EL84 (push-pull)

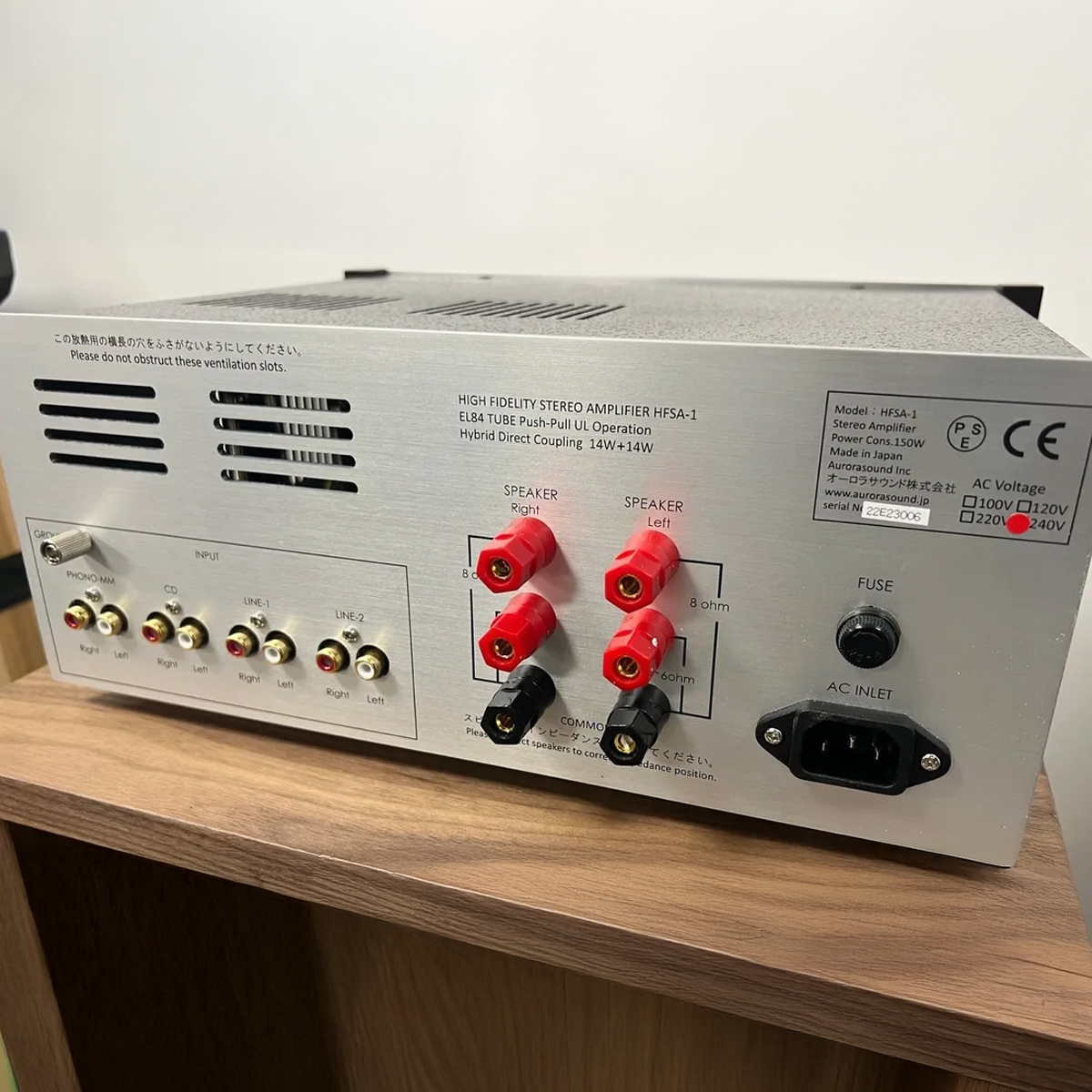

• inputs: 3 x RCA line, 1 x MM phono
• speaker compatibility: 4Ω – 8Ω
• headphone output: yes
• tone controls: bass and treble
Note:
The HFSA-01 is designed as a versatile, all-in-one amplifier that balances traditional tube sound with modern usability, making it suitable for a wide range of systems and listening preferences.
