Aurender N30SA High Definition Caching Music Server / Streamer

Aurender N30SA Music Server

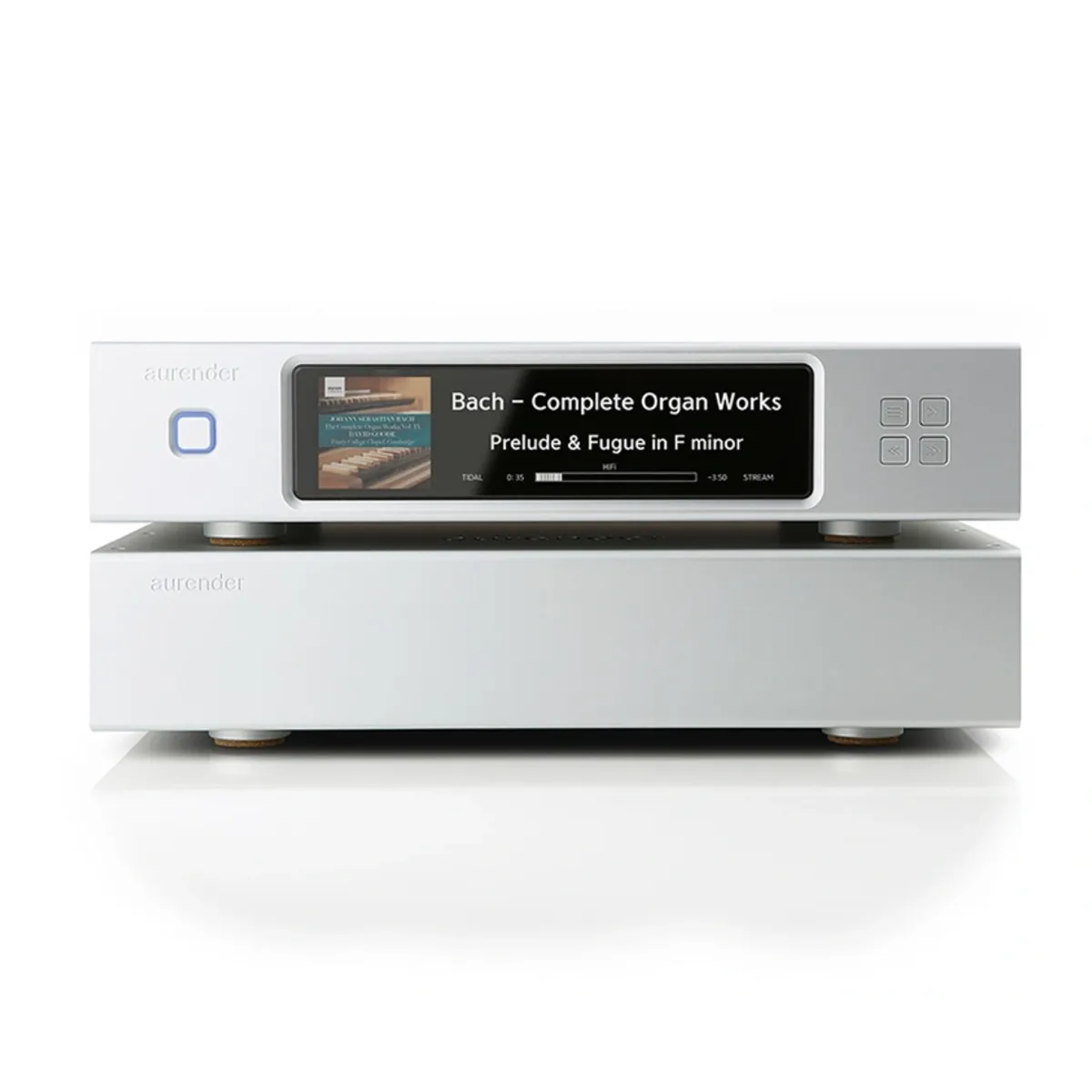

The Aurender N30SA is a statement-level digital output network transport designed for the finest HiFi systems. Featuring a dual-chassis architecture, it separates power and control circuitry from sensitive audio components to dramatically reduce noise and jitter, delivering exceptional clarity, dynamics and musical realism.

Inheriting design principles from models such as the A30 and N20, the N30SA pushes performance further with improved signal purity, enhanced dynamics and lower noise floor.

Key features:

• dual-chassis digital output network transport
• separate power and audio units for maximum isolation
• ultra-precise OCXO clock for low jitter performance
• master clock / word clock input (75Ω BNC)
• multiple digital outputs: USB, AES/EBU, coaxial, BNC, optical
• 8TB internal SSD with user-installable expansion
• linear power supply with integrated UPS
• galvanically isolated LAN architecture
• Aurender Conductor app control

Design and performance:

The N30SA consists of two physically separate chassis connected by dedicated power and data cables. The power chassis houses the linear power supply, storage and system control, while the audio chassis contains only the signal processing and output circuitry.

This separation significantly reduces electrical interference, mechanical vibration and noise from components such as power supplies, storage drives and network inputs. The result is an extremely low noise floor and a highly stable, coherent presentation.

The 10mm thick chassis construction also provides effective EMF shielding and anti-resonance properties.

Noise and jitter reduction:

• dual-chassis design isolates sensitive audio circuitry
• AC power converted to clean DC before reaching audio stage
• galvanic isolation on LAN inputs to reduce network noise
• OCXO clock minimises jitter and timing errors
• optional external master clock input for further precision
• dedicated grounding and signal isolation techniques

This combination allows the N30SA to deliver exceptional transparency, timing accuracy and dynamic expression.

Connectivity:

• USB Audio 2.0 output
• AES/EBU output
• coaxial SPDIF output
• BNC output
• Toslink optical output
• 75Ω BNC master / word clock input
• multiple LAN ports with isolation

Storage and expansion:

• 8TB internal SSD
• additional expansion slot for increased storage
• designed for large high-resolution music libraries

Technical highlights:

• PCM upsampling up to 176.4 / 192 kHz (SPDIF outputs)
• USB output remains bit-perfect
• extremely low noise floor
• high dynamic range and timing precision
• hybrid linear power supply system with UPS protection

Display and control:

• 8.8 inch full-colour IPS LCD display
• shows album art, artist and track information
• Aurender Conductor app for full system control
• supported on iOS and Android devices

What’s included:

• Aurender N30SA dual-chassis music server
• power and data umbilical cables (0.5m and 1.5m)
• power cables
• documentation

Note:

The N30SA is designed as a reference digital transport for use with high-end external DACs. Its dual-chassis design, advanced clocking and extensive noise isolation make it suitable for systems where maximum signal purity and performance are required.
