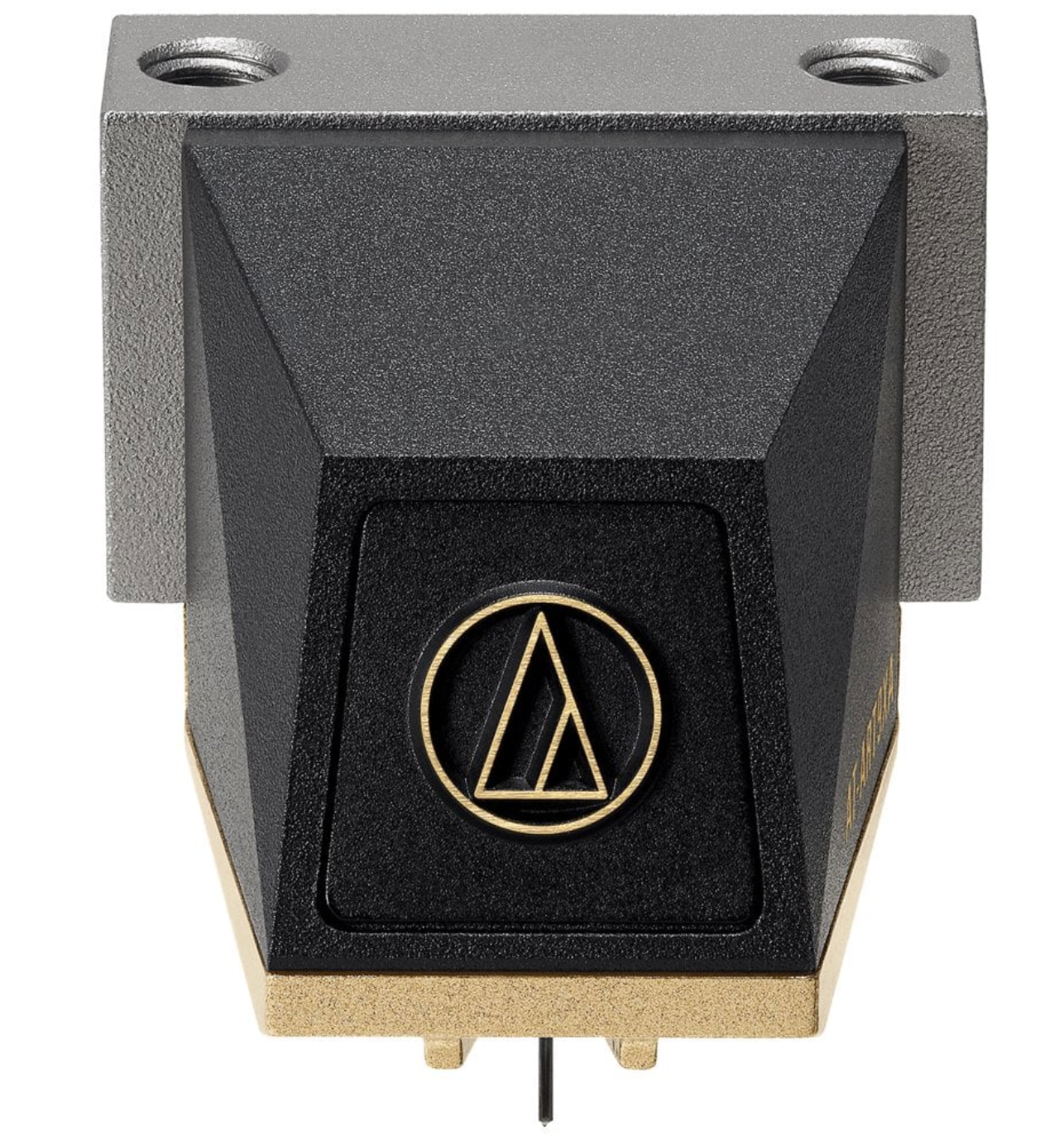

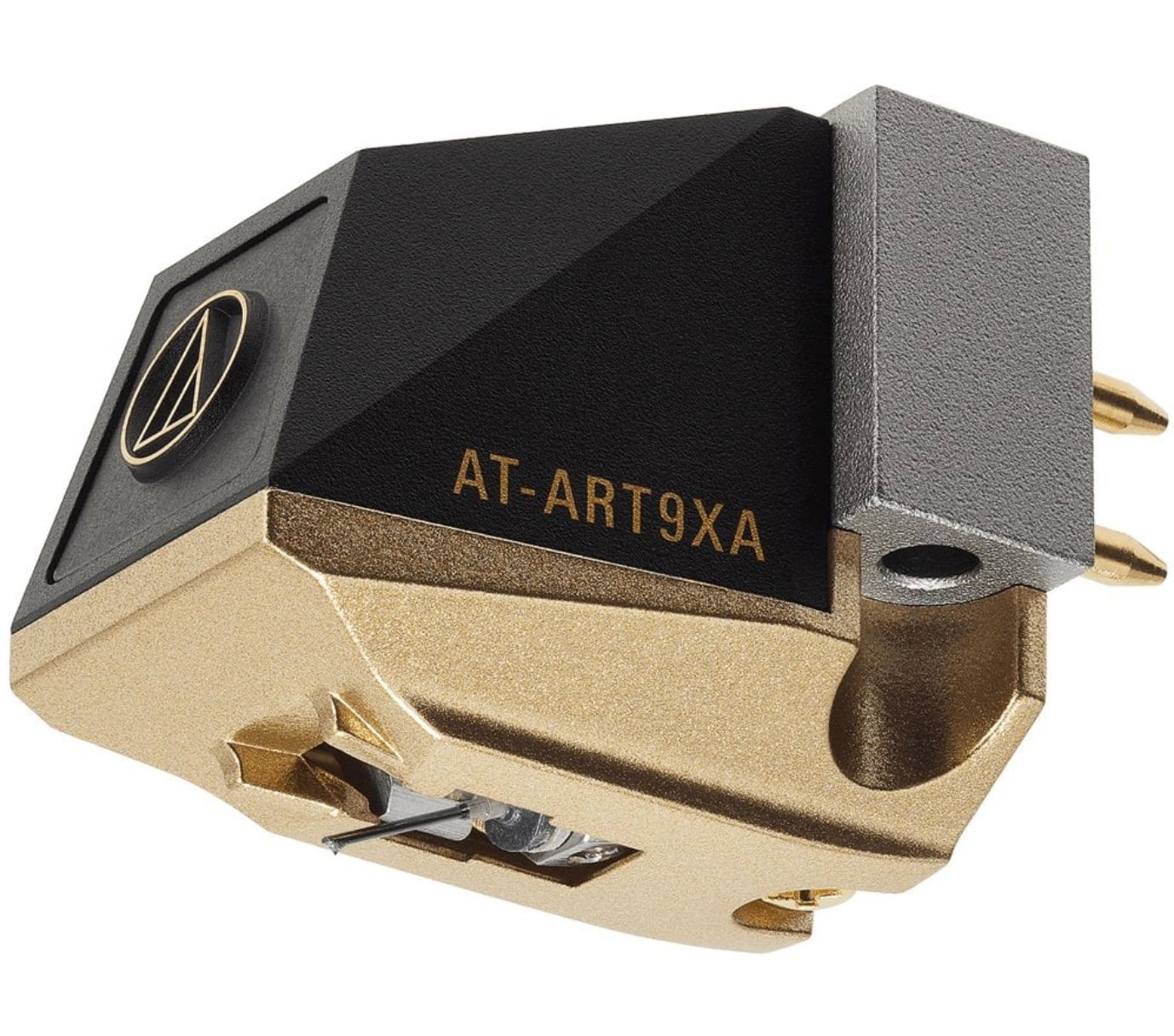

An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.
Key Features:
Non-magnetic core moving coil cartridge offers superior spatial representation
Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion
Shibata stylus ensures accurate high and mid-low range reproduction, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics
Neodymium magnet and permendur yoke significantly increase magnetic energy
Redesigned coil armature provides an output voltage of 0.2 mV (1 kHz, 5 cm/sec)
PCOCC coils ensure high-fidelity transmission
Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability
Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance
Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm
